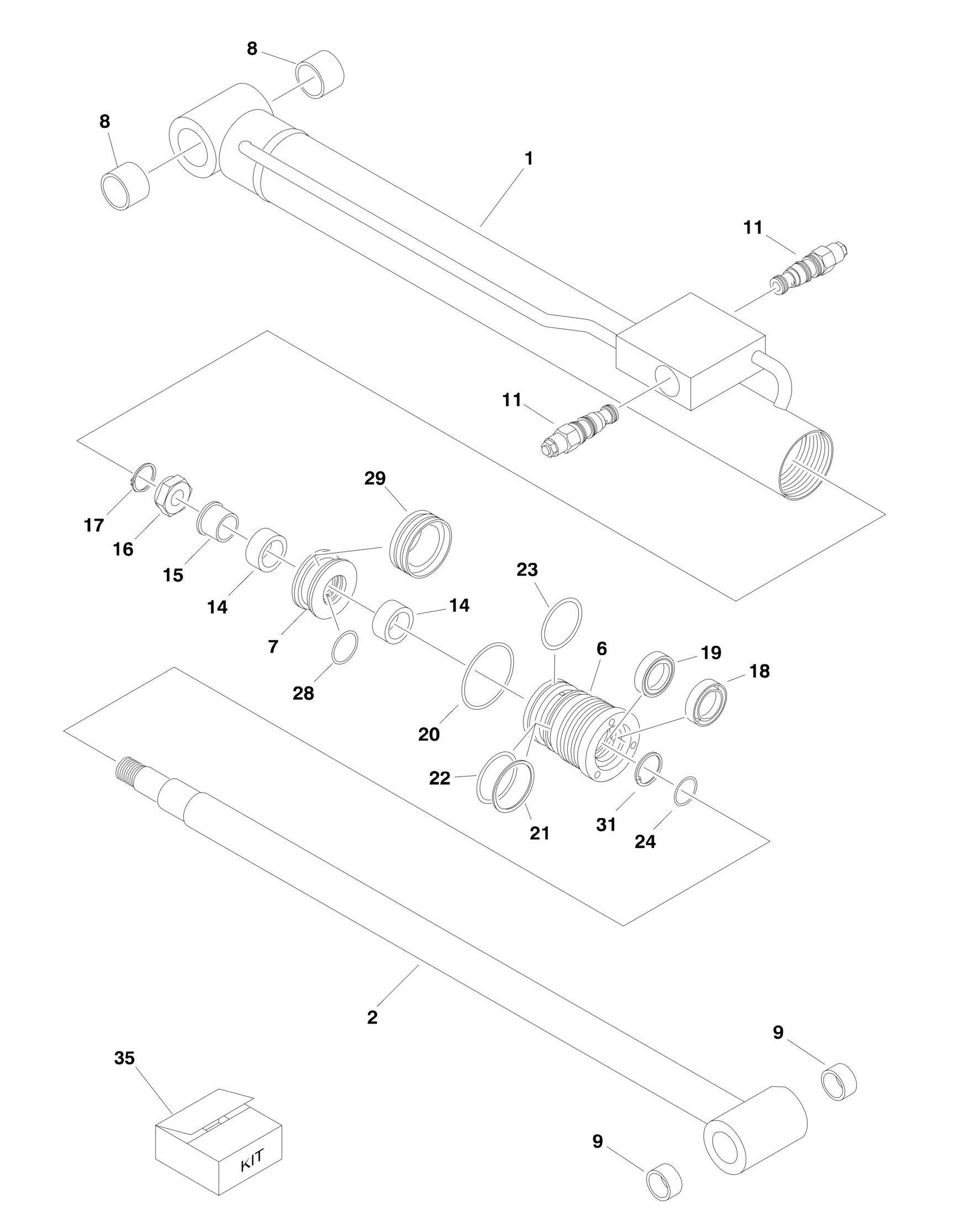

FIGURE 5-17. BELGIUM AND ROMANIAN BUILT MACHINES/LIFT (JIB) CYLINDER (450AJ SERIES II ONLY
ITEM PART NUMBER QTY DESCRIPTION REV
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684242 Ref JIB LIFT CYLINDER ASSEMBLY (450AJ SERIES II ONLY) B 1 7026093 1 Barrel 2 7026094 1 Rod 6 7026088 NLA Head (Use p/n 70005581) 7 7026089 1 Piston 8 0961951 2 Bearing 9 0961947 2 Bearing 11 7026096 2 Cartridge, Valve 11 2900770 2 Seal Kit - 7026096 Valve (1 Per Cartridge) 14 7026090 2 Bushing 15 7026091 1 Sleeve 16 7026092 1 Nut 17 70002223 1 Ring, Retaining 18 7026095 1 Wiper 19 7026095 1 Seal 20 7026095 1 O-Ring 21 7026095 1 Ring, Back-up 22 7026095 1 O-Ring 23 7026095 1 O-Ring 24 7026095 1 O-Ring 28 7026095 1 O-Ring 29 7026095 1 Seal 31 70002220 1 Ring, Retaining 35 7026095 1 Seal Kit, Cylinder (Includes Items 18-24, 28 & 29)
