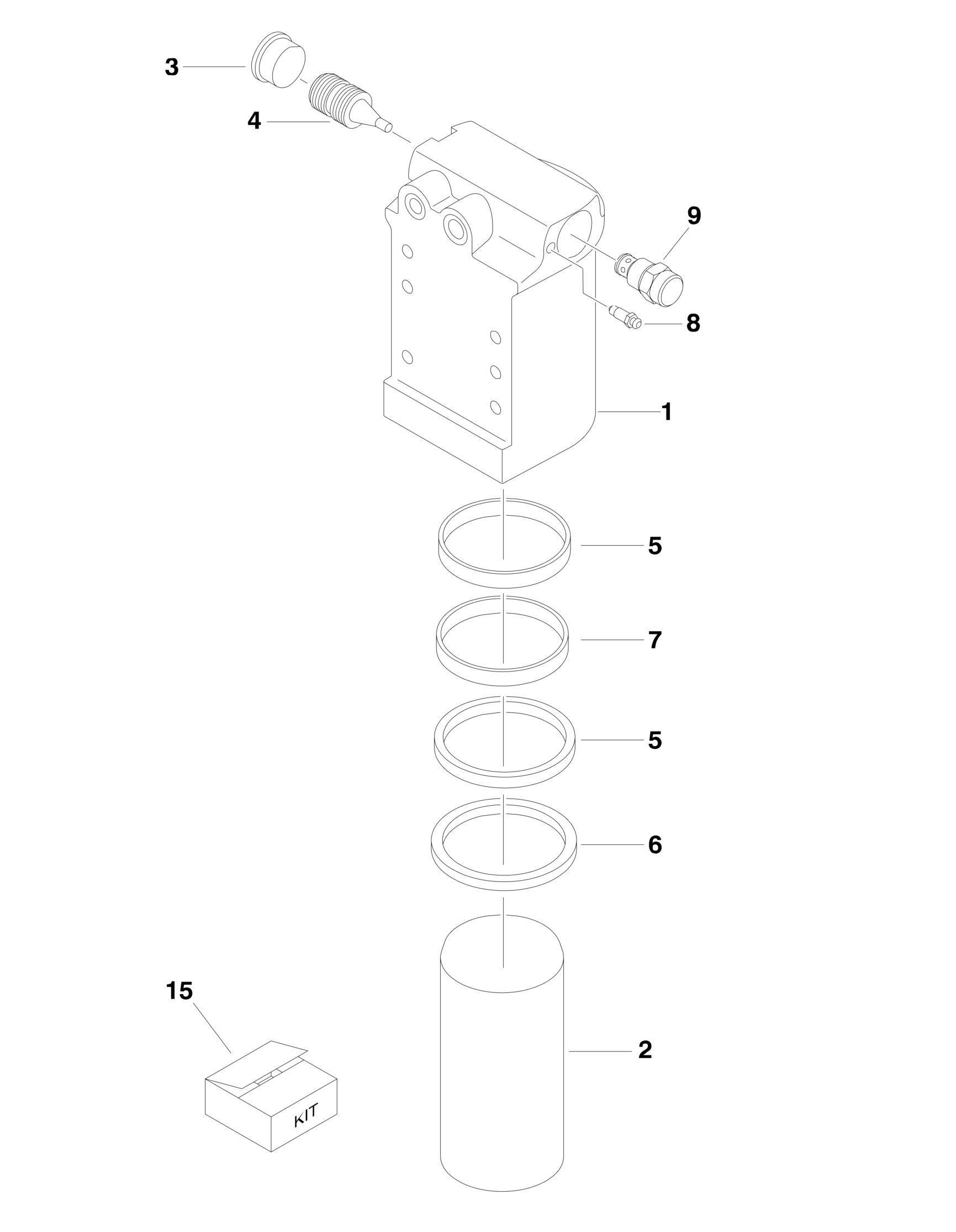

FIGURE 5-16. BELGIUM AND ROMANIAN BUILT MACHINES/AXLE LOCKOUT CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684465 Ref AXLE LOCKOUT CYLINDER ASSEMBLY 1 0370026 1 Barrel 2 1684290 1 Rod 3 2220890 1 Plug 4 3480288 1 Piston, Pilot 5 2902266 2 Ring, Wear 6 2902266 1 Wiper 7 2902266 1 Seal, Rod 8 4640858 1 Bleeder 9 4641390 1 Cartridge, Valve 9 7017496 1 Seal Kit 15 2902266 1 Seal Kit, Cylinder (Includes Items 5-7)
REV
C
