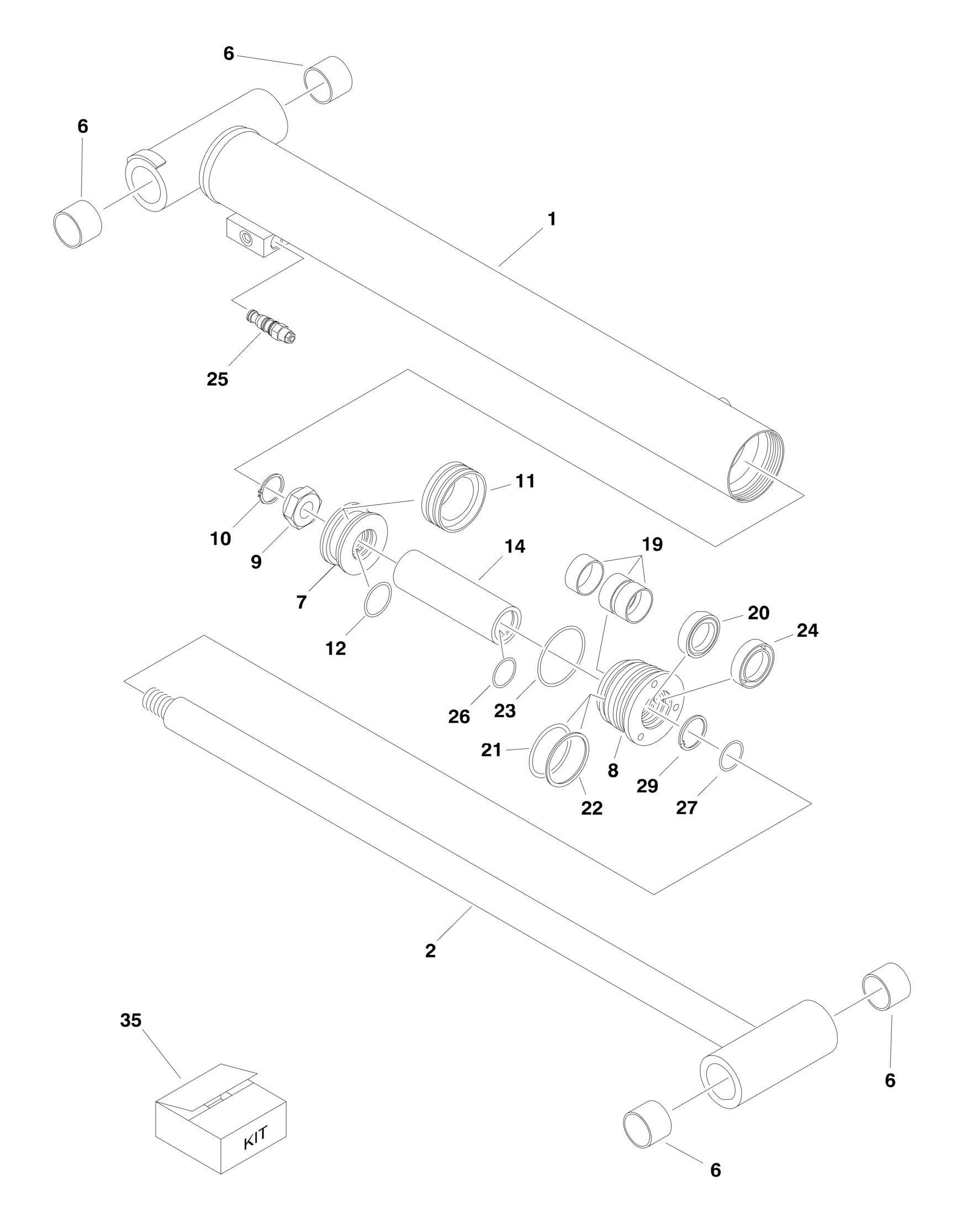

FIGURE 5-18. BELGIUM AND ROMANIAN BUILT MACHINES/LIFT (MAIN BOOM) CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684244 Ref MAIN LIFT CYLINDER ASSEMBLY 1 7026101 1 Barrel 2 7026102 1 Rod 6 0961950 4 Bearing 7 7026097 1 Piston 8 7026098 1 Head 9 7026099 1 Nut 10 70002224 1 Ring, Retaining 11 70002225 1 Seal 12 70002225 1 O-Ring 14 See Note 1 Spacer (Note: Not Available for Purchase) 19 70002225 3 Ring, Wear 20 70002225 1 Seal 21 70002225 1 O-Ring 22 70002225 1 Ring, Back-up 23 70002225 1 O-Ring 24 70002225 1 Wiper 25 4640936 1 Cartridge, Valve 25 2900770 1 Seal Kit - 4640936 Valve 26 70002225 1 O-Ring 27 70002225 1 O-Ring 29 70002219 1 Ring, Retaining 35 70002225 1 Seal Kit, Cylinder (Includes Items 11, 12, 19-24, 26 & 27)
