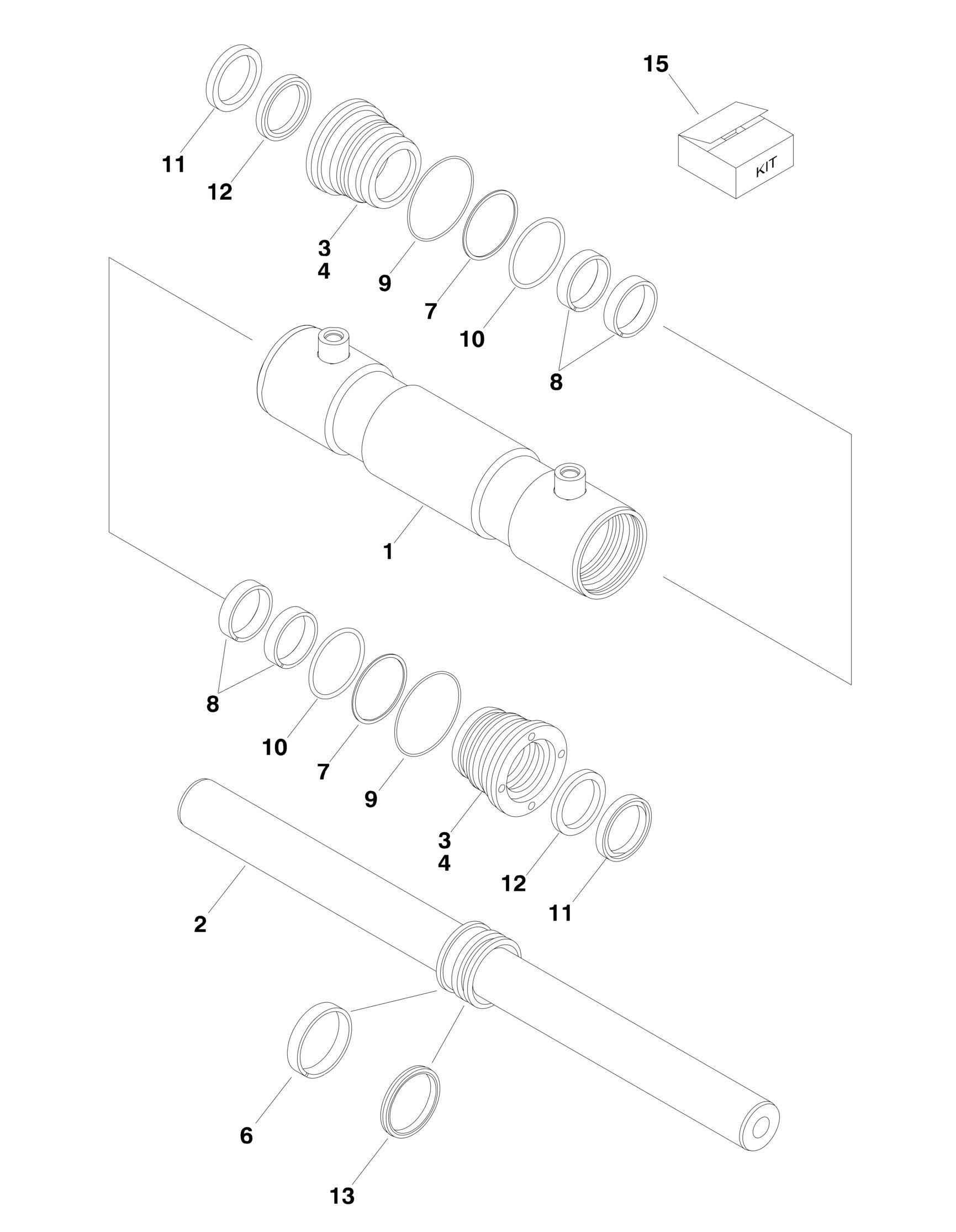

FIGURE 5-14. USA BUILT MACHINES/STEER CYLINDER
FIGURE 5-14. USA BUILT MACHINES/STEER CYLINDER
FIGURE 5-14. USA BUILT MACHINES/STEER CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684412 Ref STEER CYLINDER ASSEMBLY 1 0370024 1 Barrel Weldment 2 1683658 1 Rod Weldment 3 2570008 2 Head, Cylinder 4 3020043 1 Lube, Anti-Seize 6 2902409 1 Ring, Wear 7 2902409 2 Ring, Back-up 8 2902409 4 Ring, Wear 9 2902409 2 O-Ring 10 2902409 2 O-Ring 11 2902409 2 Wiper 12 2902409 2 Seal 13 2902409 1 T-Seal 15 2902409 1 Seal Kit, Cylinder (Includes Items 6-13)
