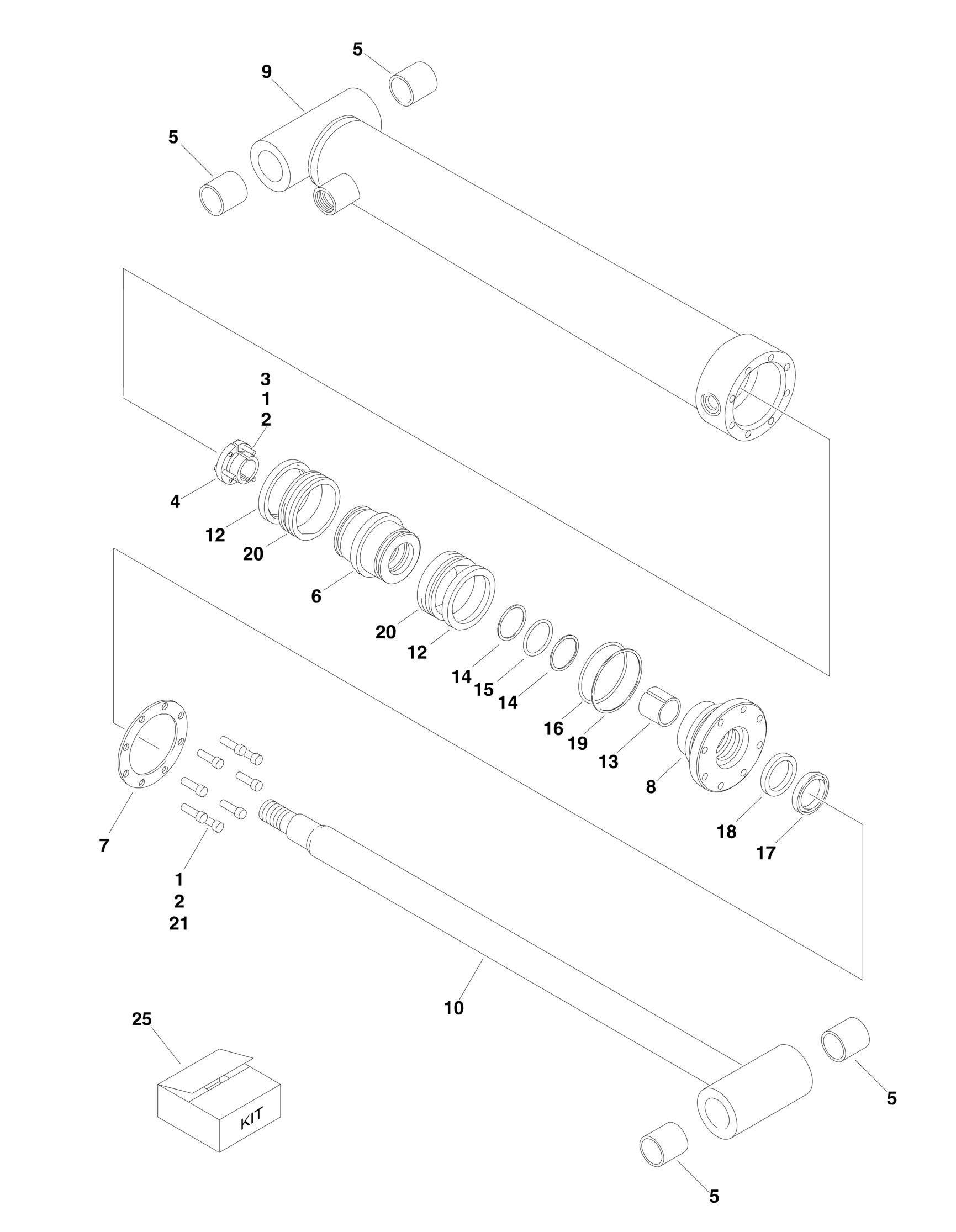

FIGURE 5-12. USA BUILT MACHINES/MASTER CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT

FIGURE 5-12. USA BUILT MACHINES/MASTER CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT)

FIGURE 5-12. USA BUILT MACHINES/MASTER CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Note: Original Equipment Cylinder may have been replaced

with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1683773 Ref MASTER CYLINDER ASSEMBLY (450AJ SERIES II) (ORIGINAL

EQUIPMENT)

1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 3931016 3 Bolt Socket Head #10-24NC x 1in 4 0962185 1 Bushing, Tapered 5 0961951 4 Bushing, Garmax 6 3480247 1 Piston 7 3760368 1 Washer, Ring 8 1683052 1 Head 9 1683756 1 Barrel 10 1683772 1 Rod 12 2901776 2 Ring, Lock 13 2901776 1 Ring, Wear 14 2901776 2 Ring, Back-Up 15 2901776 1 O-Ring 16 2901776 1 O-Ring 17 2901776 1 Wiper 18 2901776 1 Seal 19 2901776 1 Ring, Back-Up 20 2901776 2 Seal 21 3931516 8 Bolt Socket Head 5/16in-18NC x 1in 25 2901776 1 Seal Kit, Cylinder (Includes Items 12-20)

REV

F
