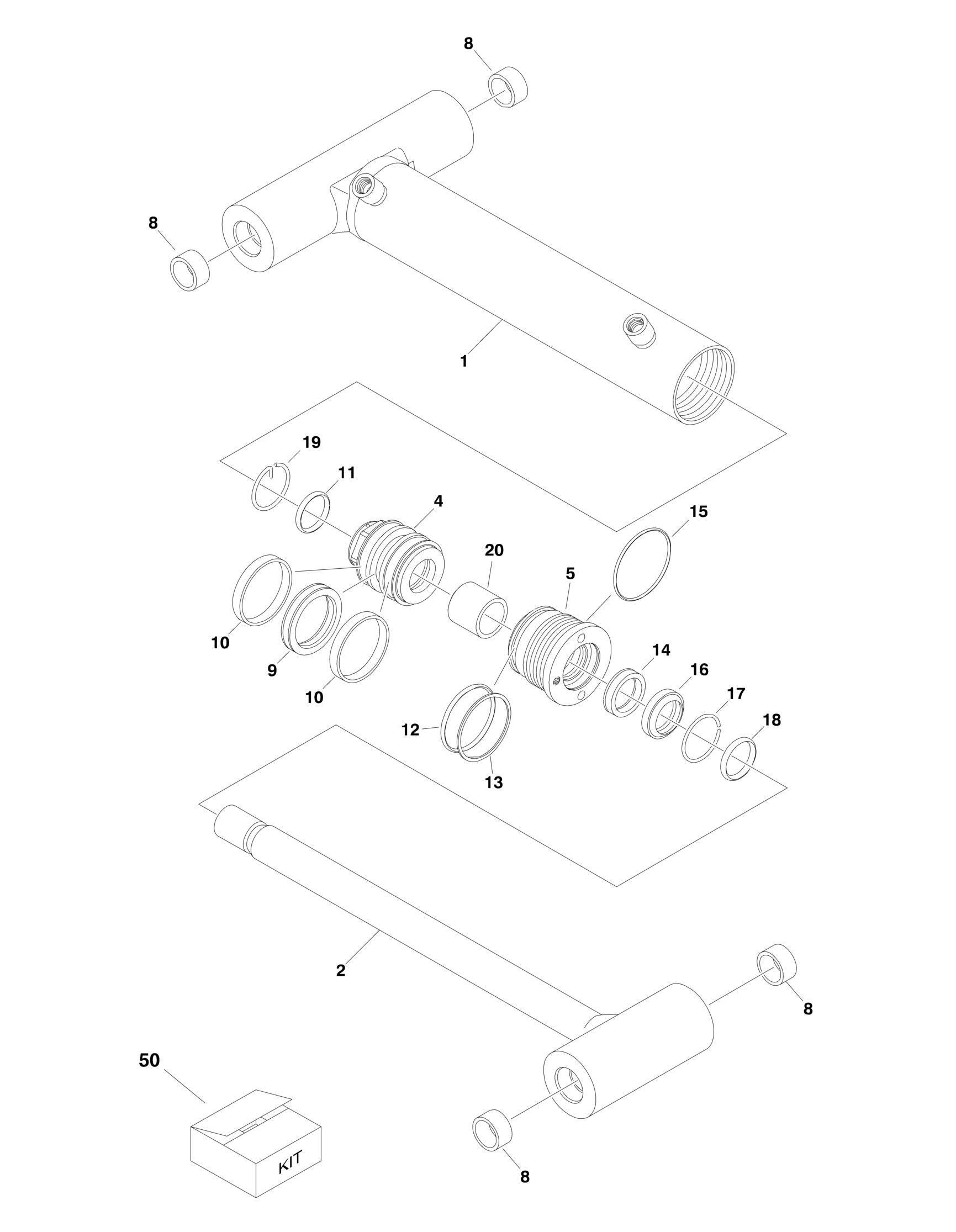

FIGURE 5-11. USA BUILT MACHINES/MASTER CYLINDER (450A SERIES II) (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001140276 Ref MASTER CYLINDER ASSEMBLY (450A SERIES II) (SERVICE
REPLACEMENT)
1 70003831 1 Barrel 2 70003832 1 Rod 4 70003810 1 Piston 5 70003809 1 Head 8 0961947 4 Bushing 9 70003814 1 Seal 10 70003814 2 Ring, Wear 11 70003814 1 O-Ring 12 70003814 1 O-Ring 13 70003814 1 Ring, Back-up 14 70003814 1 Seal 15 70003814 1 O-Ring 16 70003814 1 Wiper 17 70002217 1 Ring, Retaining 18 7026084 1 O-Ring 19 70002216 1 Retainer 20 70003830 1 Spacer 50 70003814 1 Seal Kit (Includes Items 9-16)
REV
A
