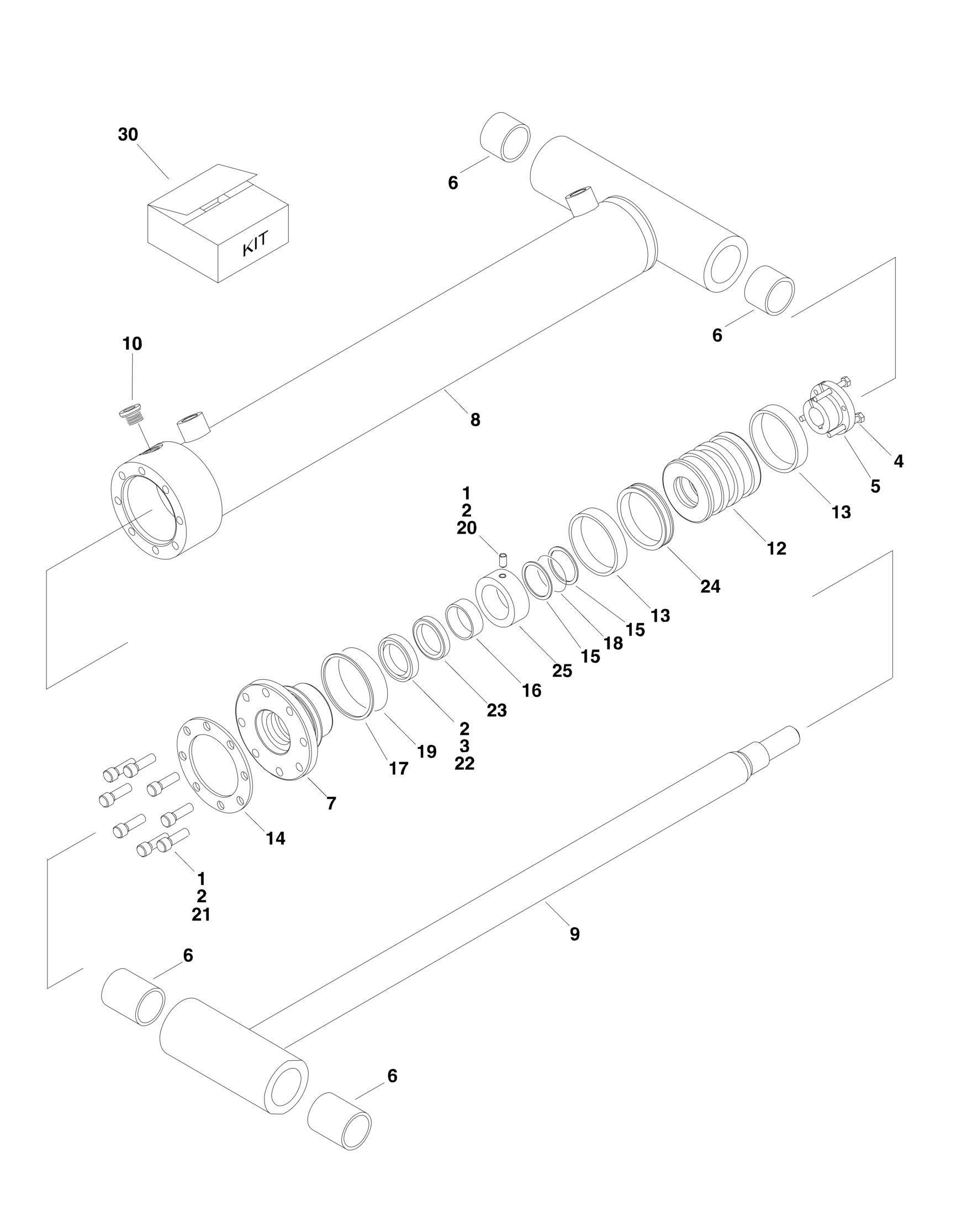

FIGURE 5-10. USA BUILT MACHINES/MASTER CYLINDER (450A SERIES II) (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684170 Ref MASTER CYLINDER ASSEMBLY (450A SERIES II) (ORIGINAL
EQUIPMENT)
1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 0100035 AR Loctite RC 609 4 0630534 3 Capscrew #10-24NC x 1in 5 0962185 1 Bushing, Tapered 6 0961947 4 Bushing, Garmax 7 1683050 1 Head 8 1684171 1 Barrel Weldment 9 1684172 1 Rod Weldment 10 2220885 1 Plug, O-Ring 12 3480232 1 Piston 13 2901549 2 Ring, Wear 14 3760367 1 Ring, Washer 15 2901549 2 Ring, Back-up 16 2901549 1 Ring, Wear 17 2901549 1 Ring, Back-up 18 2901549 1 O-Ring 19 2901549 1 O-Ring 20 3900139 1 Setscrew 1/4in-20NC x 1/2in 21 3931516 8 Capscrew 5/16in-18NC x 1in 22 2901549 1 Wiper 23 2901549 1 Seal 24 2901549 1 T-Seal 25 4568068 1 Tube, Spacer 30 2901549 1 Seal Kit, Cylinder (Includes Items 13,15-19 & 22-24)
REV
A
