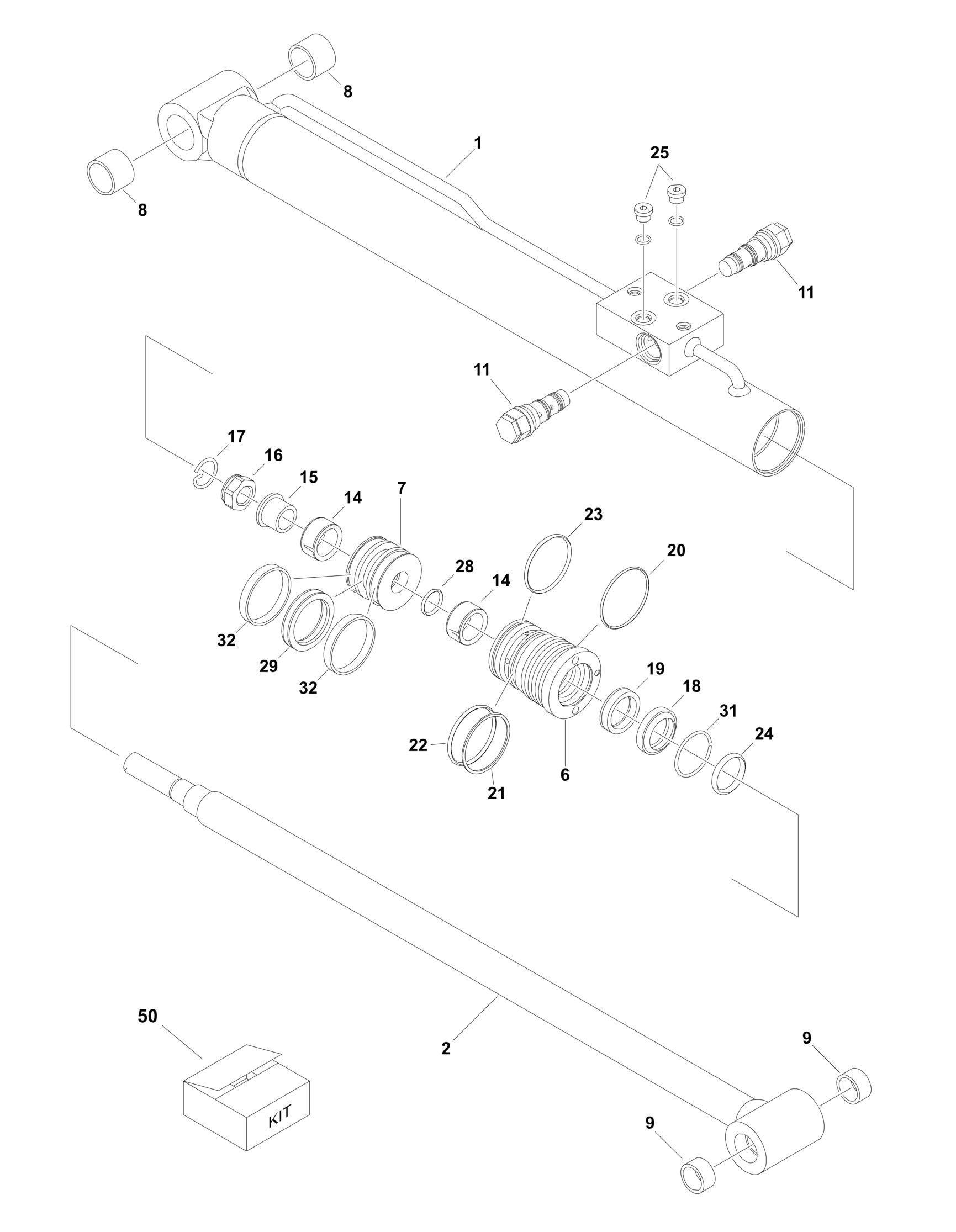

FIGURE 5-7. USA BUILT MACHINES/LIFT (JIB) CYLINDER (450AJ SERIES II ONLY) (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001140282 Ref LIFT (JIB) CYLINDER ASSEMBLY (450AJ SERIES II ONLY
(SERVICE REPLACEMENT)
1 70003834 1 Barrel 2 70003835 1 Rod 6 7026088 1 Head 7 70003833 1 Piston 8 0961951 2 Bushing 9 0961947 2 Bushing 11 464509 2 Cartridge, Counterbalance Valve 11 2900792 2 Seal Kit - 464509 Valve 14 7026090 2 Bushing 15 7026091 1 Sleeve 16 7026092 1 Nut 17 70002223 1 Retainer 18 70003836 1 Wiper 19 70003836 1 Seal 20 70003836 1 O-Ring 21 70003836 1 Ring, Backup 22 70003836 1 O-Ring 23 70003836 1 O-Ring 24 7026068 1 O-Ring 25 7024844 2 Plug 28 70003836 1 O-Ring 29 70003836 1 Seal 31 70002220 1 Ring, Retaining 32 70003836 2 Ring, Wear 50 70003836 1 Seal Kit - 1001140282 Cylinder (Includes Items 18-23, 28, 29 & 32)
REV
A
