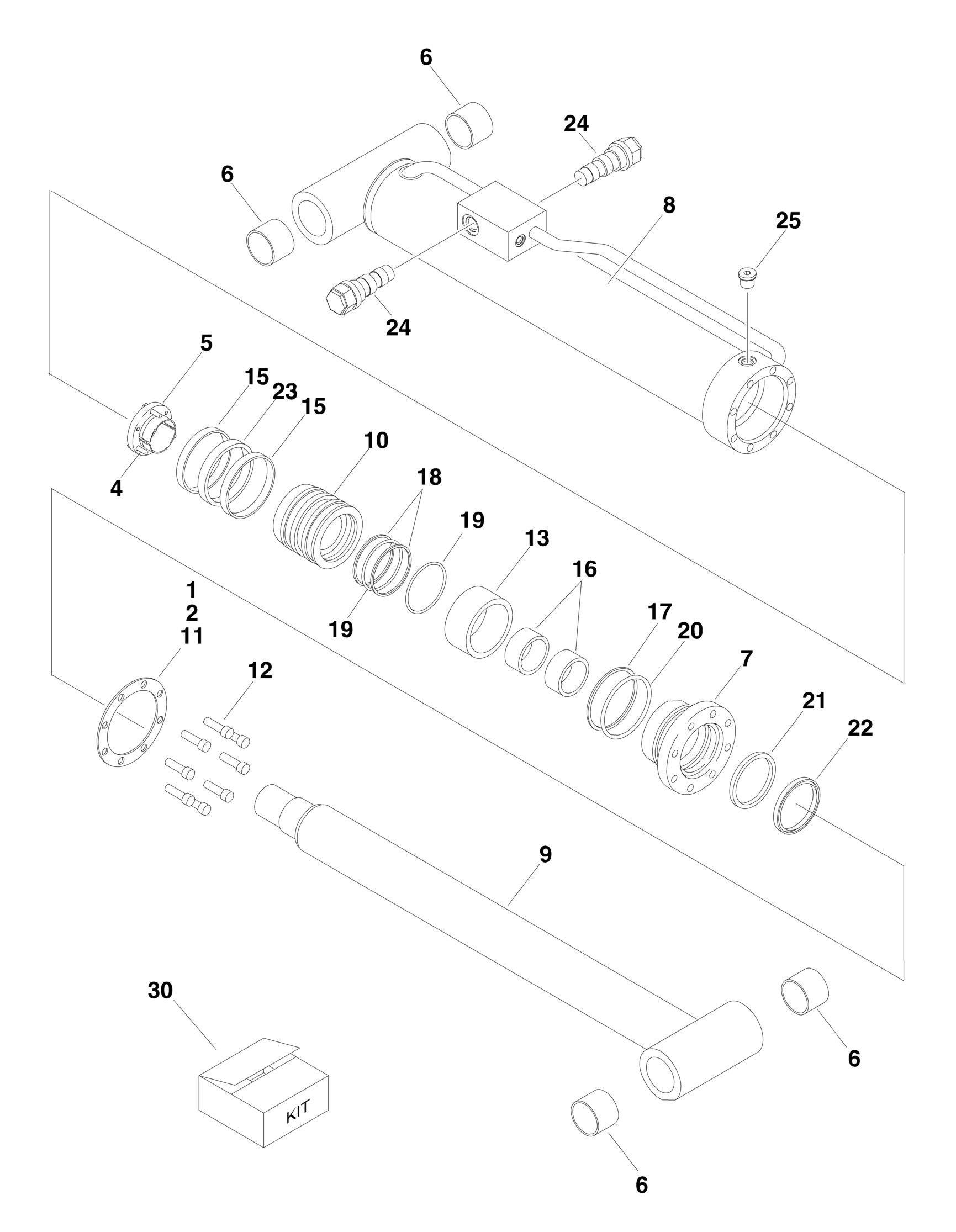

FIGURE 5-9. USA BUILT MACHINES/LIFT (TOWER BOOM) CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684070 Ref TOWER LIFT CYLINDER ASSEMBLY 1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 4 0630535 3 Capscrew 1/4in-20NC x 1-1/8in 5 0961897 1 Bushing, Tapered 6 0961950 4 Bushing 7 1683063 1 Head 8 1684067 1 Barrel Weldment 9 1684069 1 Rod Weldment 10 3480253 1 Piston 11 3760371 1 Washer, Ring 12 3931824 8 Bolt, Socket Head 1/2in-13NC x 1-1/2in 13 4100099 1 Spacer, Tube 15 2902044 2 Ring, Wear 16 2902044 2 Ring, Wear 17 2902044 1 Ring, Back-up 18 2902044 2 Ring, Back-up 19 2902044 2 O-Ring 20 2902044 1 O-Ring 21 2902044 1 Seal 22 2902044 1 Wiper 23 2902044 1 T-Seal 24 4640509 2 Cartridge, Valve (Counterbalance Non-Vented) 24 2900792 2 Seal Kit - 4640509 Valve 25 2220886 1 Plug, O-Ring 30 2902044 1 Seal Kit, Cylinder (Includes Items 15-23)
REV
G
