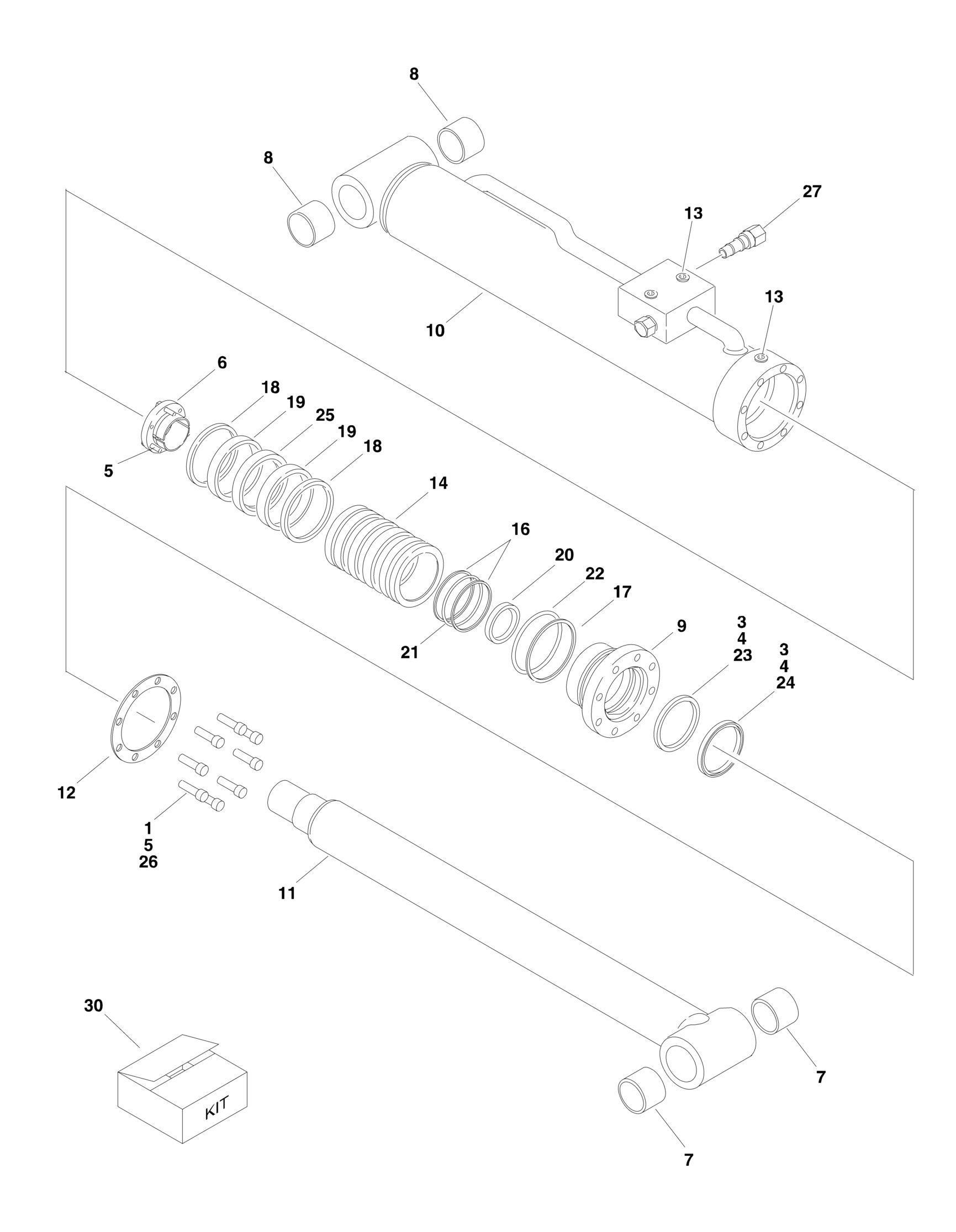

FIGURE 5-6. USA BUILT MACHINES/LIFT (JIB) CYLINDER (450AJ SERIES II ONLY) (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1683959 Ref JIB LIFT CYLINDER ASSEMBLY (450AJ SERIES II ONLY)
(ORIGINAL EQUIPMENT)
1 0100011 AR Compound, Locking 3 0100038 AR Primer, Locking 4 0100063 AR Loctite #RC609 5 0630534 3 Bolt #10-24NC x 1in 6 0961893 1 Bushing, Tapered 7 0961947 2 Bushing 8 0961951 2 Bushing 9 1683051 1 Head 10 1683960 1 Barrel Weldment 11 1683961 1 Rod Weldment 12 3760367 1 Washer, Ring 13 2220885 3 Plug, O-Ring 14 3480249 1 Piston 16 2901810 2 Ring, Back-up 17 2901810 1 Ring, Back-up 18 2901810 2 Seal 19 2901810 2 Ring, Wear 20 2901810 1 Ring, Wear 21 2901810 1 O-Ring 22 2901810 1 O-Ring 23 2901810 1 Seal 24 2901810 1 Wiper 25 2901810 1 T-Seal 26 3931516 8 Bolt, Socket Head 5/16in-18NC x 2in 27 4640509 2 Cartridge, Valve (Counterbalance Non-Vented) 27 2900792 2 Seal Kit - 4640509 Valve 30 2901810 1 Seal Kit, Cylinder (Includes Items 16-25)
REV
D
