FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II) (ORIGINAL EQUIPMENT FIGURE 5-3. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450A SERIES II) (SERVICE

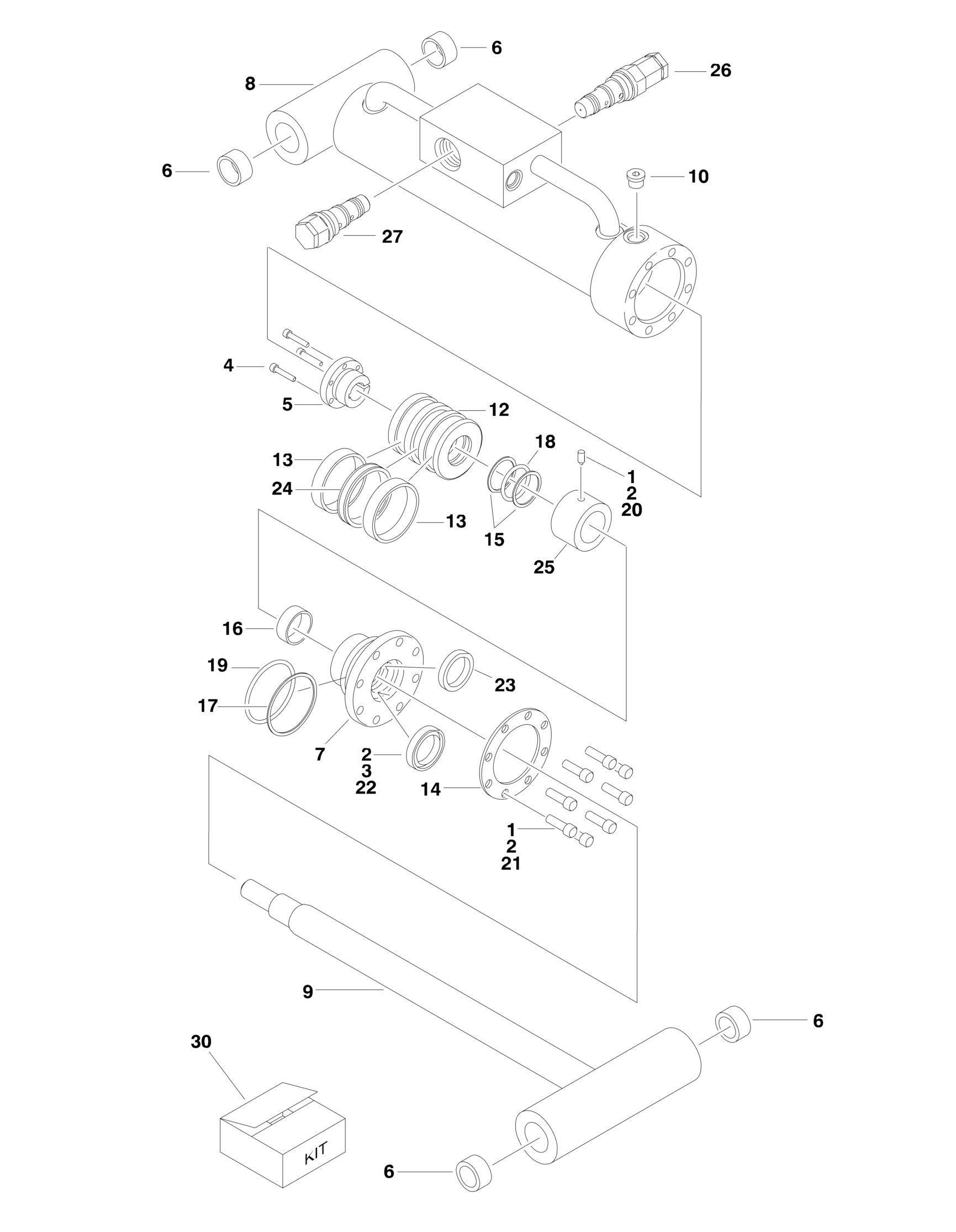

FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II) (ORIGINAL EQUIPMENT)

FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II) (ORIGINAL EQUIPMENT)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Note: Original Equipment Cylinder may have been replaced

with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684165 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450A

SERIES II) (ORIGINAL EQUIPMENT)

1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 0100063 AR Loctite RC 609 (SN 0300124000 through 0300133424) 4 0630534 3 Capscrew #10-24NC x 1in 5 0962185 1 Bushing, Tapered 6 0961947 4 Bushing, Garmax 7 1683050 1 Head 8 1684166 1 Barrel Weldment 9 1684167 1 Rod Weldment 10 2220885 1 Plug, O-Ring 12 3480232 1 Piston 13 2901549 2 Ring, Wear 14 3760367 1 Ring, Washer 15 2901549 2 Ring, Back-up 16 2901549 1 Ring, Wear 17 2901549 1 Ring, Back-up 18 2901549 1 O-Ring 19 2901549 1 O-Ring 20 3900139 1 Setscrew 1/4in-20NC x 1/2in 21 3931516 8 Capscrew 5/16in-18NC x 1in 22 2901549 1 Wiper 23 2901549 1 Seal 24 2901549 1 T-Seal 25 4568068 1 Tube, Spacer 26 4640932 1 Cartridge, Valve (Counterbalance Vented) 26 7011112 1 Seal Kit - 4640932 Valve 27 4641086 1 Cartridge, Valve (Counterbalance Non-Vented) 27 2900792 1 Seal Kit - 4641086 Valve 30 2901549 1 Seal Kit, Cylinder (Includes Items 13,15-19 & 22-24)

REV

C
