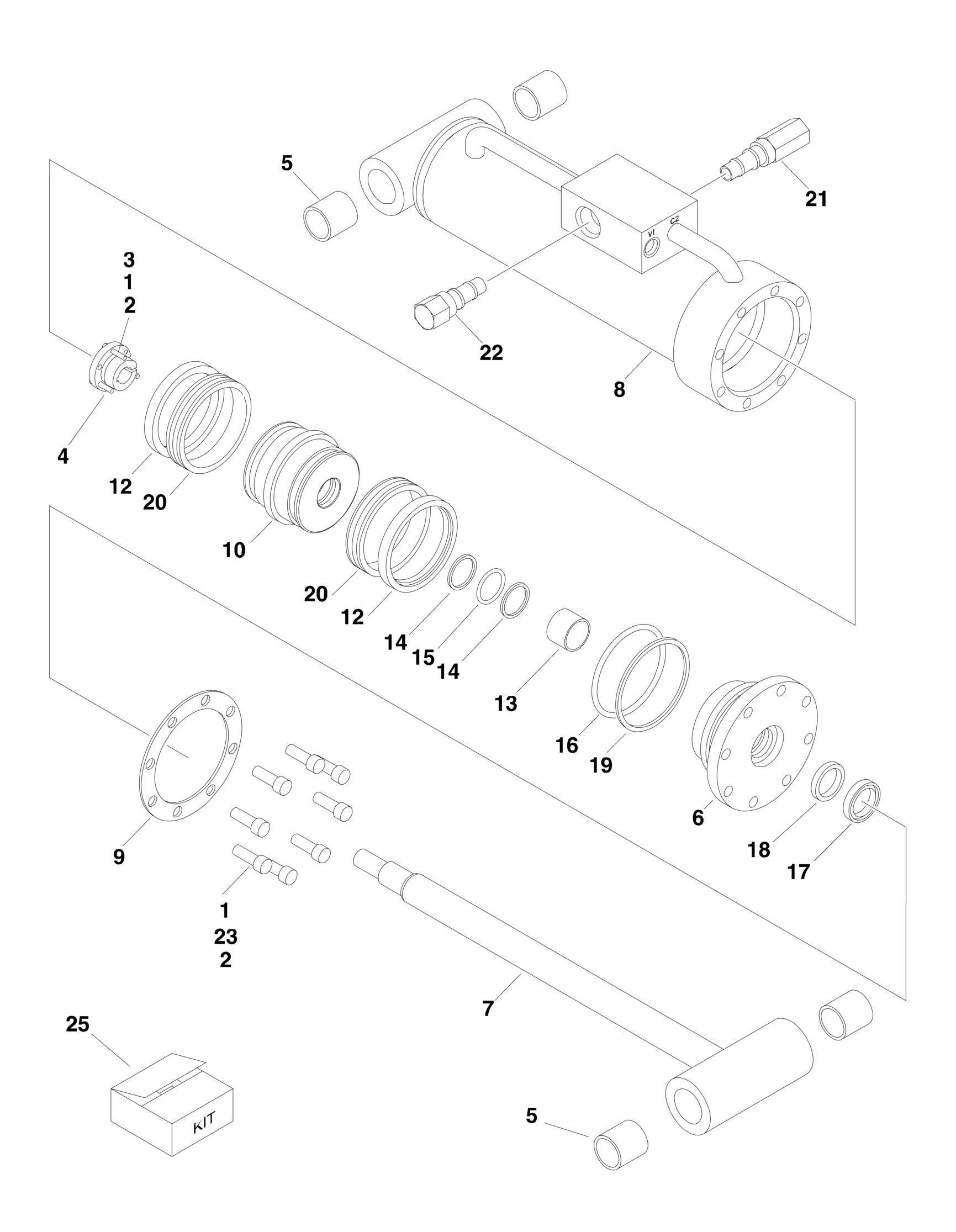

FIGURE 5-4. USA BUILT MACHINES/LEVEL (PLATFORM) CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT

FIGURE 5-4. USA BUILT MACHINES/LEVEL (PLATFORM) CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT)

FIGURE 5-4. USA BUILT MACHINES/LEVEL (PLATFORM) CYLINDER (450AJ SERIES II) (ORIGINAL EQUIPMENT)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Note: Original Equipment Cylinder may have been replaced

with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1683760 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450AJ

SERIES II) (ORIGINAL EQUIPMENT)

1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 0630534 3 Bolt, Socket Head #10-24NC x 1in 4 0962185 1 Tapered Bushing 5 0961951 4 Bushing, Garmax 6 1683052 1 Head 7 1683759 1 Rod 8 1683761 1 Barrel 9 3760368 1 Washer, Ring 10 3480247 1 Piston 12 2901776 2 Ring, Lock 13 2901776 1 Ring, Wear 14 2901776 2 Ring, Back-Up 15 2901776 1 O-Ring 16 2901776 1 O-Ring 17 2901776 1 Wiper 18 2901776 1 Seal 19 2901776 1 Ring, Back-Up 20 2901776 2 Seal 21 4640932 1 Cartridge, Valve (Counterbalance Vented) 21 7011112 1 Seal Kit - 4640932 Valve 22 4641086 1 Cartridge, Valve (Counterbalance Nonvented) 22 2900792 1 Seal Kit - 4641086 Valve 23 3931516 8 Bolt, Socket Head 5/16in-18NC x 1in 25 2901776 1 Seal Kit, Cylinder (Includes Items 12-20)

REV

G
