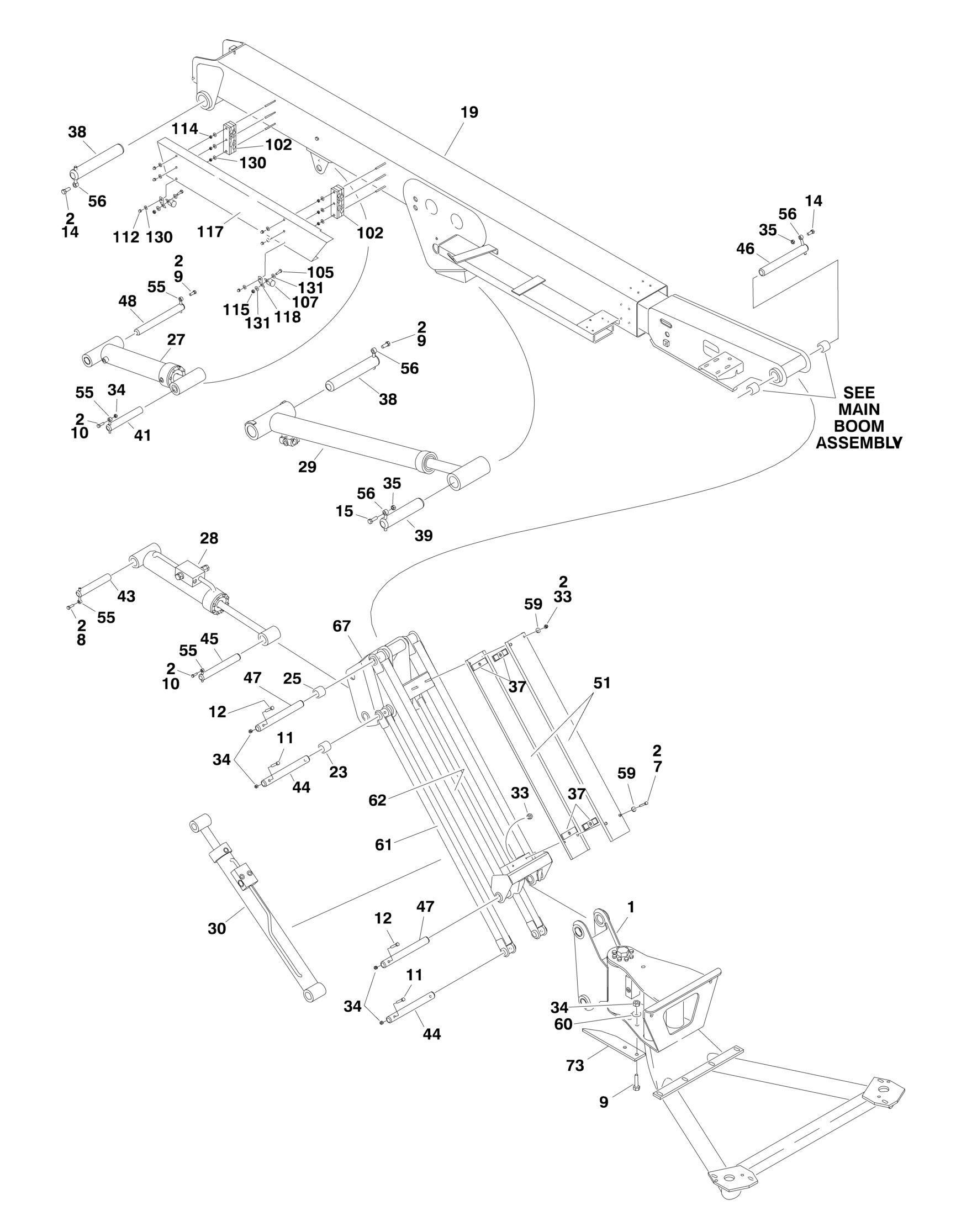

FIGURE 3-4. MAIN BOOM INSTALLATION - 450AJ SERIES II (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref BOOM AND CYLINDERS INSTALLATION 0270839 Ref Boom and Cylinders Installation 450AJ Series II 0275125 Ref Boom and Cylinders Installation 450AJ Series II (Arctic
Package)
1 Ref Rotator Assembly Options (See ROTATOR ASSEMBLIES for Breakdown): 1 0060050 1 Without Arctic Package 1 0060096 1 With Arctic Package 2 0100011 AR Compound, Locking 7 0641518 2 Bolt 516in-18NC x 2-1/4in 8 0641607 1 Bolt 3/8in-16NC x 7/8in 9 0641608 3 Bolt 3/8in-16NC x 1in 10 0641610 2 Bolt 3/8in-16NC x 1-1/4in 11 0641616 4 Bolt 3/8in-16NC x 2in 12 0641618 2 Bolt 3/8in-16NC x 2-1/4in 14 0641810 AR Bolt 1/2in-13NC x 1-1/4in 15 0641812 1 Bolt 1/2in-13NC x 1-1/2in 19 0801312 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY for Breakdown) 23 Ref Bushing Options: 23 0961947 2 Bushing (SN 0300124000 through 0300144007) 23 0962292 2 Bushing (SN 0300144008 through 0300160834) 25 0961951 2 Bushing 27 1683773 1 Master Cylinder Assembly (See CYLINDER SECTION for Breakdown) 28 1683760 1 Level Cylinder Assembly (See CYLINDER SECTION for Breakdown) 29 1684154 1 Main Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 30 1683959 1 Jib Lift Cylinder Assembly (Use p/n 1001140282) (See CYLINDER SECTION for Breakdown) 33 3311501 4 Locknut 5/16in-18NC 34 3311605 9 Locknut 3/8in-16NC 35 3311805 2 Locknut 1/2in-13NC 37 3340860 4 Pad, Rubber 38 3422177 2 Pin 39 3422178 1 Pin 41 3422582 1 Pin 43 3422669 1 Pin 44 3422791 2 Pin 45 3422792 1 Pin 46 3422793 1 Pin 47 3422794 2 Pin 48 3422806 1 Pin 51 3572551 2 Channel, Hose Carrier 55 3841143 4 Keeper, Pin 56 3841203 4 Keeper, Pin 59 4751500 6 Flatwasher 5/16in Regular
REV
O F
ITEM PART NUMBER QTY
DESCRIPTION
60 4751600 2 Flatwasher 3/8in Regular 61 4845927 2 Link, Jib (Lower) (Use p/n 1001094670) 62 4846278 1 Link, Jib (Upper) 67 4846356 1 Pivot, Jib 73 4220244 1 Stop 74 Ref Cable, Electrical 18/2 Options (Not Shown): 74 4922770 1 Without Arctic Package 74 4923469 1 With Arctic Package Ref BOOM CABLES AND CLAMPS INSTALLATIONS 0271122 Ref ANSI/ANSI Export /CSA Specs without SkyPower 0271206 Ref Australian/CE Specs without SkyPower 0275116 Ref Without SkyPower with Arctic Package 1001115917 Ref Without SkyPower with Communication System 0273280 Ref With SkyPower 0275786 Ref With SkyPower with Arctic Package 1001116516 Ref With SkyPower with Communication System Ref Note: For Additional Components See ELECTRICAL
SECTION
102 Ref Block, Clamp Options: 102 0561459 2 Without Arctic Package 102 1321696 2 With Arctic Package 105 0641506 2 Bolt 5/16in-18NC x 3/4in (With SkyPower Only) 107 1320202 2 Clamp (With SkyPower Only) 112 3300151 6 Nut, Acorn 1/4in-20NC 114 3311401 6 Nut 1/4in-20NC 115 3311505 2 Locknut 5/16in-18NC (With SkyPower Only) 117 3571462 1 Shield 118 3574532 2 Plate, Clamp Mounting (With SkyPower Only) 130 4751400 12 Flatwasher 1/4in Regular 131 4751500 4 Flatwasher 5/16in Regular (With SkyPower Only) 134 Ref Harness, Main Boom Options (Not Shown - See ELECTRICAL SECTION): 134 4922532 1 Without Arctic Package 134 4923459 1 With Arctic Package 135 Ref Cable, Electrical (Not Shown - See ELECTRICAL SECTION) 135 1060988 1 Without SkyPower (12/3 AC Power Cable) 135 4923481 1 With Arctic Package (12/3 AC Power Cable) 135 4922857 1 With SkyPower (8/5 AC Power Cable) 135 4922929 1 With Arctic Package with SkyPower(8/5 AC Power Cable) 135 4922929 1 With Communication System with SkyPower(8/5 AC Power Cable) 136 1001115916 AR Cable, Communication (with Communication System Only) (Not Shown)
REV
J J D A C C A
