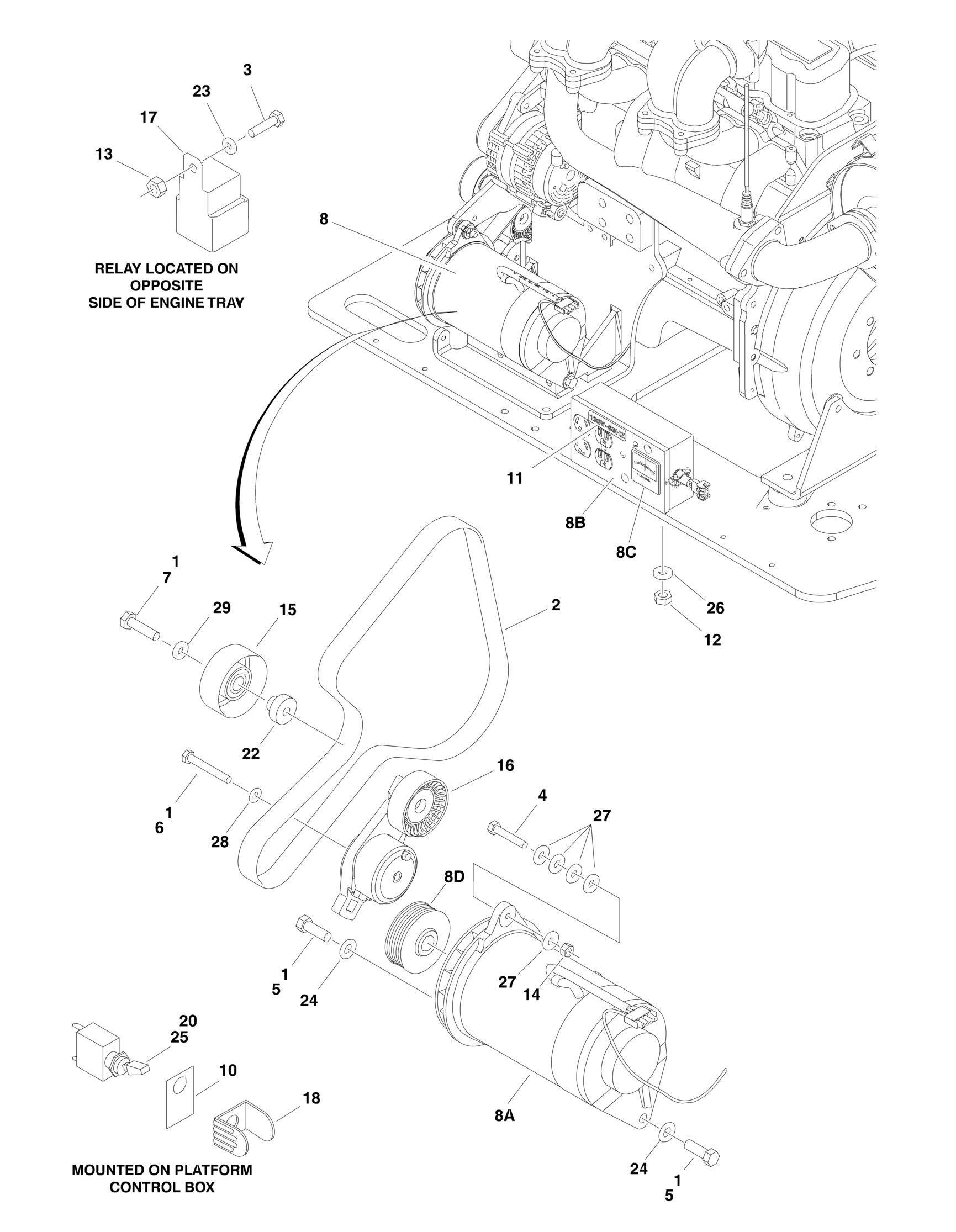

FIGURE 2-34. 2500W GENERATOR INSTALLATION - GM MACHINES (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: No Romanian Built Machines were built with GM
Engines
Ref GENERATOR INSTALLATION OPTIONS: 0275039 Ref 110V Generator 1 0100011 AR Compound, Locking 2 0480142 1 V-Belt 3 0641405 1 Bolt 1/4in-20NC x 5/8in 4 0641510 1 Bolt 5/16in-18NC x 1-1/4in 5 0641710 2 Bolt 7/16in-14NC x 1-1/4in 6 0700820 1 Bolt M8 x 60mm 7 0701016 1 Bolt M10 x 340mm 8 2460051 1 110V/60Hz Generator and Control Box Assembly 8A 7012558 1 110V/60Hz Replacement Generator Ref Note: All Replacement Generators come standard with P/N
3580134 Pulley. This Pulley may not be correct for all applications. Refer to Pulley options below.
8A 7026199 1 Armature with Slip Rings 8A 7020109 4 Holder, Brush 8A 7020108 4 Brush 8A 7012513 4 Cap, Brush Holder 8A 7012514 1 Fan 8A 7020190 2 Bearing 8A 7020110 1 End Bell, Front 8A 7020111 1 End Bell, Rear 8A 7020193 1 Cord, Power 8B 7019680 1 110V/60Hz Control Box 8B 4360542 1 Circuit Breaker 8B 4460190 1 Receptacle, Double (110V) 8B 4460027 1 Receptacle, Double Twist Lock (110V) 8B 3520028 1 Plug, Hole 8C 2420203 1 Voltmeter 8D 3580324 1 Pulley 8D 7027887 Key, Woodruff 9 2820031 AR Heatshrink (Not Shown - Located at Platform) 10 3251102 1 Nameplate - Generator 11 3251243 1 Decal 12 3311005 2 Locknut # 10-24NC 13 3311405 1 Locknut 1/4in-20NC 14 3311505 1 Locknut 5/16in-18NC 15 3580312 1 Pulley, Idler 16 3580348 1 Tensioner, Belt 17 3740080 1 Relay, Bosch 18 4060802 1 Guard, Switch 19 4240018 AR Tie-Strap (Not Shown) 20 4360336 1 Switch, Toggle 21 4460906 3 Terminal (Not Shown) 22 4568735 1 Spacer, Tube (Idler Pulley Grooved) 23 4711400 1 Flatwasher 1/4in Thin 24 4711700 2 Flatwasher 7/16in Thin 25 4740397 1 Spacer
REV
E
ITEM PART NUMBER QTY
DESCRIPTION
26 4751000 2 Flatwasher #10 Regular 27 4751500 4 Flatwasher 5/16in Regular 28 4811900 1 Flatwasher 8mm 29 4891600 1 Flatwasher 3/8in Hardened
