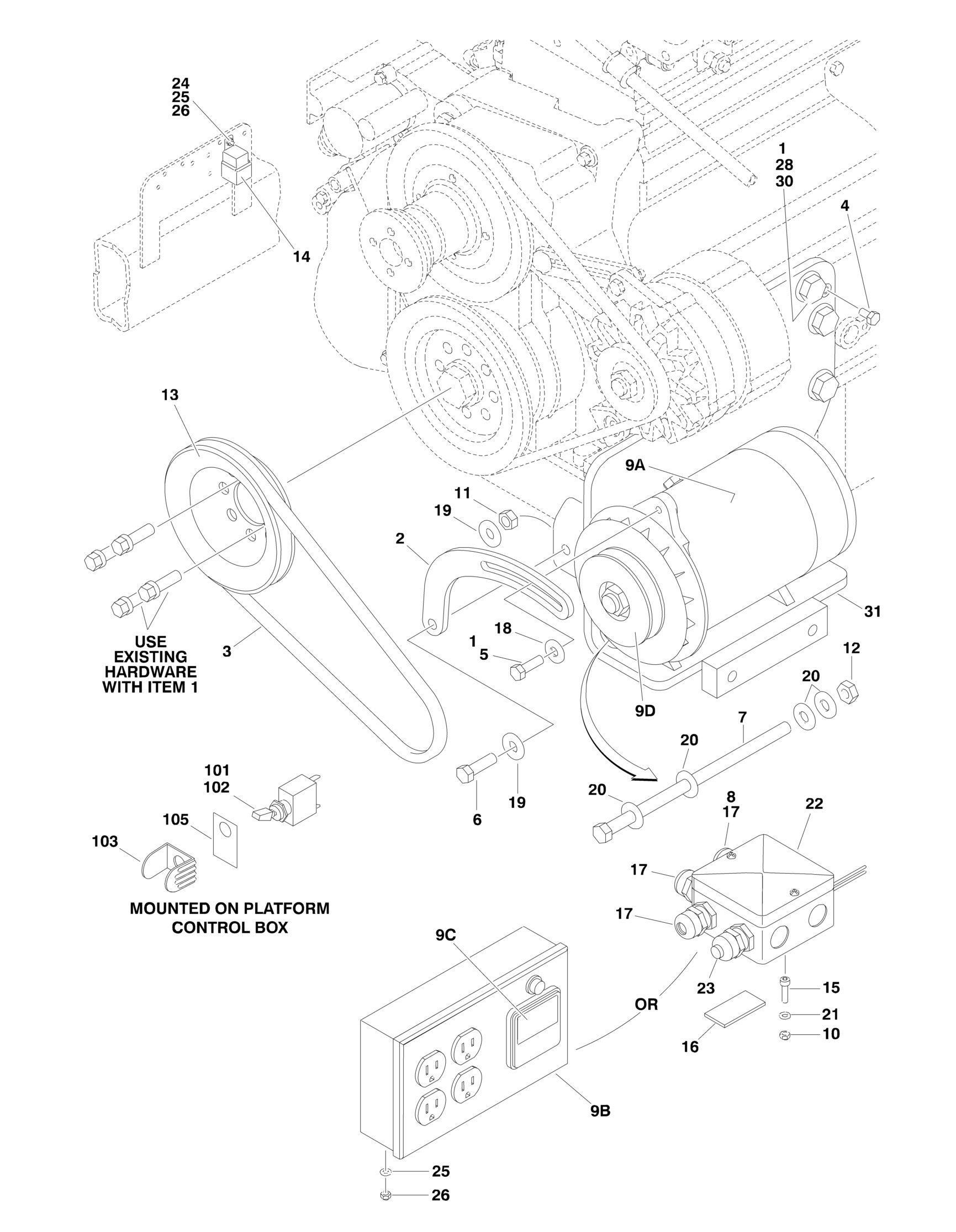

FIGURE 2-33. 2500W GENERATOR INSTALLATION - DEUTZ MACHINES (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: For Module (with/without UGM) Identification, refer to
Revision Log page A.
Ref GENERATOR INSTALLATION OPTIONS: Ref Without UGM 0274079 Ref 110V/60Hz Generator
REV
2-B
Ref 110V/50Hz Generator Options: 0274089 Ref USA Built Machines (SN 0300124000 through 0300132831) 2-B 0274089 Ref Belgium Built Machines (SN 1300006000 through
1300006617)
2-B 1001100732 Ref USA Built Machines (SN 0300132832 through 0300160834) C 1001100732 Ref Belgium Built Machines (SN 1300006618 to Present) C 1001100732 Ref Romanian Built Machines (SN E300000001 through
E300001114)
C Ref 220V/50HZ Generator 0274085 Ref USA Built Machines (SN 0300124000 through 0300132831) 2-B 0274085 Ref Belgium Built Machines (SN 1300006000 through
1300006617)
2-B 1001100749 Ref USA Built Machines (SN 0300132832 through 0300160834) B 1001100749 Ref Belgium Built Machines (SN 1300006618 to Present) B 1001100749 Ref Romanian Built Machines (SN E300000001 through
E300001114)
B Ref With UGM 1001115403 Ref 110V/60HZ Generator A 1001100732 Ref 110V/50Hz Generator C 1001100749 Ref 220V/50Hz Generator C 1 0100011 AR Compound, Locking 2 0200742 1 Arm, Adjusting 3 Ref V-Belt Options: 3 0480122 1 110V/60Hz 3 0480120 1 110V/50Hz 3 0480120 1 220V/50Hz 4 0641404 1 Bolt 1/4in-20NC x 1/2in 5 0641508 1 Bolt 5/16in-18NC x 1in 6 0641610 1 Bolt 3/8in-16NC x 1-1/4in 7 0641772 1 Bolt 7/16in-14NC x 9in 8 0962449 1 Bushing 9 Ref Generator and Control Box Assembly Options: 9 2460055 1 110V/60Hz 9 2460057 1 110V/50Hz (USA Built Machines) (SN 0300124000 through
0300132831)
9 2460057 1 110V/50Hz (Belgium Built Machines) (SN 1300006000
through 1300006617)
9 2460049 1 110V/50Hz Generator Only (USA Built Machines) (SN
0300132832 through 0300160834)
9 2460049 1 110V/50Hz Generator Only (Belgium Built Machines) (SN
1300006618 to Present)
9 2460049 1 110V/50Hz Generator Only (Romanian Built Machines) (SN
E300000001 through E300001114)
9 2460056 1 220V/50Hz (USA Built Machines) (SN 0300124000 through
0300132831)
9 2460056 1 220V/50Hz (Belgium Built Machines) (SN 1300006000
through 1300006617)
ITEM PART NUMBER QTY
DESCRIPTION
9 1001100321 1 220V/50Hz Generator Only (USA Built Machines) (SN
0300132832 through 0300160834)
9 1001100321 1 220V/50Hz Generator Only (Belgium Built Machines) (SN
1300006618 to Present)
9 1001100321 1 220V/50Hz Generator Only (Romanian Built Machines) (SN
E300000001 through E300001114)
9A Ref Generator Options: 9A 7012558 1 Generator - 110V/60Hz 9A 2460049 1 Generator - 110V/50Hz 9A 1001100321 1 Generator - 220V/50Hz Ref Note: All Replacement Generators come standard with
P/N 3580134 Pulley. This Pulley may not be correct for all applications. Refer to Pulley options below.
9A 7026199 1 110V/60Hz Armature with Slip Rings 9A 70000122 1 110V/50Hz Armature with Slip Rings 9A 70000123 1 220V/50Hz Armature with Slip Rings 9A 7020109 4 Holder, Brush 9A 7020108 4 Brush 9A 7012513 4 Cap, Brush Holder 9A 7012514 1 Fan 9A 7020190 2 Bearing 9A 7020110 1 End Bell, Front 9A 7020111 1 End Bell, Rear 9A 7020193 1 Cord, Power 9B Ref Control Box Options: 9B 7019680 1 110V 9B 70000127 1 220V 9B Ref Breaker, Circuit Options: 9B 4360542 1 110V 9B 70000126 1 220V 9B 4460190 1 Receptacle, Double (110V Box) 9B 4460027 1 Receptacle, Double Twist Lock (110V Box) 9B 70000124 1 Receptacle, Double (220V Box) 9B 70000125 1 Receptacle, Single Twist Lock (220V Box) 9B 3520028 1 Plug, Hole 9C Ref Voltmeter Options: 9C 2420203 1 110V 9C 7020192 1 220V 9D Ref Pulley Options: 9D 3580276 1 110V/60Hz 9D 3580134 1 110V/50Hz 9D 3580134 1 220V/50Hz 9D 7027887 1 Key, Woodruff 10 3290505 1 Locknut M5 11 3311605 1 Locknut 3/8in-16NC 12 3311705 1 Locknut 7/16in-14NC 13 3580158 1 Pulley 14 3740080 1 Relay 15 4031608 1 Bolt M5 x 20mm 16 4420060 3 in/8cm Tape, Double Sided Foam Acrylic 17 4460968 3 Connector, Strain Relief 18 4751500 1 Flatwasher 5/16in Regular
REV
ITEM PART NUMBER QTY
DESCRIPTION
19 4751600 2 Flatwasher 3/8in Regular 20 4751700 4 Flatwasher 7/16in Regular 21 4811600 1 Flatwasher M5 22 1001099869 1 Box, Junction 23 Ref Light, Red Options: 23 1001100233 1 125V 23 1001100234 1 250V 24 0721006 1 Bolt #10-24NC x 3/4in 25 3311005 3 Locknut #10-24NC 26 4751000 6 Flatwasher #10 Regular 27 0641820 1 Bolt 1/2in-13NC x 2-1/2in (Not Shown - Attaches Item 31 to Engine Tray) 28 0711414 4 Bolt M14 x 30mm 29 3311805 1 Locknut 1/2in (Not Shown - Attaches Item 31 to Engine Tray) 30 4812200 2 Flatwasher M14 31 4846567 1 Bracket, Motor Mounting Ref PLATFORM COMPONENTS Ref Note: For Module (with/without UGM) Identification, refer to
Revision Log page A.
Ref Without UGM 0274079 Ref 110V/60Hz Generator
REV
2-B
Ref 110V/50Hz Generator 0274089 Ref USA Built Machines (SN 0300124000 through 0300132831) 2-B 0274089 Ref Belgium Built Machines (SN 1300006000 through
1300006617)
2-B 1001100656 Ref USA Built Machines (SN 0300132832 through 0300160834) A 1001100656 Ref Belgium Built Machines (SN 1300006618 to Present) A 1001100656 Ref Romanian Built Machines (SN E300000001 through
E300001114)
S Ref 220V/50HZ Generator 0274085 Ref USA Built Machines (SN 0300124000 through 0300132831) 2-B 0274085 Ref Belgium Built Machines (SN 1300006000 to Present) 2-B 1001100657 Ref USA Built Machines (SN 0300132832 through 0300139039) A 1001100657 Ref Belgium Built Machines (SN 1300006618 to Present) A 1001100657 Ref Romanian Built Machines (SN E300000001 through
E300001114)
A Ref With UGM 1001115403 Ref 110V/60HZ Generator A 1001115411 Ref 110V/50HZ Generator A 1001115412 Ref 220V/50HZ Generator A 101 4360336 1 Switch, Toggle 102 4740397 1 Washer 103 4060802 1 Guard, Switch 104 2820031 AR Heatshrink (Not Shown) 105 3251102 1 Nameplate
