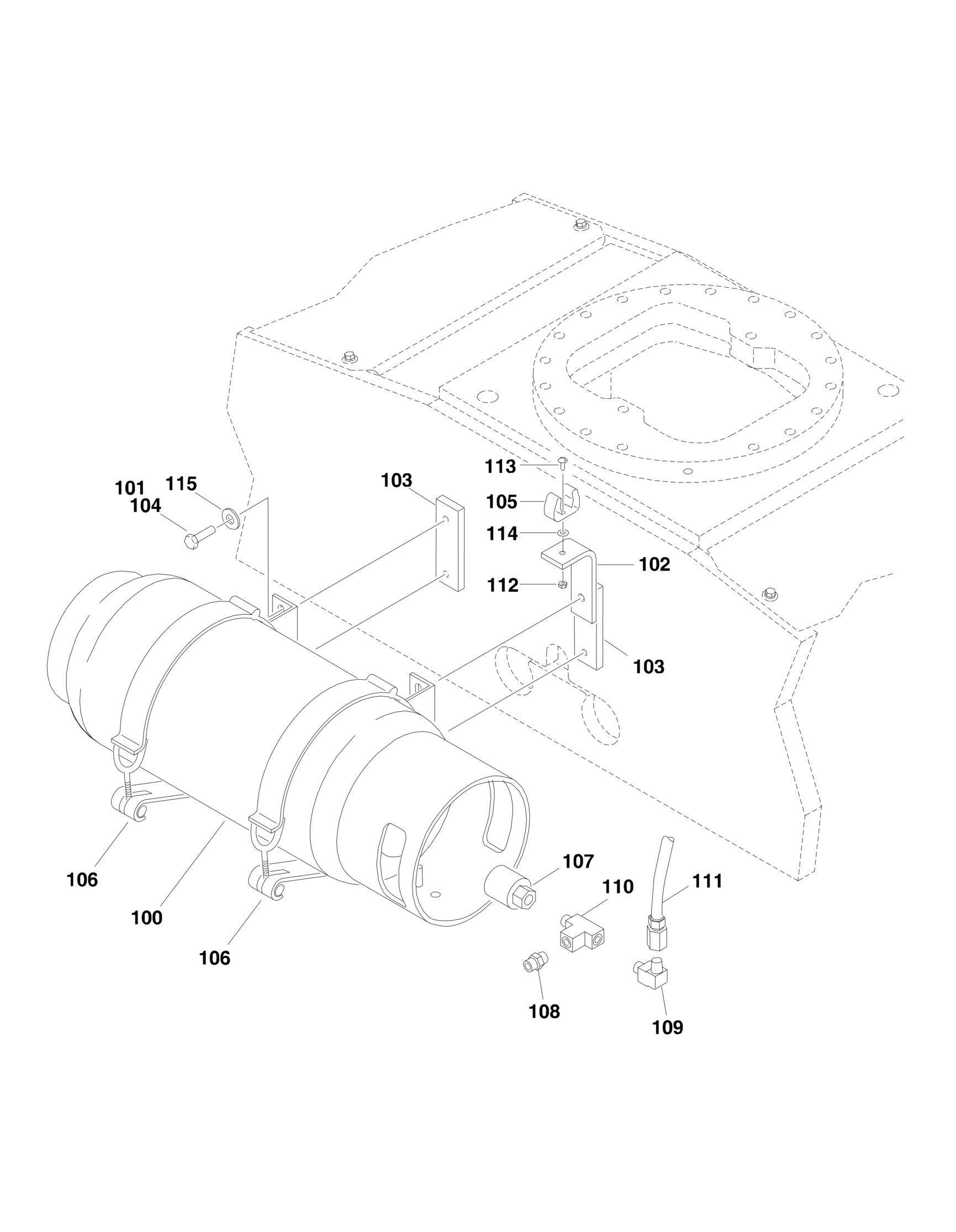

FIGURE 2-26. LP TANK INSTALLATION (GM ENGINE MACHINES ONLY
ITEM PART NUMBER QTY
DESCRIPTION
Ref LP TANK AND BRACKETS INSTALLATIONS 0258033 Ref Standard Machines 0271391 Ref Semi-Track Machines Note: Not Shown - Located on Rear of
Frame
100 Ref Tank, LPG Options: 100 4400275 1 Aluminum Tank 100 4400420 1 Steel Tank 101 0100011 AR Compound, Locking 102 Ref Angle, Support Options: 102 0181949 1 Angle, Support (Standard Machines) 102 4846259 2 Bracket, Support (Semi-Track Machines) 103 Ref Bar, Mounting (Standard Machines Only) 103 0362519 2 USA Built Machines (SN 0300124000 through 0300069273) 103 Not Required 2 USA Built Machines (SN 0300069274 through 0300160834) 103 Not Required 2 Belgium Built Machines (SN 1300000001 to Present) 104 0641607 4 Bolt 3/8in-16NC x 7/8in 105 1320218 1 Clamp, Spring (Standard Machines Only) 106 Ref Clamp Kit Options: 106 1320220 1 Standard Machines 106 1320023 1 Semi-Track Machines 107 2180387 1 Fitting, LP 108 2180389 1 Fitting 109 2180504 1 Fitting, 90 (Standard Machines Only) 110 2220290 1 Fitting, Tee 111 Ref Hose Options: 111 2720149 1 Standard Machines 111 2720468 1 Semi-Track Machines 112 3310805 1 Locknut #8-32NC (Standard Machines Only) 113 3910808 1 Screw #8-32NC x 1in (Standard Machines Only) 114 4750800 1 Flatwasher #8 Regular (Standard Machines Only) 115 4751600 4 Flatwasher 3/8in Regular
REV
B A
