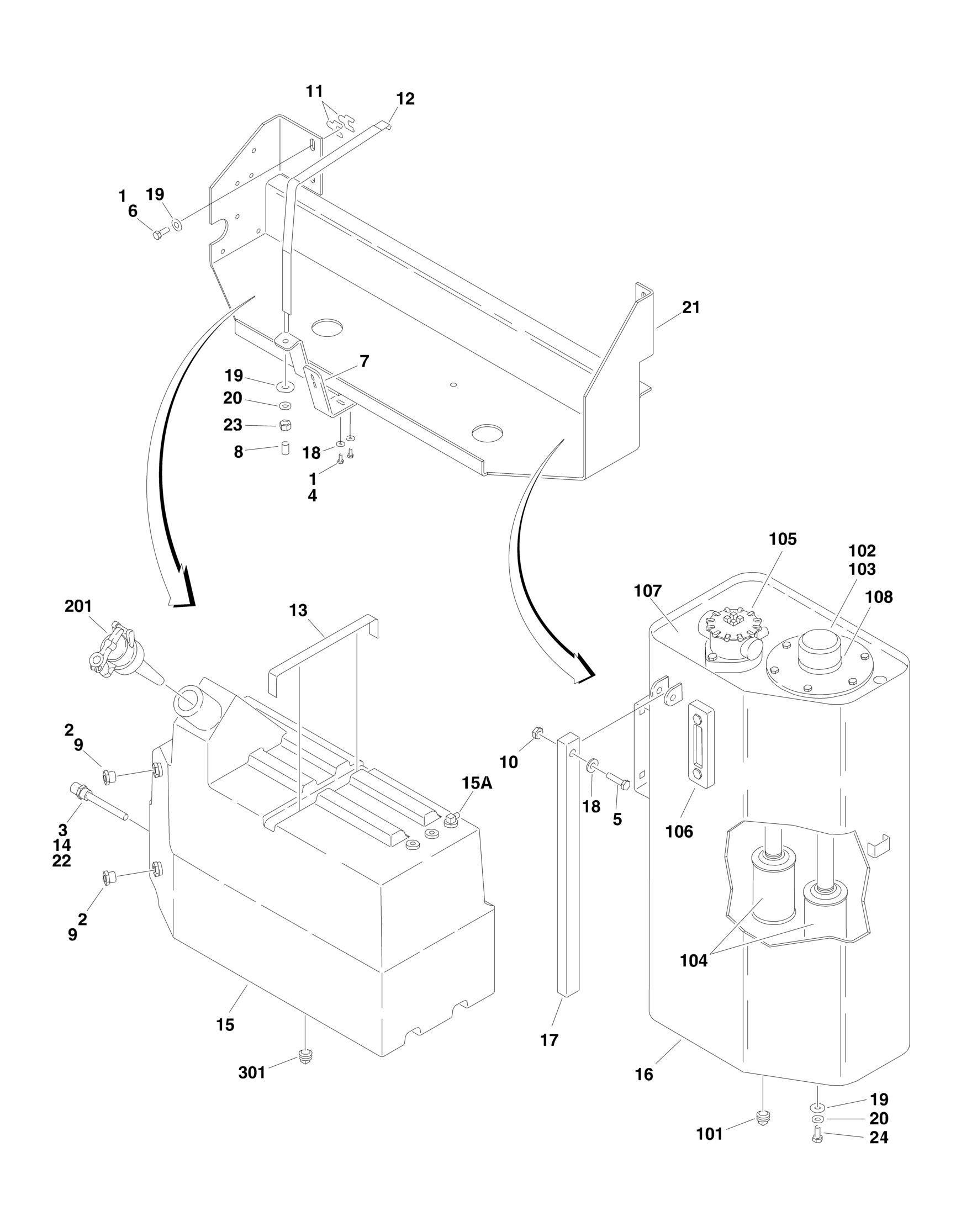

FIGURE 2-25. TANK INSTALLATIONS
FIGURE 2-25. TANK INSTALLATIONS
FIGURE 2-25. TANK INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref TANK INSTALLATIONS 0272669 Ref USA Built Machines (Caterpillar, Deutz and Perkins Engines) F 1001091567 Ref USA Built Machines (GM Engines) B 0272491 Ref Belgium Built Machines F 0272491 Ref Romanian Built Machines F 1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100079 AR Permatex 4 0641405 2 Bolt 1/4in-20NC x 5/8in 5 0641416 1 Bolt 1/4in-20NC x 2in 6 0641608 4 Bolt 3/8in-16NC x 1in 7 0902535 1 Bracket, Hood Latch 8 1120532 1 Cap, Protective 9 2420115 2 Gauge, Sight (USA Built Machines) (SN 0300124000 through
0300156246)
9 2420115 2 Gauge, Sight (All belgium Built Machines) 9 2420115 2 Gauge, Sight (Romanian Built Machines) (SN E300000001
through E300000323)
10 3311405 1 Locknut 1/4in-20NC 11 4070410 2 Shim 12 4240145 1 Strap, Tank Mount 13 4280295 2 ft/.61m Strip, Bumper 14 4360436 1 Switch, Fuel Level 15 Ref Tank, Fuel Options (Includes Standard Non-Locking Cap): 15 4400408 1 Diesel 15 1001091560 1 Gas/Petrol 15A 7020056 1 Fitting and Hose (Supply Line) 16 4400451 1 Hydraulic Tank Assembly (See Items 101-109 for Breakdown) 17 4567627 1 Tube, Hood Prop 18 4751400 4 Flatwasher 1/4in Regular 19 4751600 8 Flatwasher 3/8in Regular 20 4761600 4 Lockwasher 3/8in 21 Ref Tray Weldment Options: 21 4846375 1 USA Built Machines 21 4846665 1 Belgium Built Machines 22 2820035 2 ft/.61m Insulate, Tubing 23 Ref Nut 3/8in-16NC Options: 23 3311601 3 0272491Installation Not Required 0 0272669 / 1001091567 Installation 24 Ref Bolt Options: 24 0641608 3 Bolt 3/8in-16NC x 1in (USA Built Machines) 24 0641606 3 Bolt 3/8in-16NC x 3/4in (Belgium Built Machines) 4400451 Ref HYDRAULIC TANK ASSEMBLY H
101 7024446 1 Plug, Magnetic 102 7024444 1 Cap, Fill (Lenz Brand) 102 See Note 1 Cap, Fill (Hydrac Brand) (Note: Use p/n 70004862) 103 7024445 1 Screen (Lenz Brand) 103 See Note 1 Screen (Hydrac Brand) (Note: Use p/n 70004862) 104 7024442 2 Strainer 105 Ref Assembly Filter, Return Options:
ITEM PART NUMBER QTY DESCRIPTION
105
Ref USA Built Machines (SN 0300124000 through 0300139753) 105 Ref Belgium Built Machines (SN 1300006000 through
1300006858)
105 7020226 1 Assembly Filter, Return 105 7023205 1 Filter, Element 105 Ref USA Built Machines (SN 0300139754 through 0300160834) 105 Ref Belgium Built Machines (SN 1300006859 to Present) 105 Ref Romanian Built Machines (SN E300000001 through
E300001114)
105 70001959 1 Assembly Filter, Return 105 70001960 1 Filter, Element 105 70002768 1 Spring, Return Filter Assembly 106 7024441 1 Gauge, Sight 107 7024439 1 Cover 108 7024443 1 Filler Neck 109 7024440 1 Gasket (Not Shown) 201 Ref FUEL CAP OPTIONS 201 7016314 Ref Standard Non-Locking Cap (Diesel Engine Machines) 201 1120487 Ref Optional Locking Cap (Diesel Engine Machines) 201 70001103 Ref Standard Non-Locking Cap (Gas Engine Machines) Ref ENGINE INSTALLATIONS 301 2200222 1 Plug 301 0100020 AR Sealant
