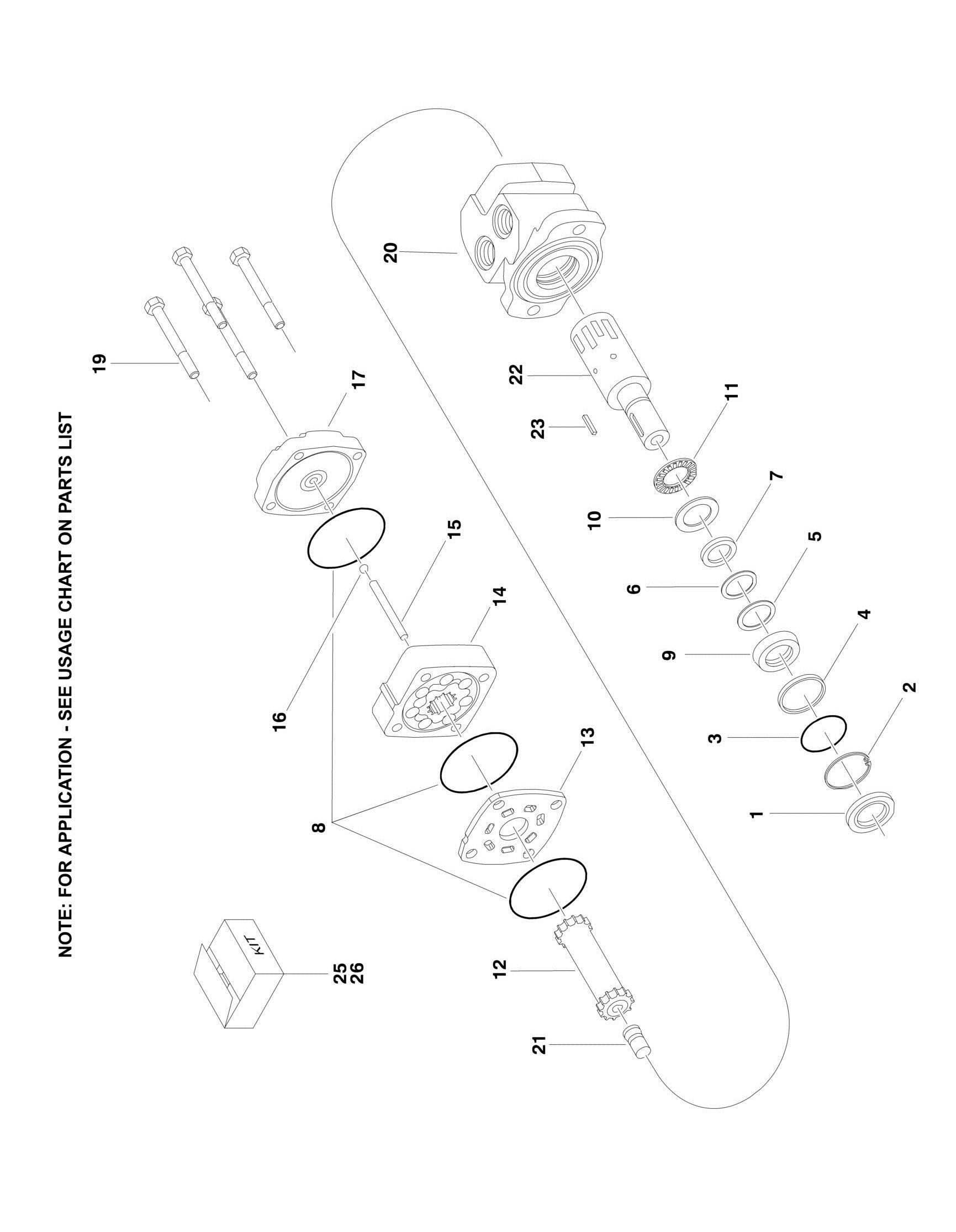

FIGURE 2-4. SWING MOTOR ASSEMBLY

FIGURE 2-4. SWING MOTOR ASSEMBLY

FIGURE 2-4. SWING MOTOR ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION

Ref Usage Chart: Ref Original Equipment Motor for Machines and Machines (SN

0300124000 through 0300137175, SN 1300006000 through 1300006701)

Ref Note: Original Equipment motor p/n 3120287 may have been

replaced with Service Replacement motor p/n 1001105455. Visually identify motor before ordering parts.

3160287 Ref SWING MOTOR ASSEMBLY 1 2900477 1 Seal, Dust 2 2900477 1 Ring, Retaining 3 2900477 1 Shim, Metal Back-Up 4 2900477 1 Seal, High Pressure 5 2900477 1 Shim, Metal Back-Up 6 2900477 1 Shim, Teflon Back-Up 7 2900477 1 Seal, Shaft 8 2900477 3 Seal, Body 9 2900477 1 Washer, Carrier 10 2900477 1 Thrustwasher 11 See Note 1 Bearing, Thrust (Note: Not Available - Purchase Complete Motor) 12 See Note 1 Link, Drive (Note: Not Available - Purchase Complete Motor) 13 See Note 1 Plate, Wear (Note: Not Available - Purchase Complete Motor) 14 7016432 1 Rotor Set Assembly 15 7016433 1 Pin, Drive Link 16 See Note 1 Ball (Note: Not Available - Purchase Complete Motor) 17 See Note 1 Cover, End (Note: Not Available - Purchase Complete Motor) 18 See Note 1 Nameplate (Note: Not Available for Purchase) 19 7016434 1 Bolt Set (Includes 4 Bolts) 20 7016435 1 Housing 21 7016435 1 Plug, Cooling 22 7005843 1 Shaft 23 7005887 1 Key 25 2900477 1 Seal Kit (Includes Items 1-10) 26 7016435 1 Housing/Shaft Kit (Includes Items 20-23)

REV

A
