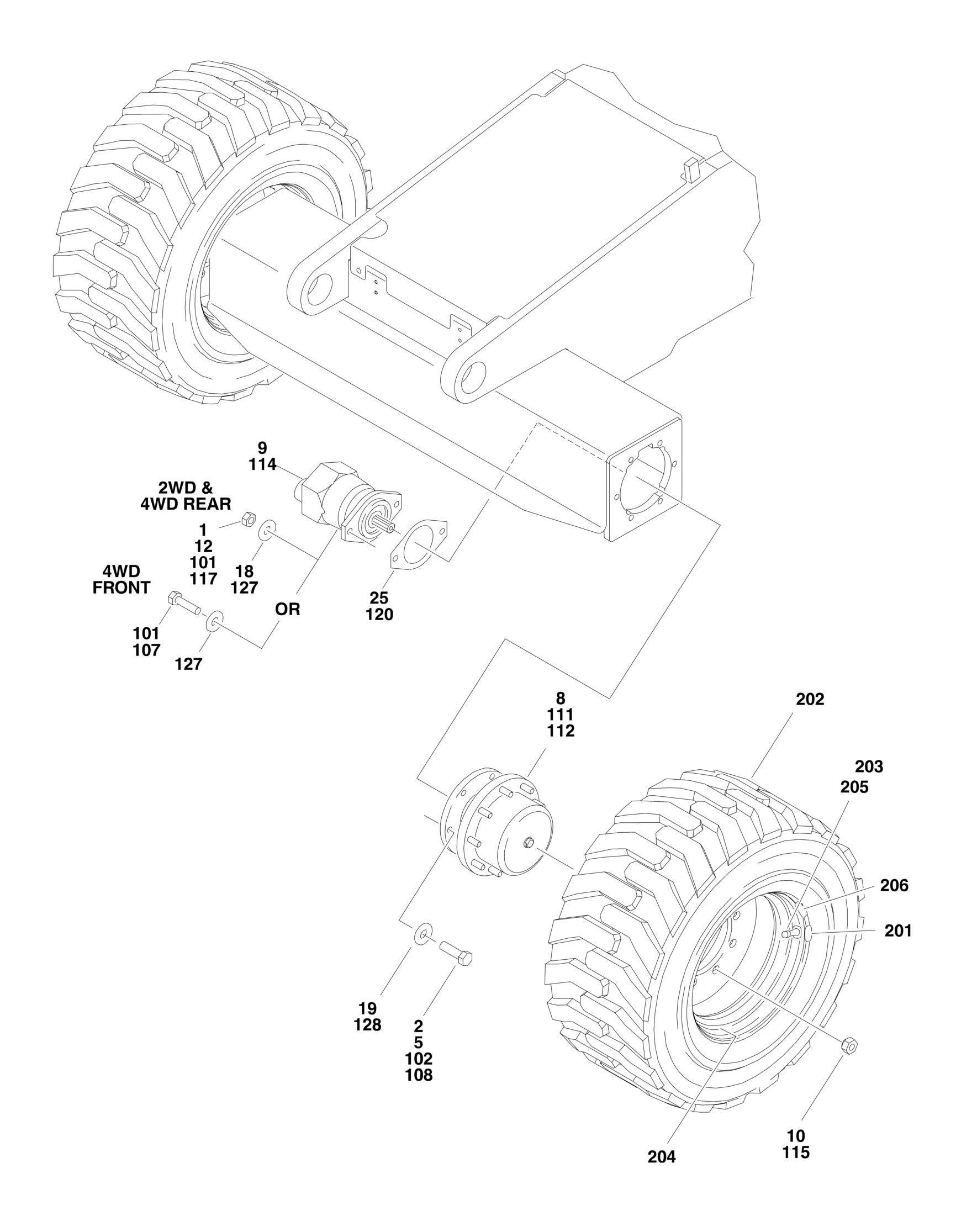

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATION

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATION

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION REV

0275853 Ref WHEEL DRIVE INSTALLATION (2WD) Ref Note: USA Manufacture Only. 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 5 0682014 12 Bolt 5/8in-11NC x 1-3/4in (Grade 8) 8 2780267 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) 9 3160351 2 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY (2WD) for Breakdown) 10 3300106 18 Lugnut 12 3311801 4 Nut 1/2in-13NC 18 4891800 4 Flatwasher 1/2in Hardened 19 4892000 12 Flatwasher 5/8in Hardened 25 3960526 2 Gasket 0275854 Ref WHEEL DRIVE INSTALLATIONS (4WD) 101 0100011 AR Compound, Locking 102 0100019 AR Compound, Locking 107 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Front Axle) 108 0682014 12 Bolt 5/8in-11NC x 1-3/4in (Grade 8) 111 2780267 2 Drive Hub/Brake Assembly (Rear) (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) 112 2780268 2 Drive Hub/Brake Assembly (Front - Not Shown) (See DRIVE HUB ASSEMBLY (FRONT) (4WD ONLY) for Breakdown) 114 3160348 4 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) 115 3300106 36 Lugnut 117 3311801 4 Nut 1/2in-13NC (Rear Axle) 120 3960526 4 Gasket 127 4891800 8 Flatwasher 1/2in Hardened 128 4892000 24 Flatwasher 5/8in Hardened Ref TIRE AND WHEEL INSTALLATIONS 0258028 Ref 12 x 16.5 Pneumatic (Available on ANSI, ANSI Export, CSA

and Japanese Specs)

0272299 Ref 12 x 16.5 Pneumatic TS (Available on ANSI Specs) 0258030 Ref 12 x 16.5 Foam-Filled (Available on all Specs) 0270671 Ref 12 x 16.5 Pneumatic Non-Marking (Available on ANSI, ANSI

Export, CSA and Japanese Specs)

F

C

A

1 A B

0270674 Ref 12 x 16.5 Foam-Filled Non-Marking (Available on All Specs) B 0258029 Ref 33/1550 x 16.5 Pneumatic (Available on ANSI, ANSI Export,

CSA and Japanese Specs)

B 0272300 Ref 33/1550 x 16.5 Pneumatic TS (Available on ANSI Specs) 1 0258031 Ref 33/1550 x 16.5 Foam-Filled (Available on All Specs) B 0258831 Ref 33/16LL x 16.1 Pneumatic (Available on 4WD Machines with

ANSI, ANSI Export, CSA and Japanese Specs)

A 1001103501 Ref 33/16LL x 16.1 Pneumatic TS (Available on 4WD Machines

with ANSI, ANSI Export, CSA and Japanese Specs)

A 0259129 Ref 33/16LL x 16.1 Foam-Filled (Available on 4WD Machines/All

Specs)

A 1001113366 Ref 33x6x11Solid Flex (Available on 450AJ Series II with ANSI

Spec)

A 0257740 2 12 x 16.5 Pneumatic Right Side C 0272357 2 12 x 16.5 Pneumatic TS Right Side A

ITEM PART NUMBER QTY

DESCRIPTION

0257746 2 12 x 16.5 Pneumatic Left Side 0272356 2 12 x 16.5 Pneumatic TS Left Side 0258009 2 12 x 16.5 Foam-Filled Right Side 0258010 2 12 x 16.5 Foam-Filled Left Side 0270672 2 12 x 16.5 Pneumatic Non-Marking Right Side 0270673 2 12 x 16.5 Pneumatic Non-Marking Left Side 0270675 2 12 x 16.5 Foam-Filled Non-Marking Right Side 0270676 2 12 x 16.5 Foam-Filled Non-Marking Left Side 0257755 2 33/1550 x 16.5 Pneumatic Right Side 0272360 2 33/1550 x 16.5 Pneumatic TS Right Side 0257756 2 33/1550 x 16.5 Pneumatic Left Side 0272361 2 33/1550 x 16.5 Pneumatic TS Left Side 0258011 2 33/1550 x 16.5 Foam-Filled Right Side 0258012 2 33/1550 x 16.5 Foam-Filled Left Side 0258830 4 33/16LL x 16.1 Pneumatic 1001103502 4 33/16LL x 16.1 Pneumatic TS 0259128 4 33/16LL x 16.1 Foam-Filled 1001113307 2 33x6x11Solid Left Side 1001113308 2 33x6x11Solid Right Side Ref Note: Assemblies may require ballast/foam filling to

manufacture's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.

201 Ref Decal Options (Pneumatic Only): 201 1702740 1 Decal - 90PSI 201 1703067 1 Decal - 40PSI 202 Ref Tire Options: 202 4520216 1 12 x 16.5 NHS (OTR Brand) 202 4520240 1 12 x 16.5 Non-Marking 202 4520217 1 33/1550 x 16.5 NHS (OTR Brand) 202 4520212 1 33/16LL x 16.1 203 Ref Valve Stem Options (Pneumatic Only): 203 4640113 1 All except 33/1550 x 16.5 Foam-Filled Tire and Wheel Assy 203 8786514 1 33/1550 x 16.5 Foam-Filled Tire and Wheel Assy Only 204 Ref Rim, Wheel Options: 204 4860178 1 16.5 x 12 (Use with 12 x 16.5 Tires) 204 4860179 1 16.5 x 12 (Use with 33/1550 x 16.5 Tires) 204 4860193 1 16.1 x 14 (Use with 33/16LL x 16.1 Tires) 205 1120552 1 Cap, Valve Stem (TS Tire Only) 206 1705364 1 Decal - Tire Sealant (TS Tire Only)

REV

C A C C A A A A C A C A D D
