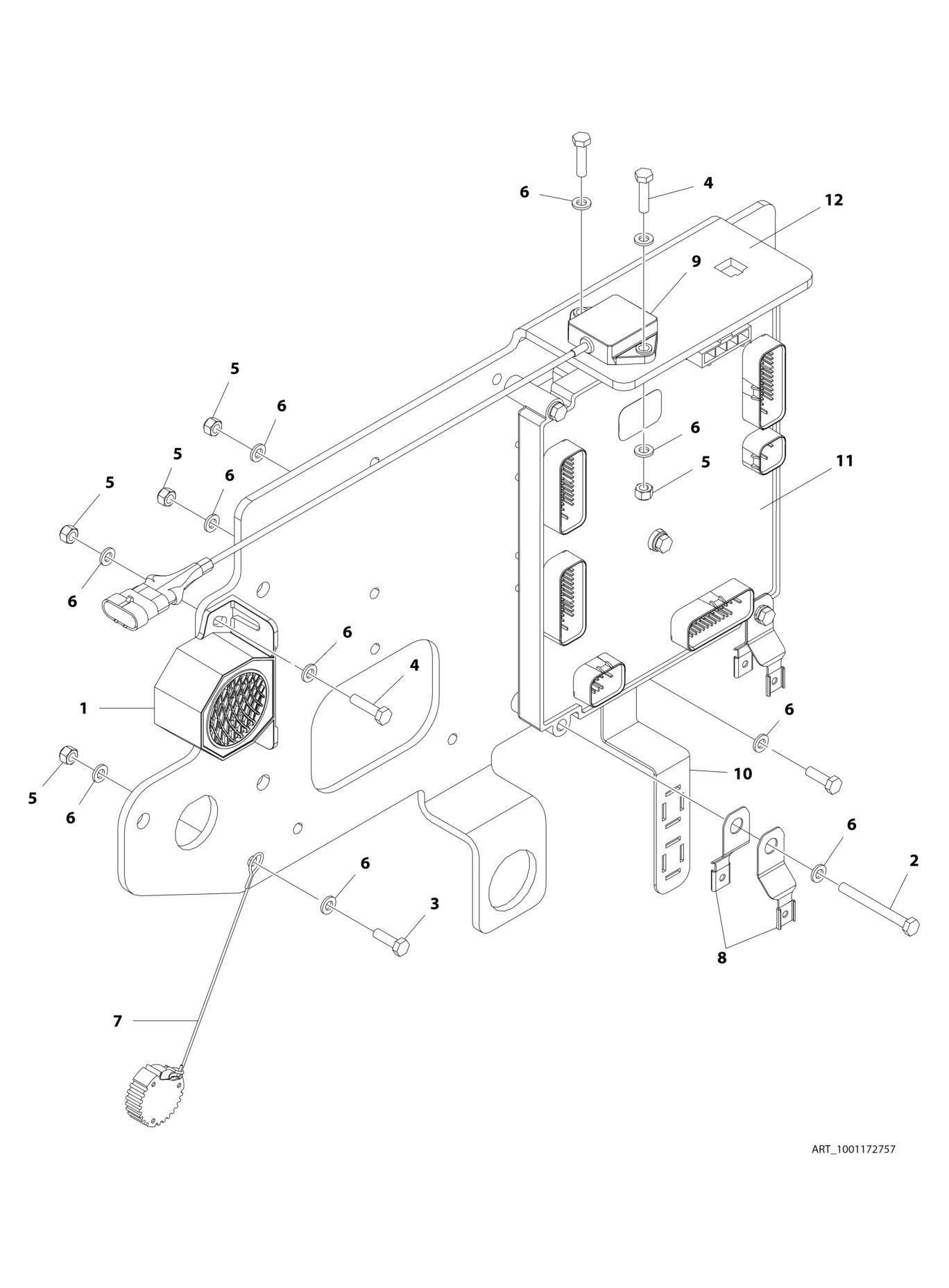

FIGURE 2-23. ELECTRICAL PANEL ASSEMBLY
FIGURE 2-23. ELECTRICAL PANEL ASSEMBLY
FIGURE 2-23. ELECTRICAL PANEL ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001172757 Ref ELECTRICAL PANEL ASSEMBLY 1 0140043 1 Alarm 1 4460536 1 Plug, Male - 3 Position 1 4460943 3 Terminal 2 0700620 5 Bolt M6 x 60 3 0760610 2 Bolt M6 x 20 4 0760612 4 Bolt M6 x 25 5 3290605 11 Nut M6 6 4811700 22 Washer M6 7 1001106736 1 Cap, Dust 8 1001120328 4 Clip, Mounting 9 1001219601 1 Sensor 10 1001159162 1 Bracket 11 1001170094 1 Module, Ground Control (Note: Re-calibration Required when Replaced.) 12 1001215373 1 Plate
REV
E
