E300007713

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

FIGURE 2-31. KEYSWITCH AND PANEL DECAL INSTALLATION - 460SJ HC3 (USA BUILT MACHINES

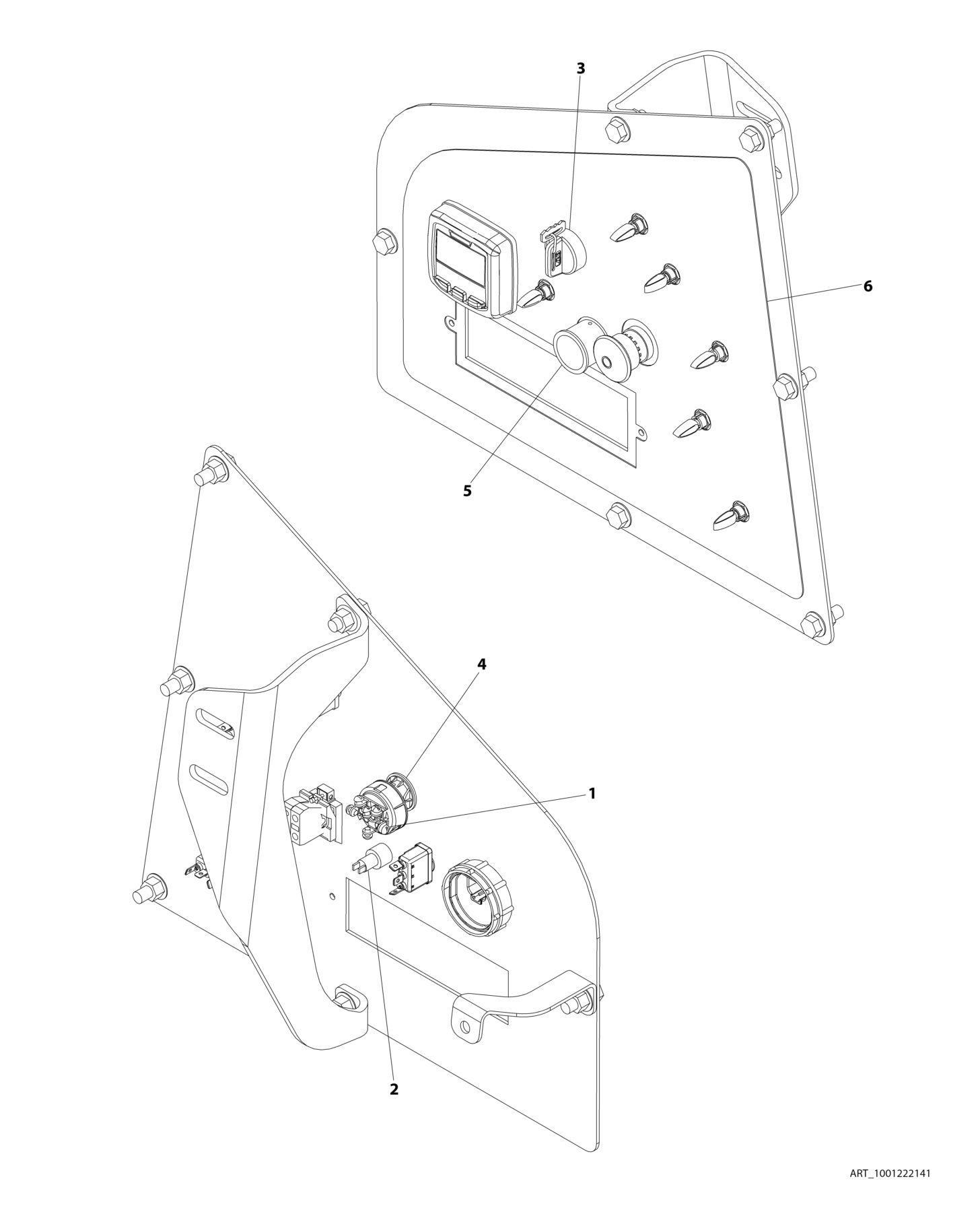

FIGURE 2-30. KEYSWITCH AND PANEL DECAL INSTALLATION - 400S HC3 (ROMANIAN BUILT MACHINES) (Prior to SN E300007713)

ITEM PART NUMBER QTY

DESCRIPTION

1001222141 Ref GROUND CONTROL DECAL AND KEYSWITCH INSTALLATION 400S 1 3910804 6 Screw #8 x 1/4 2 4360387 1 Switch, Push Button 3 4360469 1 Switch, Key 3 2860030 1 Key, Replacement 4 1001151393 1 Shim .063 5 1001176469 1 Shroud, Switch 6 1001221404 1 Decal - Ground Control

REV
