FIGURE 2-25. GROUND CONTROL BOX ASSEMBLY (460SJ HC3 FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY (460SJ HC3 WITH DEUTZ D2.9L4 (STAGE V) ENGINES) (CE SPECS) ...................................................................................................................................................................................................... 124

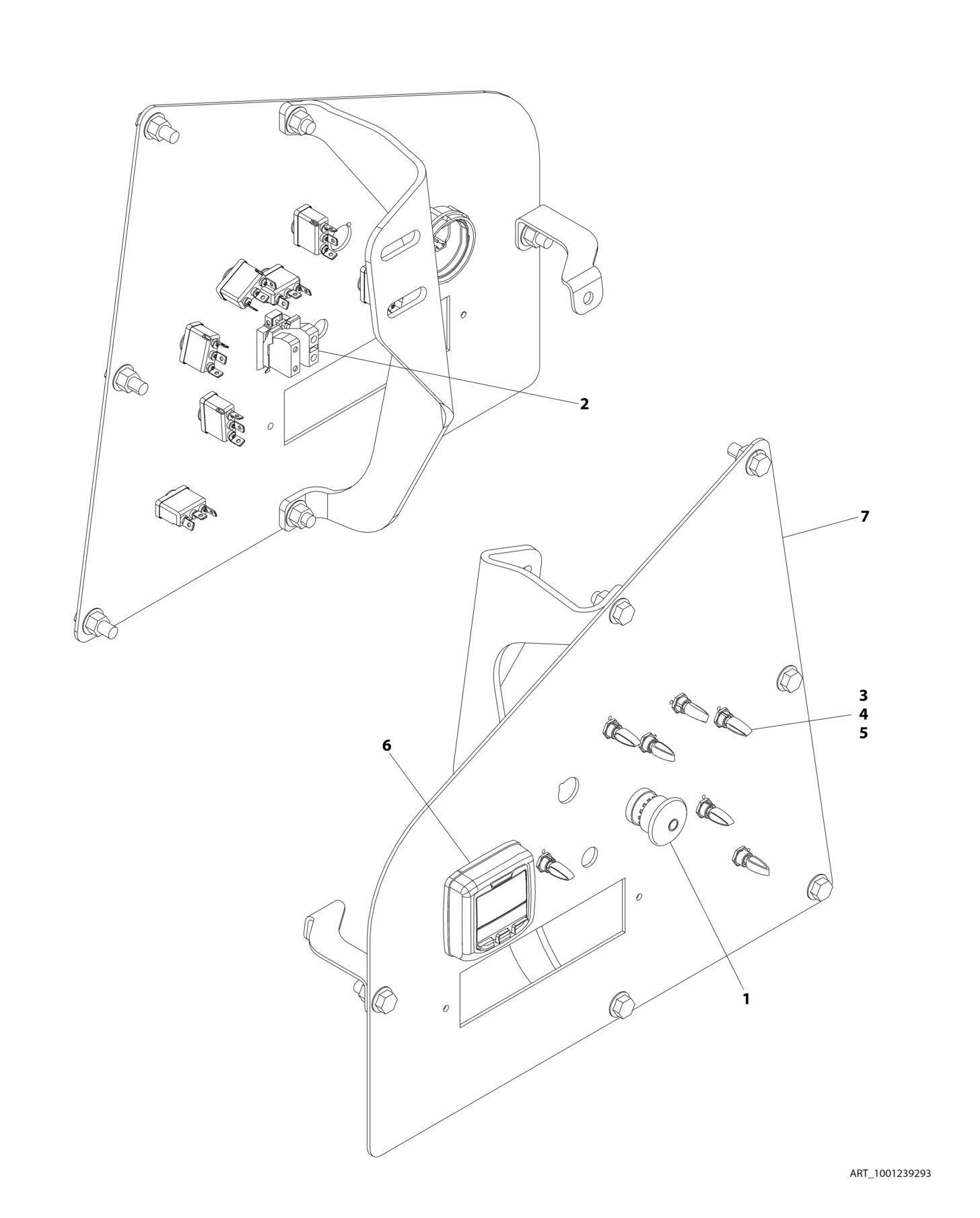

FIGURE 2-25. GROUND CONTROL BOX ASSEMBLY (460SJ HC3)

FIGURE 2-25. GROUND CONTROL BOX ASSEMBLY (460SJ HC3)

ITEM PART NUMBER QTY

DESCRIPTION

1001239293 Ref GROUND CONTROL ASSEMBLY - 460SJ 1 4360475 1 Switch, Emergency Stop 1 7020175 1 Cap 1 7020176 1 Block, Contact 2 4360476 1 Block, Contact 3 1001155043 7 Washer 4 1001155044 7 Nut 15/32 5 1001155045 7 Switch, Toggle 6 1001171482 1 Gauge 7 1001235531 1 Ground Control Mounting (See Separate Breakdown in this Section)

REV

A

FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY (460SJ HC3 WITH DEUTZ D2.9L4 (STAGE V) ENGINES) (CE SPECS)

FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY (460SJ HC3 WITH DEUTZ D2.9L4 (STAGE V) ENGINES) (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001245380 Ref GROUND CONTROL ASSEMBLY 3 4360475 1 Switch, Emergency Stop 3 7020175 1 Cap 3 7020176 1 Block, Contact 4 4360476 1 Block, Contact 5 1001155043 7 Washer 6 1001155044 7 Nut 15/32 7 1001155045 7 Switch, Toggle 8 1001171482 1 Gauge 10 1001245379 1 Ground Control Mounting (See Separate Breakdown in this Section)

REV

B
