FIGURE 2-24. GROUND CONTROL BOX ASSEMBLY (400S HC3

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

FIGURE 2-21. ELECTRICAL INSTALLATION (460SJ HC3) (SN E300007713 to Present

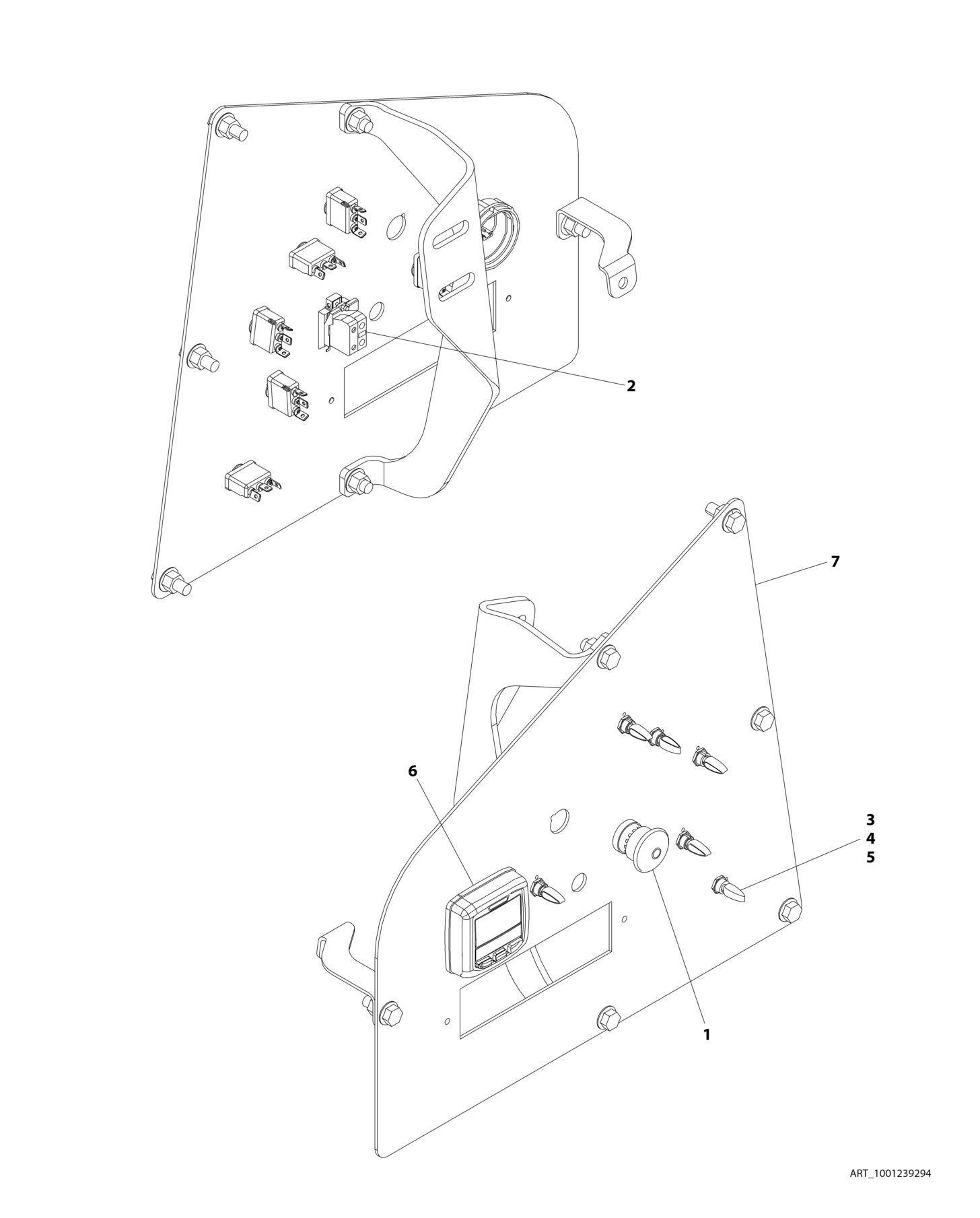

FIGURE 2-24. GROUND CONTROL BOX ASSEMBLY (400S HC3)

ITEM PART NUMBER QTY

DESCRIPTION

1001239294 Ref GROUND CONTROL ASSEMBLY - 400S 1 4360475 1 Switch, Emergency Stop 1 7020175 1 Cap 1 7020176 1 Block, Contact 2 4360476 1 Block, Contact 3 1001155043 6 Washer 4 1001155044 6 Nut 15/32 5 1001155045 6 Switch, Toggle 6 1001171482 1 Gauge 7 1001238887 1 Ground Control Mounting (See Separate Breakdown in this Section)

REV
