FIGURE 2-16. AUXILIARY POWER INSTALLATION - WITH BATTERY DISCONNECT

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

E300007713

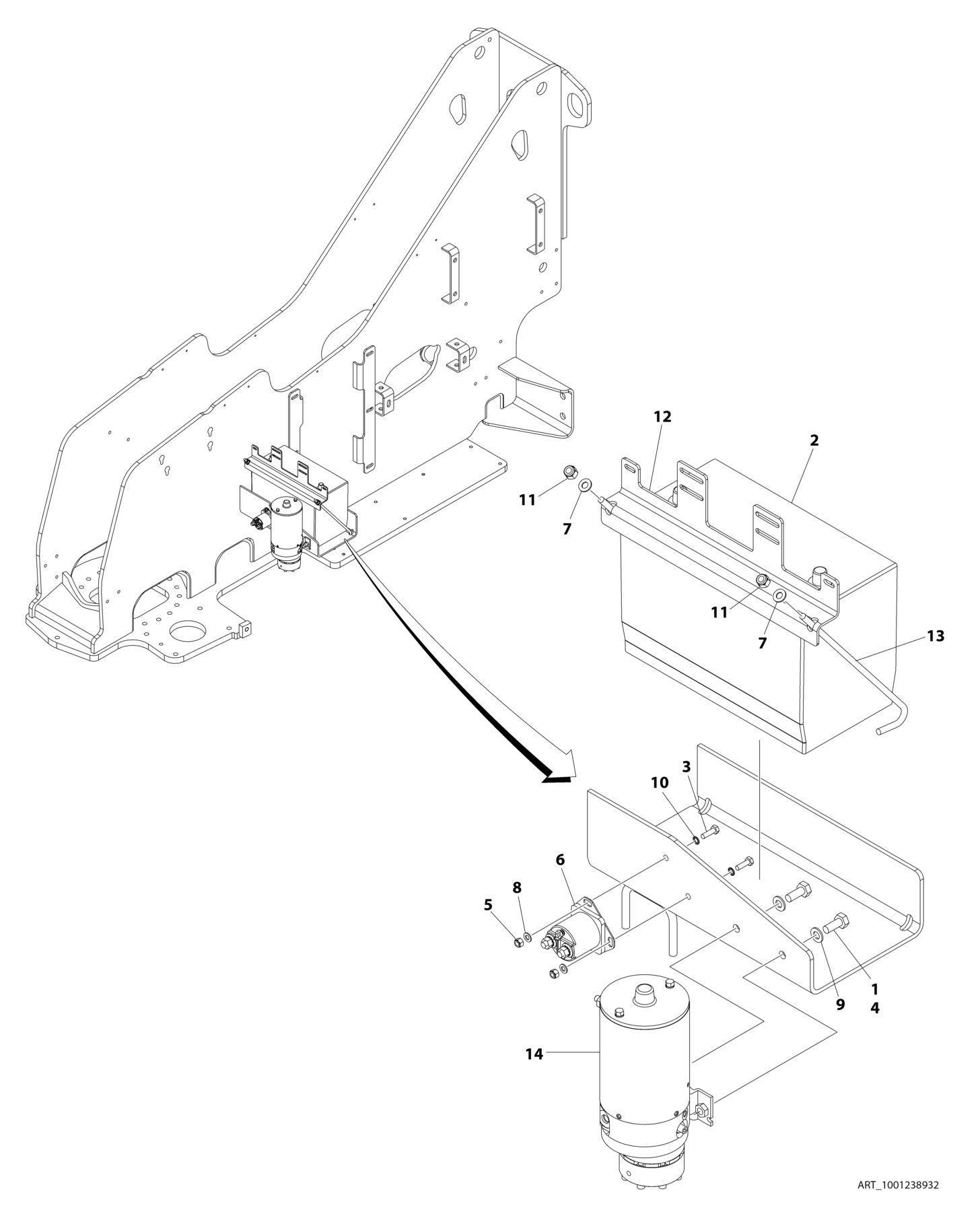

FIGURE 2-16. AUXILIARY POWER INSTALLATION - WITH BATTERY DISCONNECT

ITEM PART NUMBER QTY

DESCRIPTION

1001238932 Ref AUXILIARY PUMP AND BATTERY INSTALLATION WITH DISCONNECT 1 0100011 AR Compound, Locking 2 0400075 1 Battery 3 0760610 2 Bolt M6 x 20 4 0761012 2 Bolt M10 x 25 5 3290605 2 Nut M6 6 3740067 1 Relay 6 3300220 2 Nut 3/8 6 3321001 1 Nut #10 6 4761000 1 Washer #10 6 1001111424 2 Washer 3/8 7 4711500 2 Washer 5/16 8 4811700 2 Washer M6 9 4812000 2 Washer M10 10 4871700 2 Washer M6 11 88521205 2 Nut 5/16 12 1001236303 1 Bracket 13 1001093382 2 J-Bolt 14 1001185821 1 Auxiliary Pump Assembly (See Separate Breakdown in this Section)

REV
