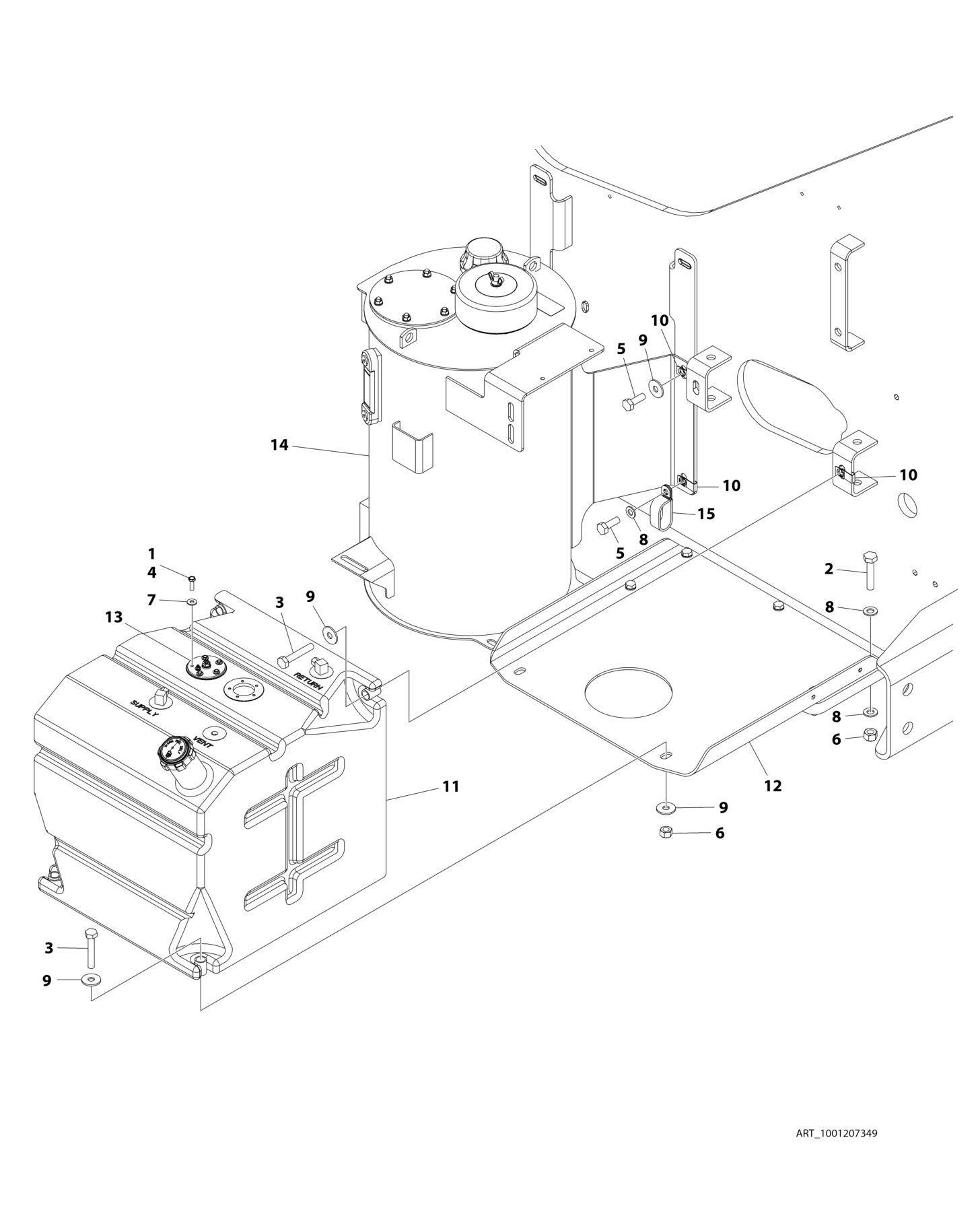

FIGURE 2-12. TANK INSTALLATION - DIESEL ENGINES

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

E300007713

FIGURE 2-12. TANK INSTALLATION - DIESEL ENGINES

ITEM PART NUMBER QTY

DESCRIPTION

1001207349 Ref TANKS INSTALLATION - DIESEL MACHINES 1 0100035 AR Compound, Locking 2 0701018 5 Bolt M10 x 50 3 0701020 4 Bolt M10 x 60 4 0731005 5 Screw #10 x .625 5 0761014 4 Bolt M10 x 30 6 3291005 7 Nut M10 7 4751000 5 Washer #10 8 4812000 12 Washer M10 9 4812002 8 Washer M10 10 1001118972 6 Nut M10 11 1001163418 1 Tank, Fuel 11 1001193336 1 Cap, Fill with Chain and Stop Spring 11 70004794 1 Tube, Pick-up 12 1001166710 1 Plate 13 1001231195 1 Sensor, Fuel Level 14 1001206917 1 Tank, Hydraulic (See Separate Breakdown in this Section) 15 1321716 2 Clamp

REV
