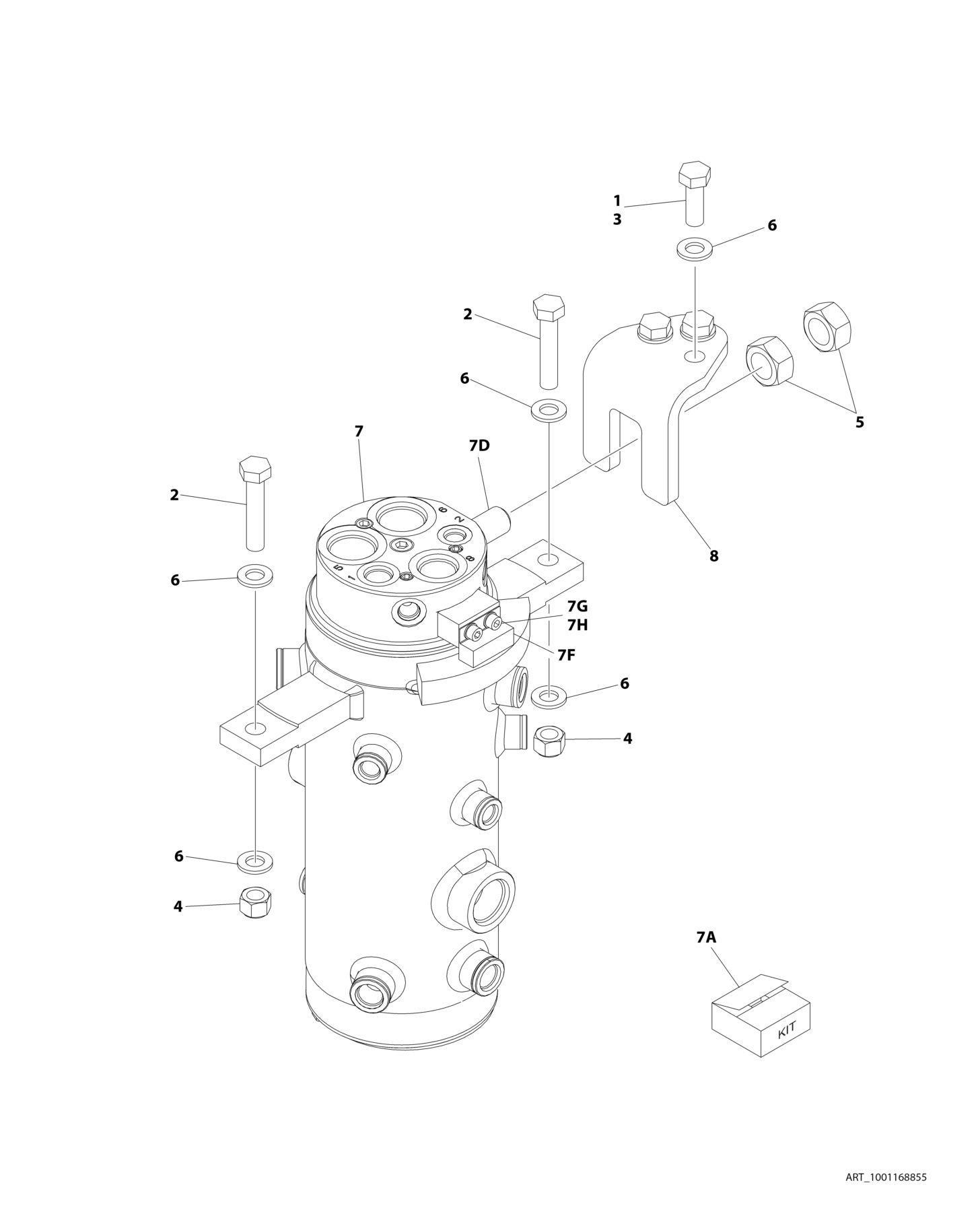

FIGURE 2-11. ROTARY COUPLING INSTALLATION

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

E300007713

FIGURE 2-11. ROTARY COUPLING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001168855 Ref ROTARY COUPLING INSTALLATION 1 0100011 AR Compound, Locking 2 0701220 2 Bolt M12 x 60 3 0761215 3 Bolt M12 x 35 4 3291201 2 Nut M12 5 3292001 2 Nut M20 6 4812100 7 Washer M12 7 1001188334 1 Rotary Coupling Assembly 7A 70005716 1 Seal Kit - 1001188334 Coupling 7B 70005710 1 Spacer (Not Shown) 7C 70005711 1 Spacer (Not Shown) 7D 70005712 1 Threaded Spigot 7E 70005713 1 Circlip (Not Shown) 7F 4360517 1 Switch, Proximity 7G 70005714 1 Bolt 7H 70005715 1 Washer 8 1001169185 1 Mount 9 2220238 1 Fitting, Plug ORB (Not Shown)

REV
