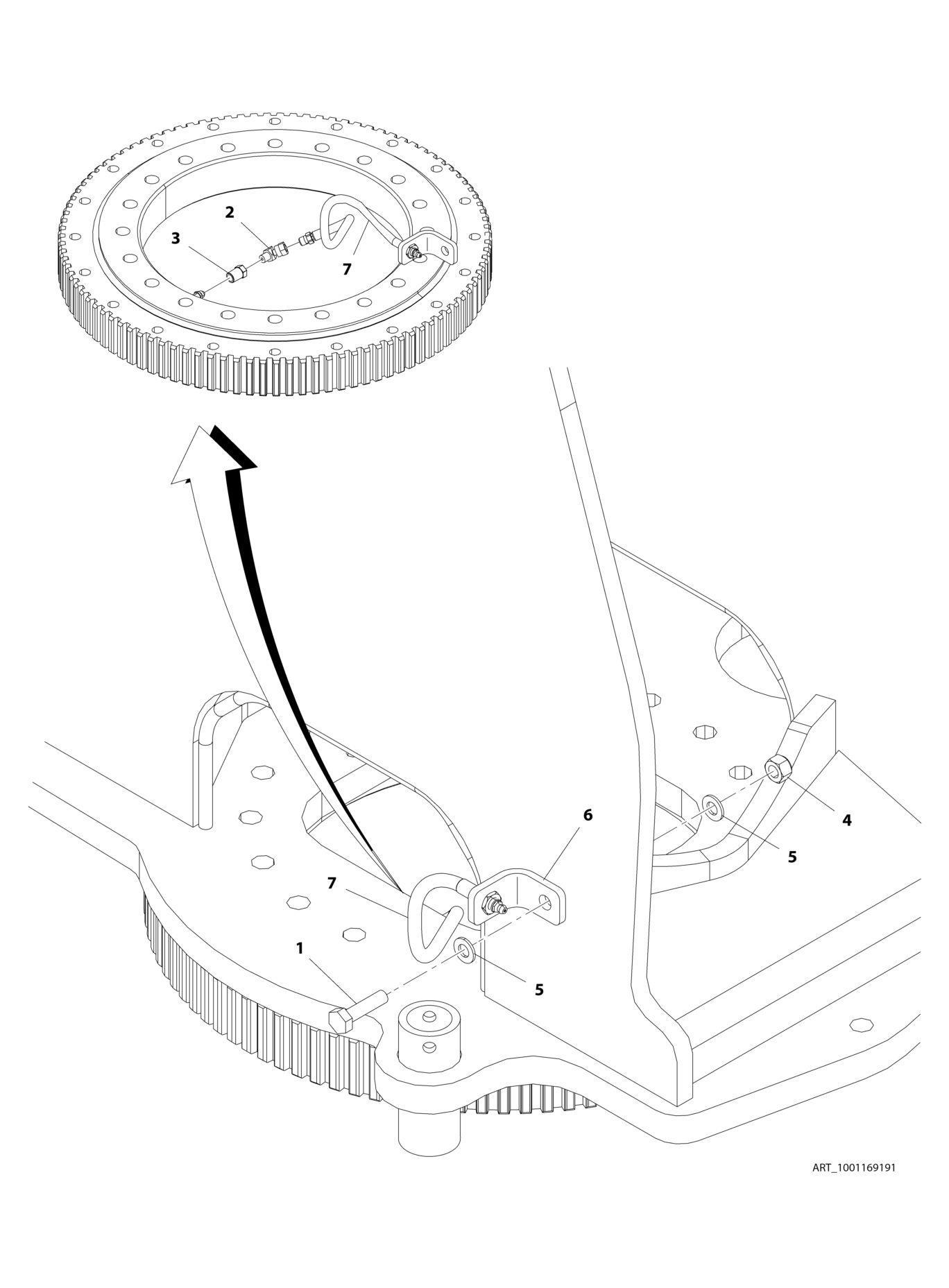

FIGURE 2-9. BEARING LUBE INSTALLATION

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

E300007713

FIGURE 2-9. BEARING LUBE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001169191 Ref BEARING LUBE INSTALLATION 1 0761016 1 Bolt M10 x 40 2 2220124 1 Fitting, 45 1/8NPT 3 2220273 1 Fitting, Straight FNPTF/NPTF 4 3291005 1 Nut M10 5 4812000 2 Washer M10 6 1001169192 1 Mount, Bulkhead 7 1001169193 1 Hose

REV
