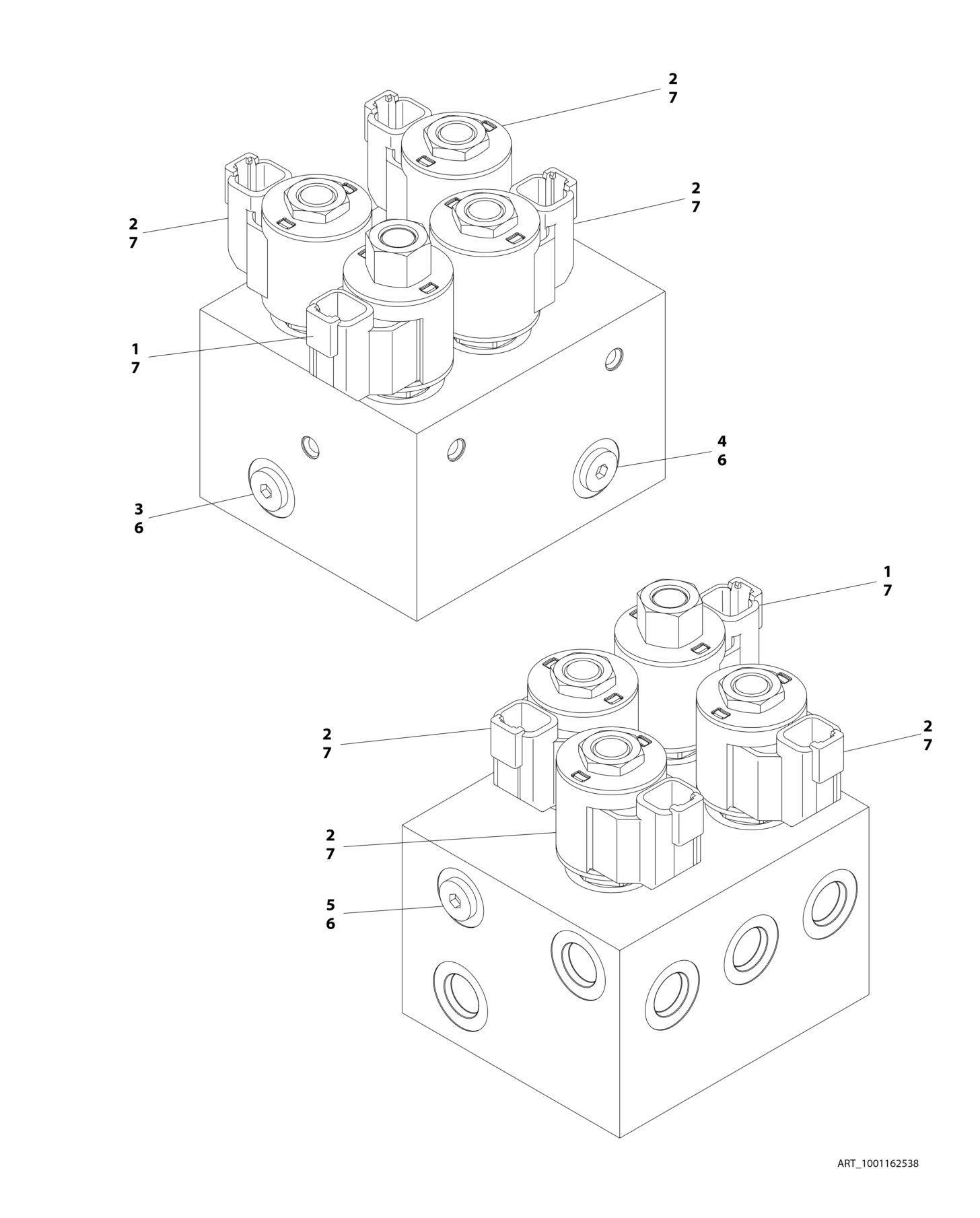

FIGURE 2-5. AXLE CONTROL VALVE ASSEMBLY

FIGURE 2-5. AXLE CONTROL VALVE ASSEMBLY

FIGURE 2-5. AXLE CONTROL VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001162538 Ref AXLE VALVE ASSEMBLY 1 7017410 1 Cartridge, Solenoid Valve Less Coil (Secondary Axle Release) 1 7012967 1 Seal Kit - 7017410 Valve 2 7012941 3 Cartridge, Solenoid Valve Less Coil (Brake Release, Primary Axle Release and 2 Speed) 2 7010543 3 Seal Kit - 7012941 Valve 3 70004883 1 Orifice 4 70004884 1 Orifice 5 70002063 1 Orifice 6 2220883 3 Plug, O-Ring #4 7 70002386 4 Coil

REV

D
