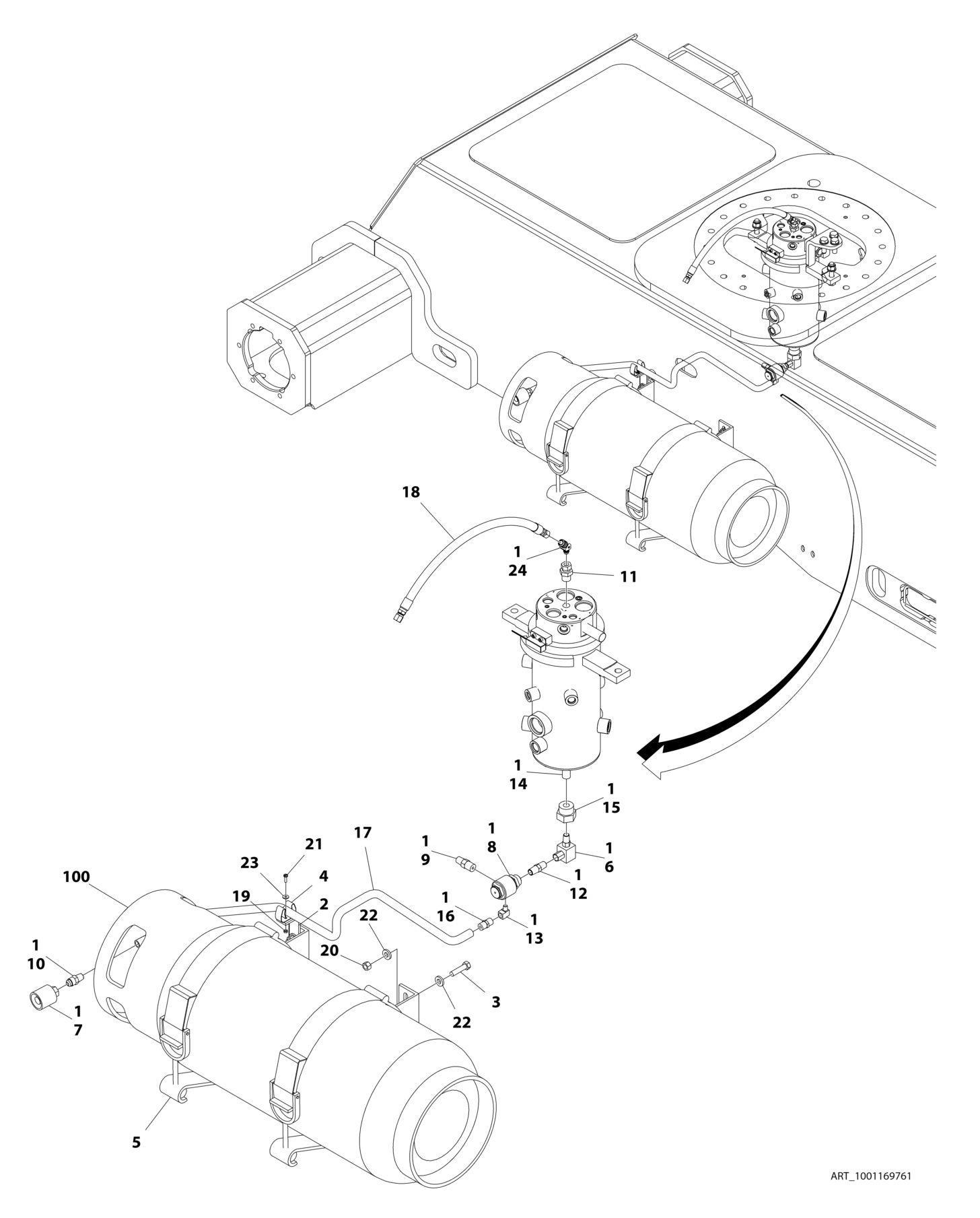

FIGURE 1-19. LP TANK BRACKETS INSTALLATIONS (Prior to SN E300007713

FIGURE 1-19. LP TANK BRACKETS INSTALLATIONS (Prior to SN E300007713)

FIGURE 1-19. LP TANK BRACKETS INSTALLATIONS (Prior to SN E300007713)

ITEM PART NUMBER QTY

DESCRIPTION

1001169761 Ref LP TANK BRACKETS INSTALLATION 1 0100020 AR Sealant, Pipe 2 0181949 1 Angle, Support 4 1320218 1 Clamp 5 1320220 1 Clamp 6 2180125 1 Fitting, Swivel 90 7 2180387 1 Fitting, Straight 8 2180388 1 Fitting, Bulkhead 9 2180389 1 Valve, Relief 10 2180418 1 Fitting, Straight 11 2220005 1 Fitting, Straight 12 2220261 1 Fitting, Nipple 13 2220648 1 Fitting, 90 FNPTF/NPTF 14 2221018 1 Nipple, Pipe 15 2221019 1 Fitting, Reducer 16 2221024 1 Fitting, Nipple 17 2720144 1 Hose 18 2720392 1 Hose 19 3290401 1 Nut M4 x 0.7 21 3900332 1 Screw M4 x 14 23 1001091102 1 Washer 24 1001239802 1 Fitting, 45 25 3311601 4 Nut 3/8 26 4891600 8 Washer 3/8 27 0641612 4 Bolt 3/8 x 1-1/2 100 4400275 1 Tank, LP 43.5 Lbs (Aluminum)

REV

E
