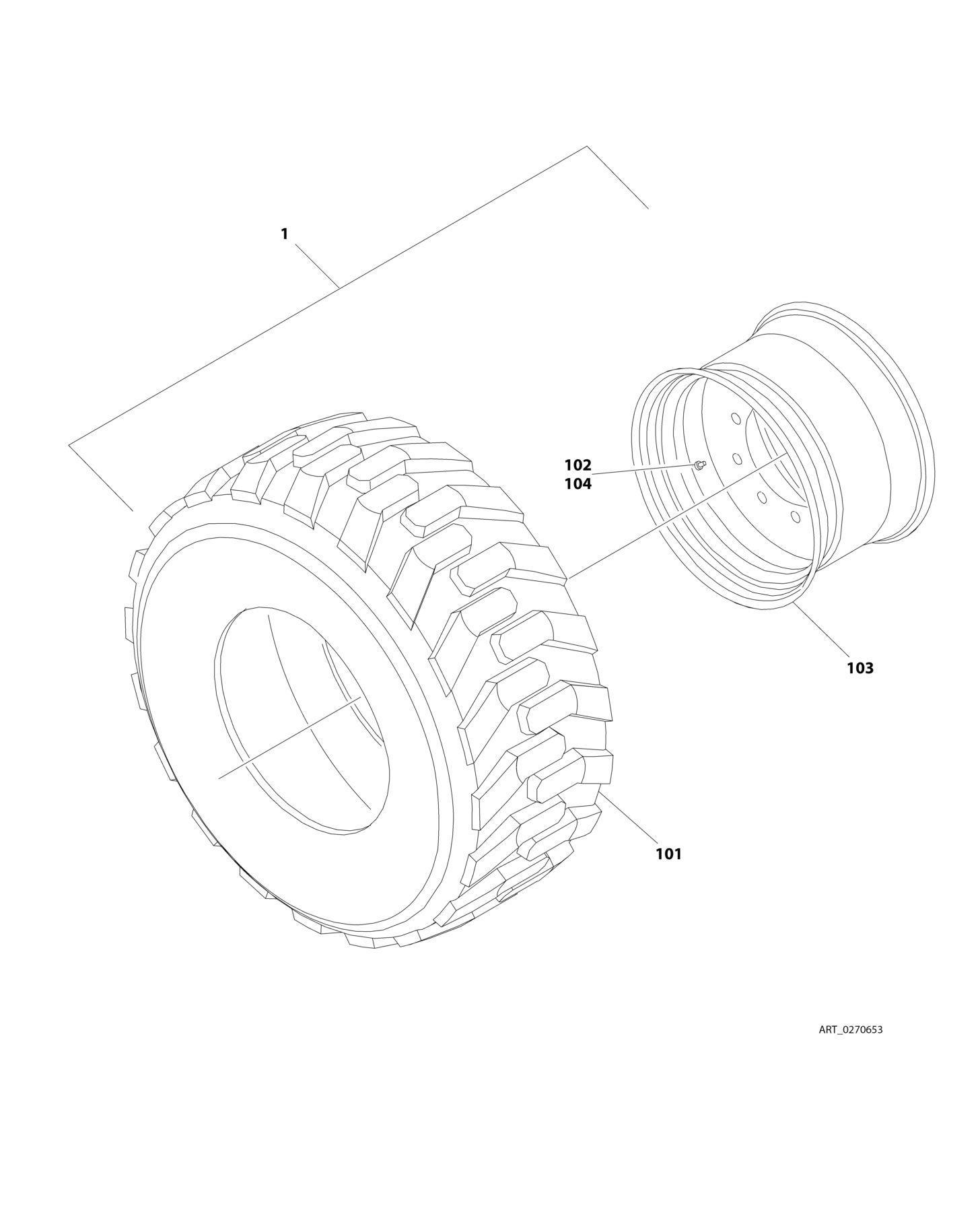

FIGURE 1-17. TIRE AND WHEEL INSTALLATION - 12 X 16.5 FF NON-MARKING (400S HC3
ITEM PART NUMBER QTY DESCRIPTION REV
0270653 Ref TIRE AND WHEEL INSTALLATION - 12 X 16.5 FOAM FILLED B Ref Note: Assemblies may require ballast/foam filling to manufacturer's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly. 1 1001148869 1 Tire and Wheel Assembly - Right Side H 1 1001148870 1 Tire and Wheel Assembly - Left Side H 101 4520240 1 Tire 12 x 16.5 Non-Marking 102 4641122 1 Valve 103 1001147274 1 Rim, Wheel 104 1001149953 1 Cap, Valve Stem
