FIGURE 1-20. LP TANK BRACKETS INSTALLATIONS (SN E300007713 to Present

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

E300007713

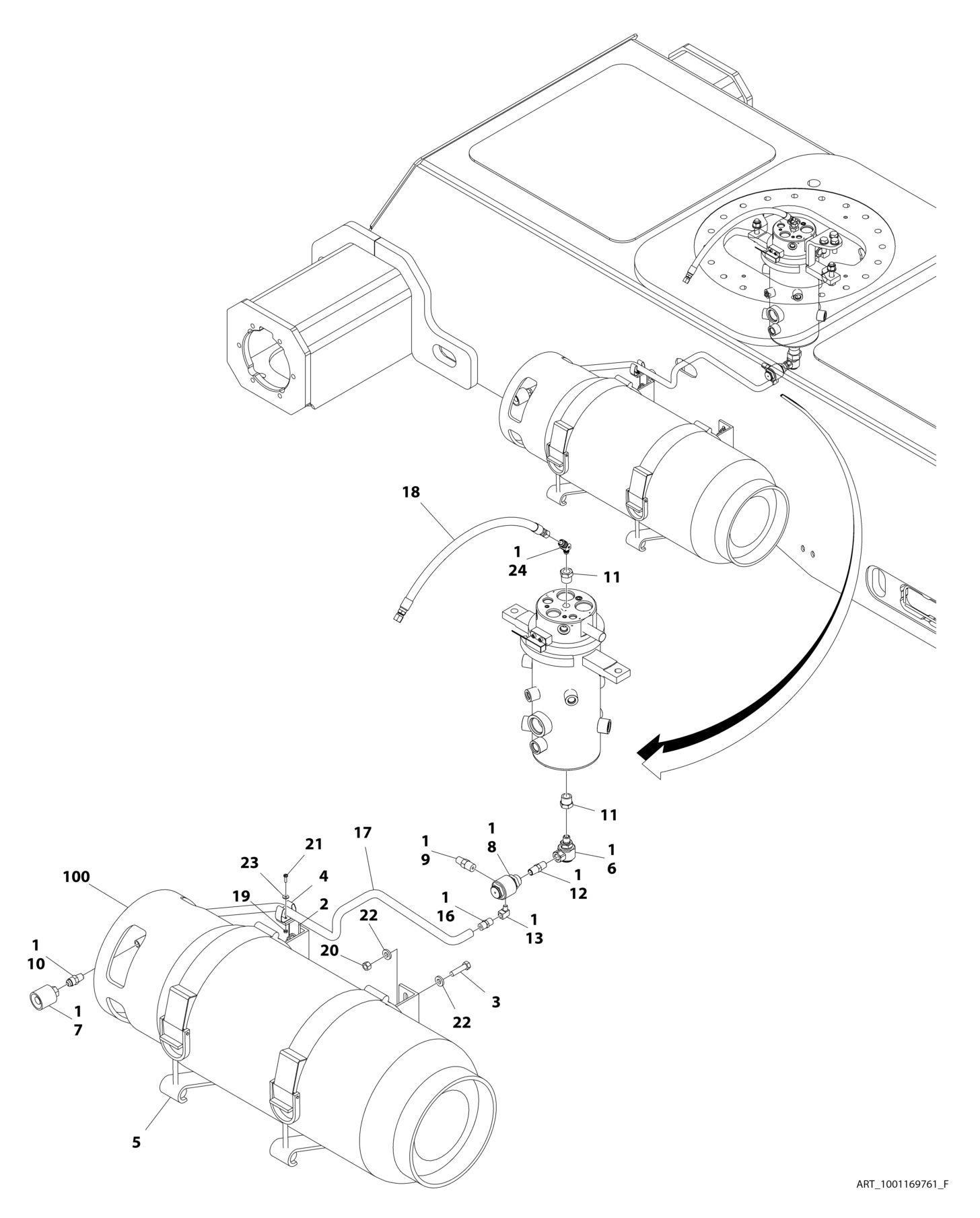

FIGURE 1-20. LP TANK BRACKETS INSTALLATIONS (SN E300007713 to Present)

ITEM PART NUMBER QTY

DESCRIPTION

1001169761 Ref LP TANK BRACKETS INSTALLATION 1 0100020 AR Sealant, Pipe 2 0181949 1 Angle, Support 4 1320218 1 Clamp 5 1320220 1 Clamp 6 1001247358 1 Fitting, Swivel 90 7 2180387 1 Fitting, Straight 8 2180388 1 Fitting, Bulkhead 9 2180389 1 Valve, Relief 10 2180418 1 Fitting, Straight 11 2221197 2 Fitting, Reducer 12 2220261 1 Fitting, Nipple 13 2220648 1 Fitting, 90 FNPTF/NPTF 16 2221024 1 Fitting, Nipple 17 2720144 1 Hose 18 2720392 1 Hose 19 3290401 1 Nut M4 x 0.7 21 3900332 1 Screw M4 x 14 23 1001091102 1 Washer 24 1001239802 1 Fitting, 45 25 3311601 4 Nut 3/8 26 4891600 8 Washer 3/8 27 0641612 4 Bolt 3/8 x 1-1/2 100 4400275 1 Tank, LP 43.5 Lbs (Aluminum)

FIGURE 1-20. LP TANK BRACKETS INSTALLATIONS (SN E300007713 to Present

Next Article

E300007713

ITEM PART NUMBER QTY

DESCRIPTION

REV
