FIGURE 1-21. FRAME SHIELDS INSTALLATION - WITHOUT TOW PACKAGE

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

E300007713

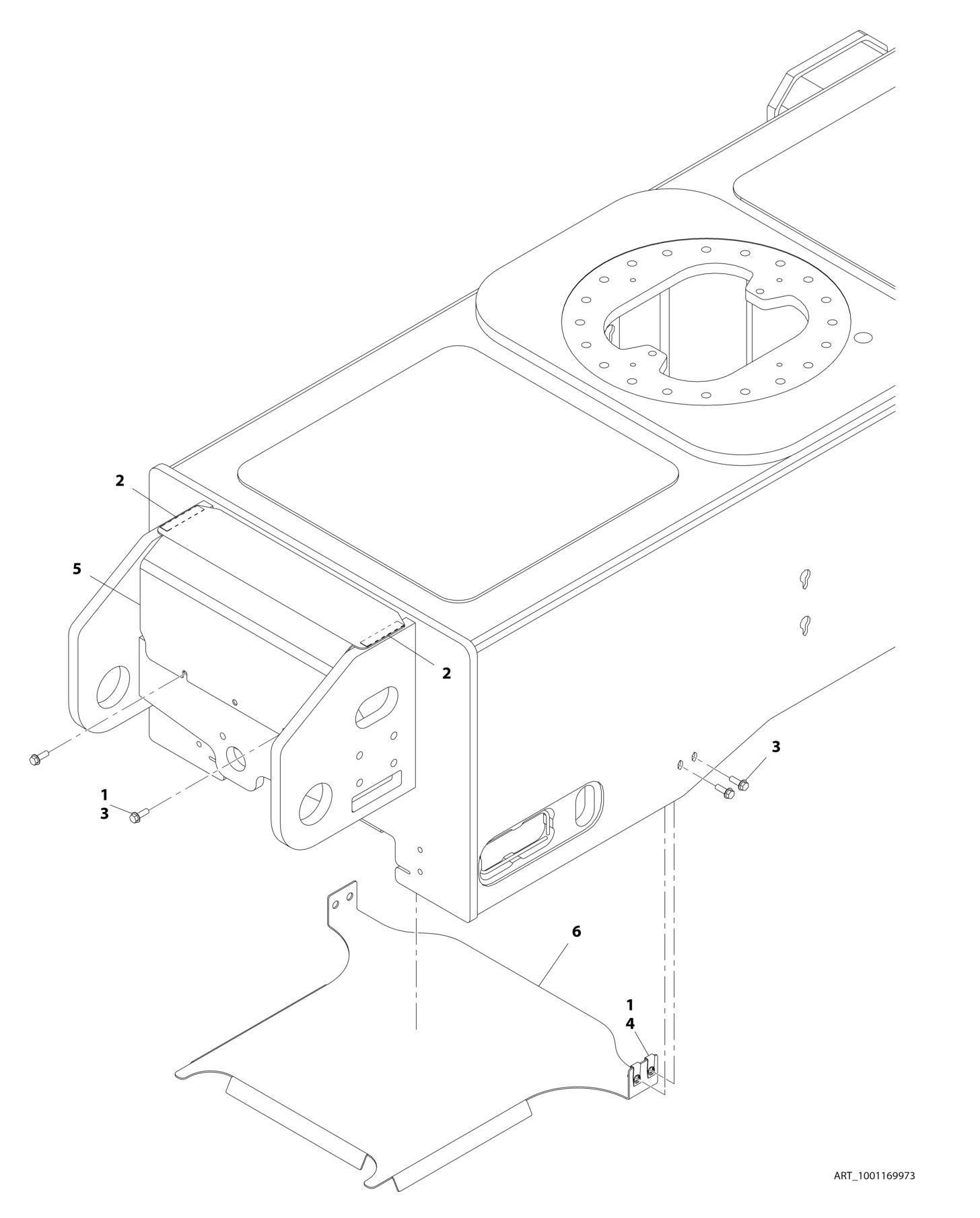

FIGURE 1-21. FRAME SHIELDS INSTALLATION - WITHOUT TOW PACKAGE

ITEM PART NUMBER QTY

DESCRIPTION

1001169973 Ref FRAME SHIELD INSTALLATION - WITHOUT TOW BAR 1 0100011 AR Compound, Locking 2 4280296 8 in / 20.3cm Strip, Wear 3 5251014 6 Bolt M10 x 30 4 1001118972 4 Nut M10 x 1.5 5 1001169086 1 Plate, Cover 6 1001169955 1 Plate, Valve Cover

REV
