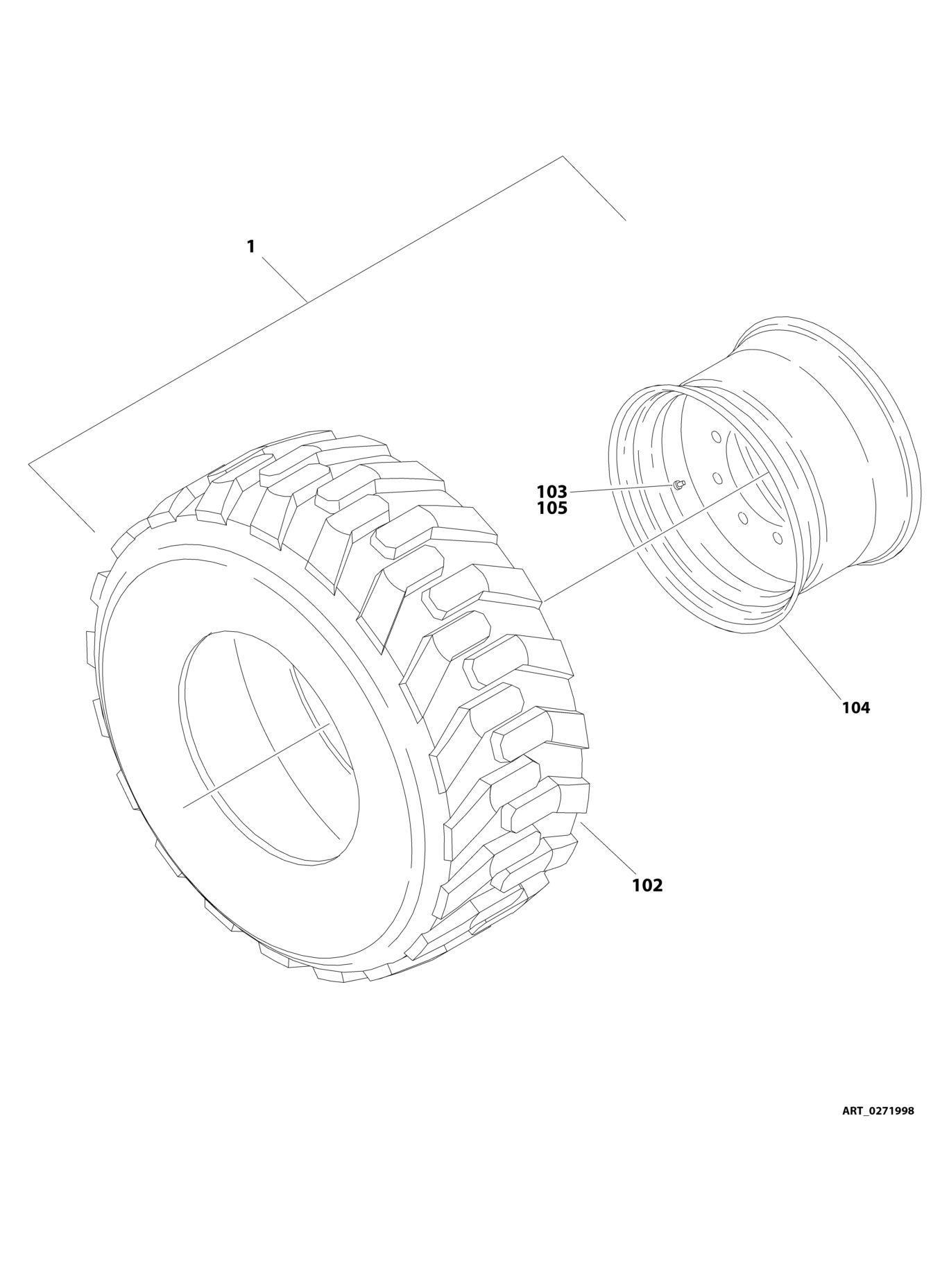

FIGURE 1-14. TIRE AND WHEEL INSTALLATION - 14 X 176.5 FOAM FILLED (400S HC3 & 460SJ HC3
ITEM PART NUMBER QTY DESCRIPTION REV
0271998 Ref TIRE AND WHEEL INSTALLATION - 14 X 17.5 FOAM FILLED B Ref Note: Assemblies may require ballast/foam filling to manufacturer's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly. 1 1001148875 Ref Tire and Wheel Assembly - 14 x 17.5 (RH Side) F 1 1001148876 Ref Tire and Wheel Assembly - 14 x 17.5 (LH Side) F 102 4520259 4 Tire - 14 x 17.5 103 4641122 4 Valve 104 1001146397 4 Rim, Wheel 105 1001149953 4 Cap, Valve Stem
