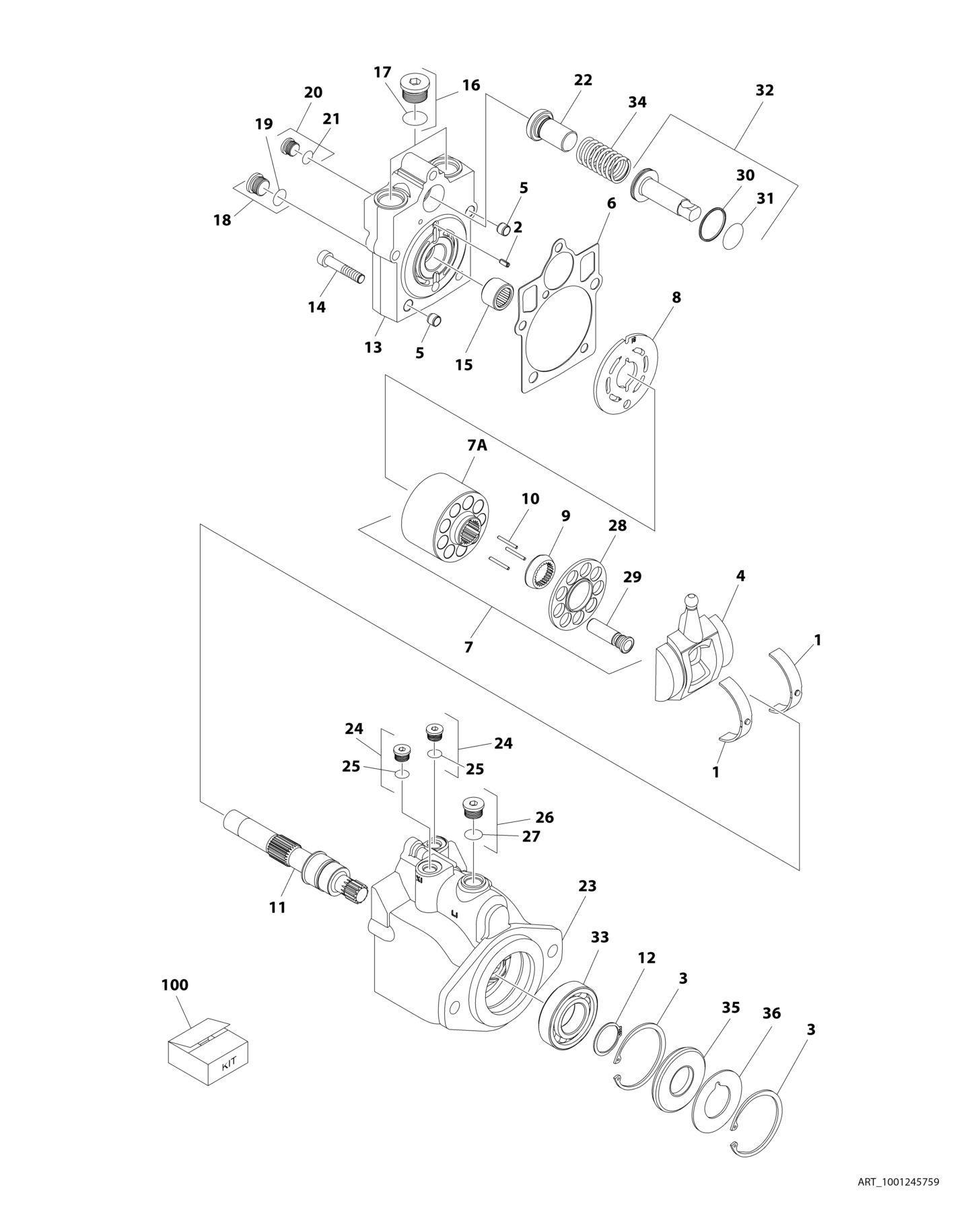

FIGURE 1-12. DRIVE MOTOR ASSEMBLY (460SJ HC3

FIGURE 1-12. DRIVE MOTOR ASSEMBLY (460SJ HC3)

FIGURE 1-12. DRIVE MOTOR ASSEMBLY (460SJ HC3)

ITEM PART NUMBER QTY

DESCRIPTION

1001245759 Ref DRIVE MOTOR ASSEMBLY 1 70007145 1 Bearing Kit 2 7007446 1 Pin 3 7007438 2 Ring, Retaining 4 70000794 1 Swash Plate 5 70003628 2 Pin 6 See Note NSS Gasket (Note: Use Item 100) 7 7027740 1 Cylinder Block Kit (Includes Items 7A, 9, 28 & 29) 7A 70007146 1 Block, Cylinder 8 70000854 1 Plate, Valve 9 70000856 1 Guide, Slipper Retainer 10 7021275 3 Pin, Slipper Hold Down 11 7023910 1 Shaft 12 7007439 1 Ring, Retaining 13 70000795 1 Cap, End - Axial 14 7022368 5 Screw 15 7021249 1 Bearing, Needle 16 7007419 1 Plug (Includes Item 17) 17 See Note NSS O-Ring (Note: Use Item 17 or 100) 18 7022321 1 Plug (Includes Item 19) 19 See Note NSS O-Ring (Note: Use Item 19 or 100) 20 2220883 1 Plug (Includes Item 21) 21 See Note NSS O-Ring (Note: Use Item 21 or 100) 22 70007142 1 Seat, Spring 23 70001932 1 Housing 24 7007420 2 Plug (Includes Item 25) 25 See Note NSS O-Ring (Note: Use Item 25 or 100) 26 7022321 1 Plug (Includes Item 27) 27 See Note NSS O-Ring (Note: Use Item 27 or 100) 28 7000857 1 Retainer, Slipper 29 7024865 9 Piston Assembly 30 See Note NSS O-Ring (Note: Use Item 100) 31 See Note NSS Ring, Seal (Note: Use Item 100) 32 7024871 1 Piston, Servo (Includes ltems 30 & 31) 33 70007143 1 Bearing 34 7022326 1 Spring 35 See Note 1 Seal, Lip (Note: Use Item 100) 36 7022371 1 Washer, Support 37 Ref KIT OPTIONS: 100 7022328 1 Seal Kit (Includes Items 6, 17, 19, 21, 25, 27, 30 & 35)

REV

C
