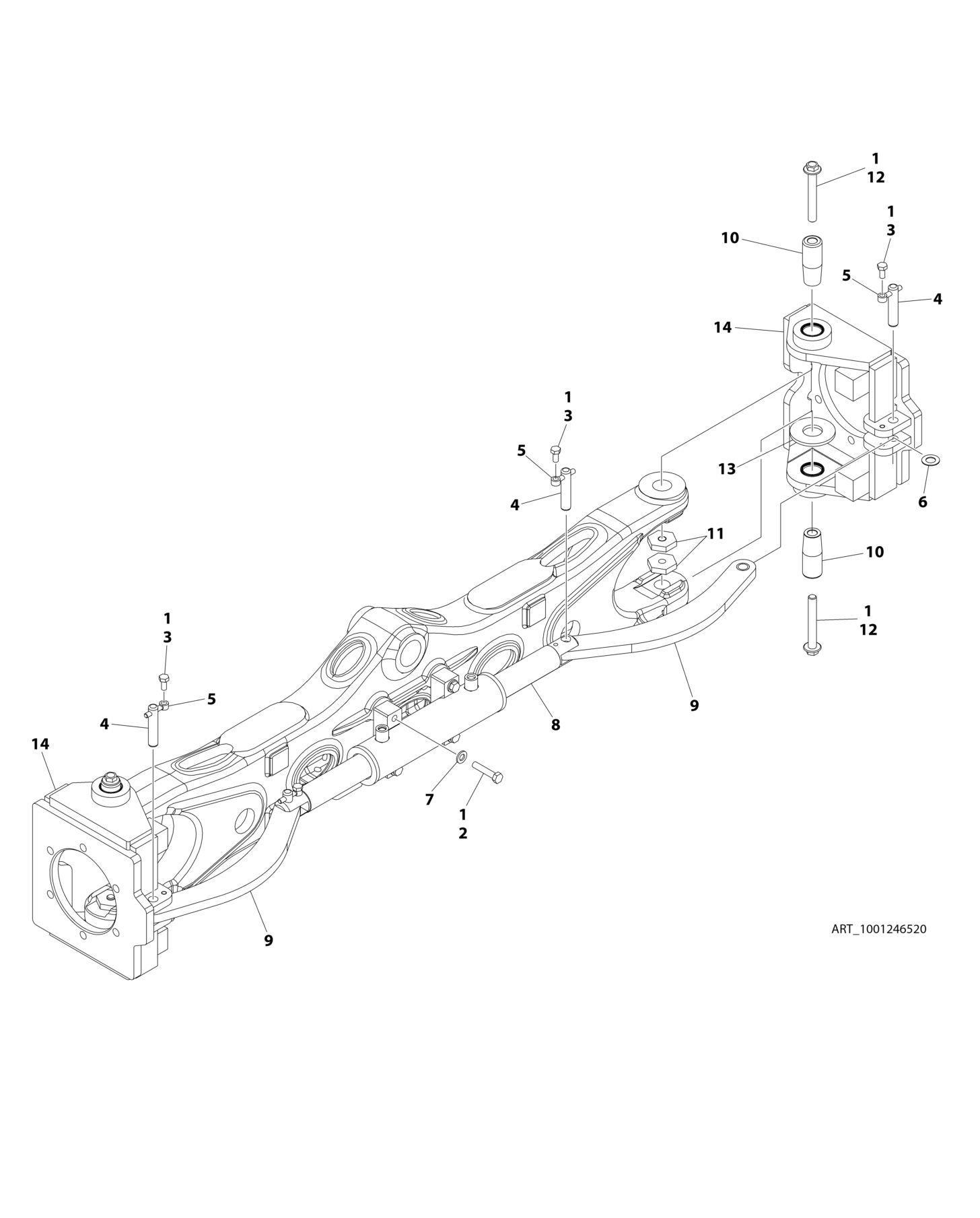

FIGURE 1-3. STEER INSTALLATION - WITHOUT TOW PACKAGE (460SJ HC3

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

E300007713

FIGURE 1-3. STEER INSTALLATION - WITHOUT TOW PACKAGE (460SJ HC3)

ITEM PART NUMBER QTY

DESCRIPTION

1001246520 Ref STEER INSTALLATION - WITHOUT TOW PACKAGE 1 0100011 AR Compound, Locking 2 0711220 4 Bolt M12 x 60 Grade 10.9 3 0761011 4 Bolt M10 x 22 4 3423304 4 Pin 5 3841520 4 Keeper 6 4740086 4 Washer 7 5241200 4 Washer M12 8 1001163178 1 Steer Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 9 1001163179 2 Link 9 1001164209 4 Bearing (2 Per Link) 10 1001163405 4 Kingpin 11 1001176848 4 Nut M16 12 1001190368 4 Bolt M16 x 120 13 1001233139 2 Bearing, Thrust 14 1001246551 2 Knuckle
