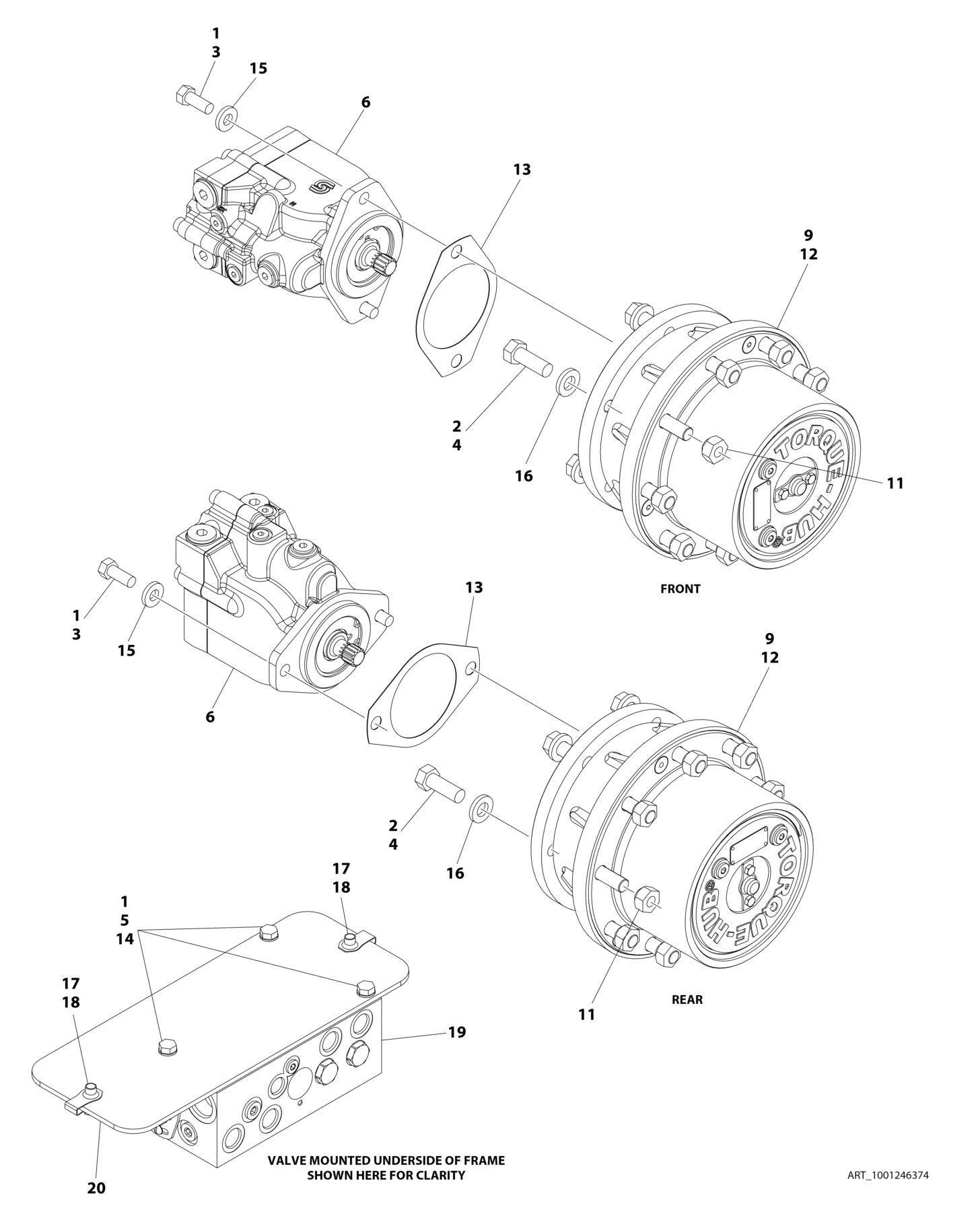

FIGURE 1-7. WHEEL DRIVE AND FRAME VALVES INSTALLATION (460SJ HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001246374 Ref WHEEL DRIVE AND FRAME VALVES INSTALLATION 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0681810 8 Bolt 1/2 x 1-1/4 (Grade 8) 4 0682014 24 Bolt 5/8 x 1-3/4 (Grade 8) 5 0761012 3 Bolt M10 x 25 6 1001245759 4 Drive Motor Assembly (See Separate Breakdown in this Section) 9 3020008 0.75 gl Lubricant 11 3300106 36 Lugnut 12 1001252541 4 Hub 13 3960526 4 Gasket, Brake 14 4812000 3 Washer M10 15 4891800 8 Washer 1/2 16 4892000 24 Washer 5/8 17 5251012 2 Bolt M10 x 25 18 1001118972 2 Nut M10 x 1.5 19 1001162537 1 Traction Valve Assembly (See Separate Breakdown in this Section) 20 1001163959 1 Plate, Mounting
REV
B
