FIGURE 1-2. STEER INSTALLATION - WITHOUT TOW PACKAGE (400S HC3

from JLG 400S HC3 460SJ HC3 Parts Manual (31215870) - PDF DOWNLOAD

by www.heydownloads.com

E300007713

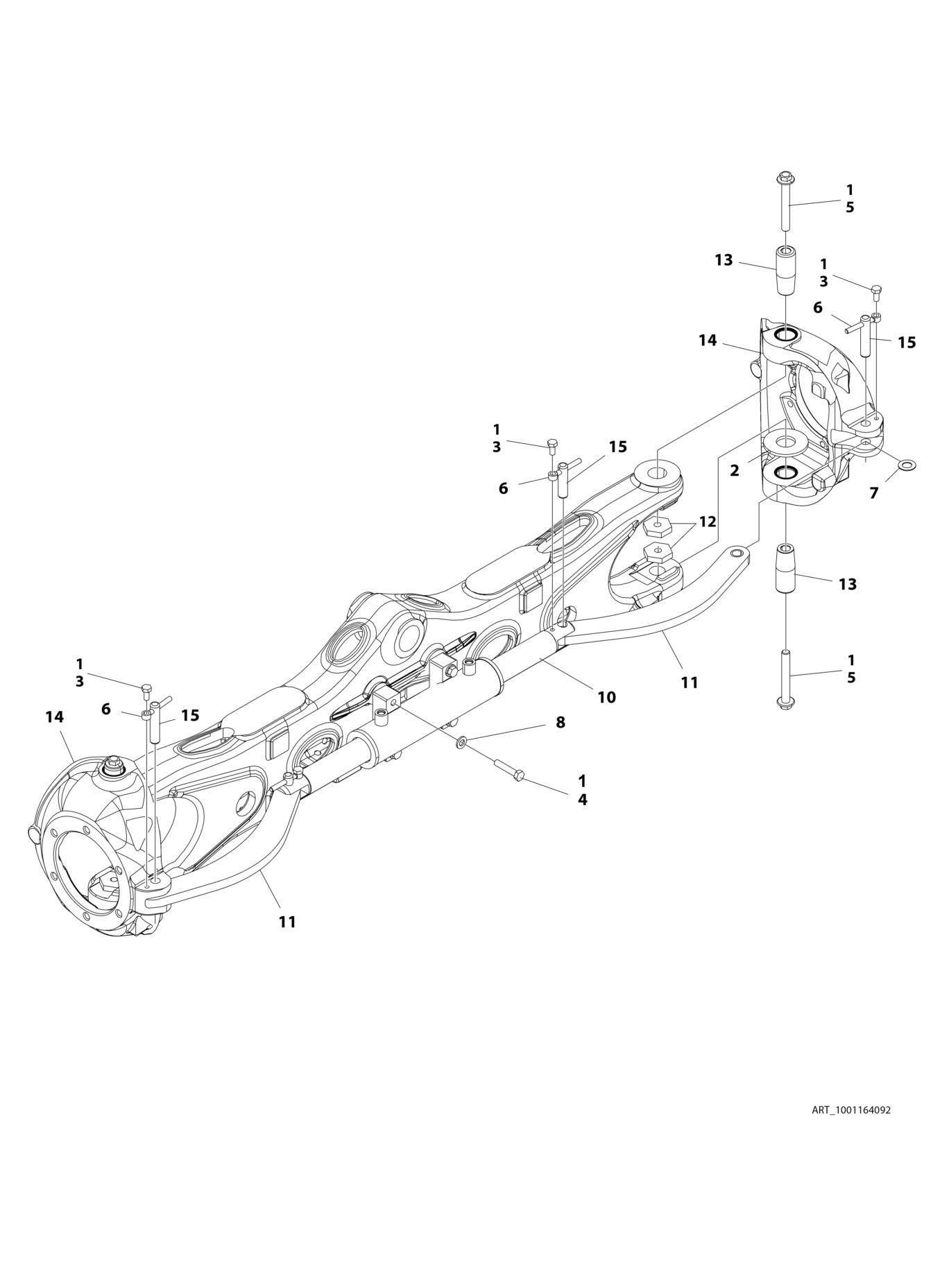

FIGURE 1-2. STEER INSTALLATION - WITHOUT TOW PACKAGE (400S HC3)

ITEM PART NUMBER QTY

DESCRIPTION

1001164092 Ref STEER INSTALLATION WITHOUT TOW PACKAGE 1 0100011 AR Compound, Locking 2 1001233139 2 Bearing, Thrust 3 0761011 4 Bolt M10 x 22 4 0711220 4 Bolt M12 x 60 Grade 10.9 5 1001190368 4 Bolt M16 x 120 6 3841143 4 Keeper, Pin 7 4740086 4 Washer 8 5241200 4 Washer M12 10 1001163178 1 Steer Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 11 1001163179 2 Link 11 1001164209 4 Bearing (2 Per Link) 12 1001176848 4 Nut M16 13 1001163405 4 Kingpin 14 1001163715 2 Spindle 14 0961948 4 Bearing (2 Per Spindle) 14 1001163716 8 Seal (4 Per Spindle) 15 3423304 4 Pin

REV
