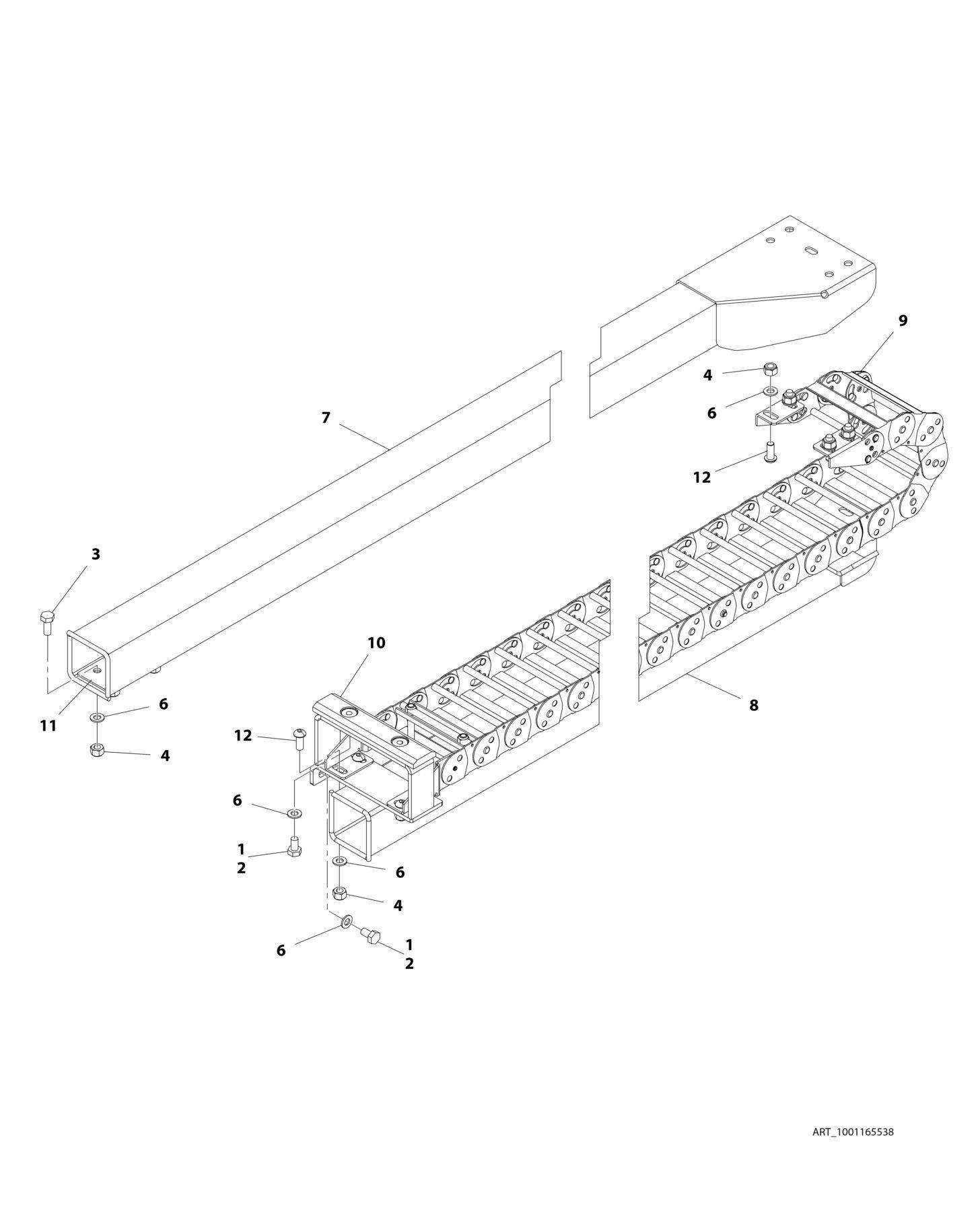

FIGURE 4-11. POWER TRACK INSTALLATION

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

FIGURE 5-27. SOFT TOUCH INSTALLATION - 6FT (1.83M) FALL ARREST PLATFORM (OPTIONAL

FIGURE 4-11. POWER TRACK INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001165538 Ref POWER TRACK INSTALLATION 1 0100011 AR Compound, Locking 2 0761009 10 Bolt M10 x 18 3 0761012 4 Bolt M10 x 25 4 3291005 12 Nut M10 6 4812000 22 Washer M10 7 1001165531 1 Tube, Push 8 1001165534 1 Tube, Carrier 9 1001224888 1 Power Track 9 70006255 1 Repair Section without Clamp - 10 Links 9 70006270 1 Feet, Mounting (Includes 1 each Left and Right Mounting Feet) 10 1001169611 1 Pad, Wear 11 1001176899 1 Plate, Support 12 1001173763 8 Screw M10 x 25
