FIGURE 5-22. CONTROLLER ASSEMBLY (LIFT AND SWING

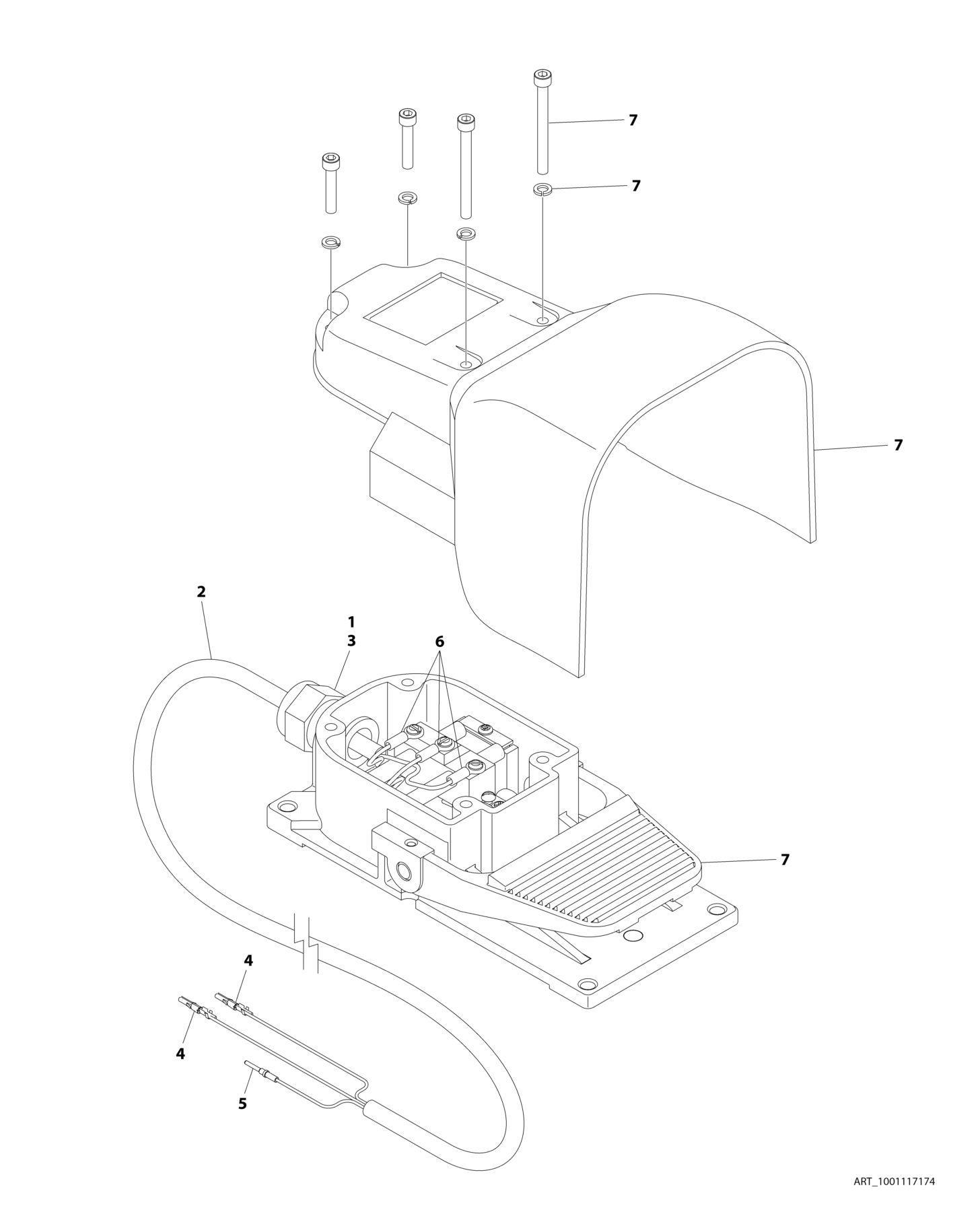

FIGURE 5-23. FOOTSWITCH ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001117174 Ref FOOTSWITCH ASSEMBLY 1 0100020 AR Sealant 2 1060918 7.5 ft/ 2.3m Cable, Electrical - 18/3

3 4460071 1 Connector, Strain Relief 4 4460226 2 Socket, Female 5 4460464 1 Pin, Male 6 1001098122 3 Terminal 7 1001117172 1 Footswitch 7 70002902 1 Switch, 20Amp 7 70002903 1 Gasket 7 70002905 1 Cover 7 70002904 1 Kit, Replacement Bolt
