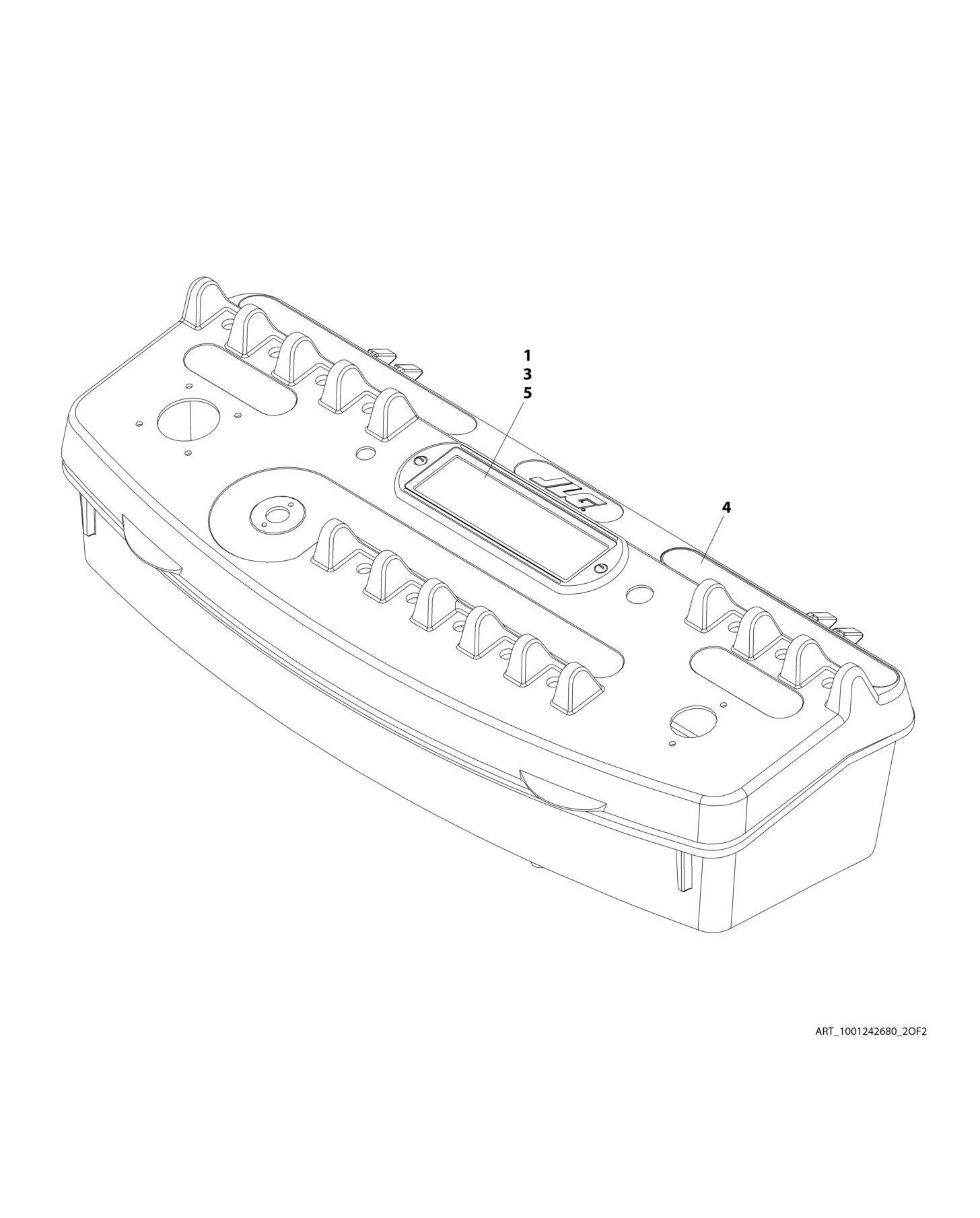

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

FIGURE 5-24. LIGHT PANEL INSTALLATION - 400S

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

ITEM PART NUMBER QTY

DESCRIPTION

1001242680 Ref LIGHT PANEL INSTALLATION - 460SJ 1 0100035 AR Compound, Locking 3 3911010 2 Screw #10 x 5/8 4 1001184618 1 Decal - Stop and Auxiliary Power 5 1001237544 1 Light Panel Electrical Assembly 5 1001236087 1 Overlay 5 1001238745 1 Housing and Seal 5 1001187807 1 Light Panel PCB

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

Next Article

FIGURE 5-24. LIGHT PANEL INSTALLATION - 400S

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

ITEM PART NUMBER QTY

DESCRIPTION

REV
