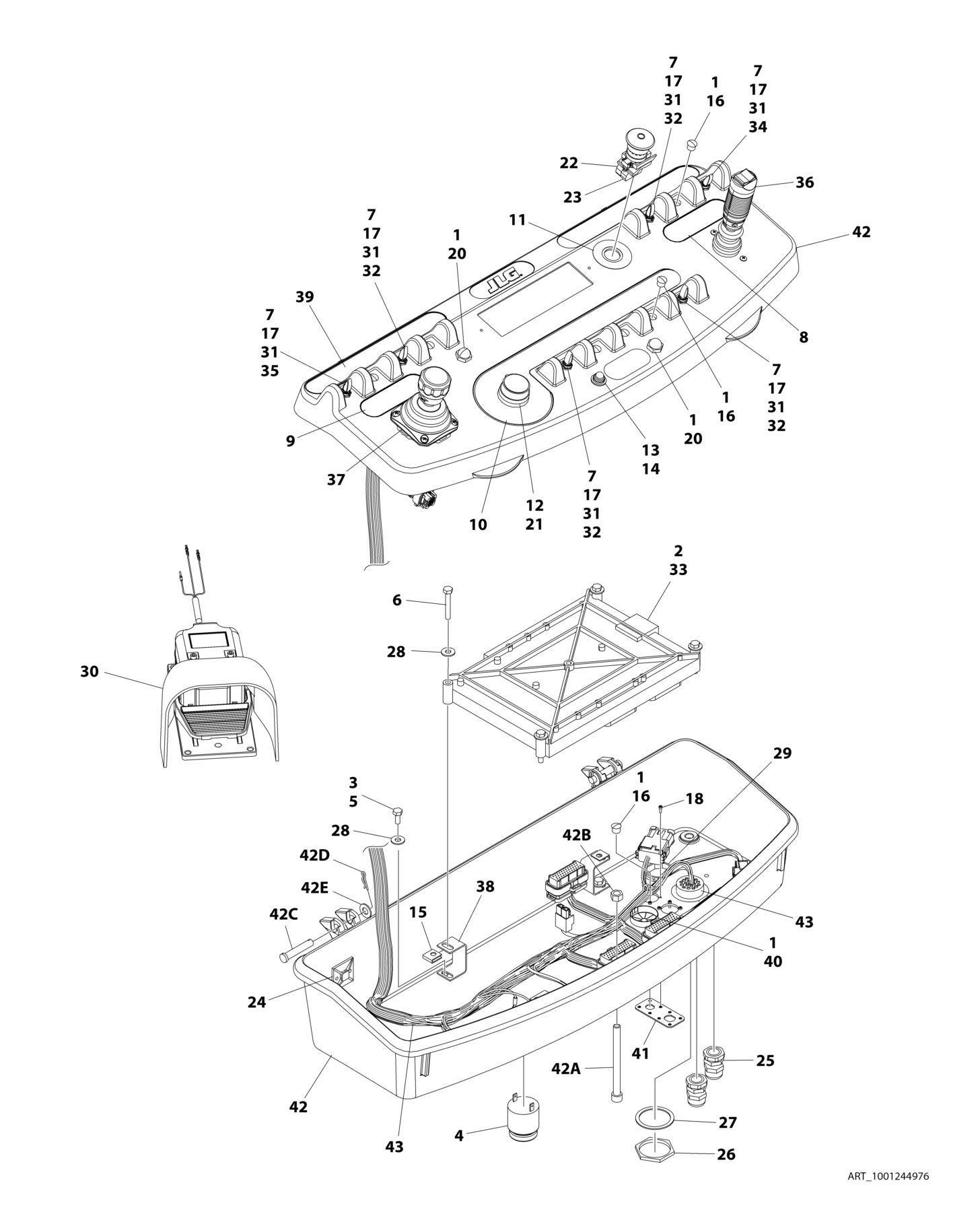

FIGURE 5-20. PLATFORM CONSOLE BOX ASSEMBLY
FIGURE 5-20. PLATFORM CONSOLE BOX ASSEMBLY
FIGURE 5-20. PLATFORM CONSOLE BOX ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001244976 Ref PLATFORM CONSOLE BOX ASSEMBLY 1 0100009 AR Sealant 2 0100048 AR Adhesive 3 0100035 AR Compound, Locking 4 0140011 1 Alarm 5 0641405 4 Bolt 1/4 x 5/8 6 0641414 4 Bolt 1/4 x 1-3/4 7 4740397 6 Spacer 8 1702565 1 Decal - Drive and Steer 9 1702566 1 Decal - Lift and Swing 10 1702567 1 Decal - Function Speed 11 1704260 1 Decal - EMS 12 2560136 1 Handle, Knob 13 2920028 1 Light, Indicator 14 2920029 1 Bulb, Light 15 3300353 4 Nut, Tinnerman 16 3520054 7 Plug 17 3790012 6 O-Ring 18 3900349 8 Screw M2.5 19 4240099 AR Tie-Strap (Not Shown) 20 4360387 2 Switch, Pushbutton 21 4360407 1 Switch, Potentiometer 22 4360475 1 Switch, Emergency 22 7020175 1 Cap, Red 22 7020176 1 Contact Block 23 4360476 1 Block, Contact 24 4460234 6 Terminal 25 4460428 2 Connector, Strain Relief 26 4460470 1 Nut, Terminal 27 4460471 1 Washer 28 4751400 8 Washer 1/4 29 1001110434 1 Plug 30 1001117174 1 Footswitch Assembly (See Separate Breakdown in this Section) 31 1001155044 6 Nut 15/32 32 1001155045 4 Switch, Toggle 33 1001157196 1 Controller, Module (Note: Re-calibration Required when Replaced) 34 1001159256 1 Switch, Toggle 35 1001161709 1 Switch, Toggle 36 1001166538 NLA Controller Assembly (Drive and Steer) (Use p/n 1001212415) (See Separate Breakdown in this Section) 37 1001166539 1 Controller Assembly (Lift and Swing) (See Separate Breakdown in this Section) 38 1001172760 4 Bracket 39 1001184626 1 Decal - Horn 40 1001185281 1 Plug 41 1001213882 1 Connector Mount 42 1001215228 1 Platform Console Box 42A 0630568 1 Capscrew 3/8 x 4-1/2 42B 3311601 1 Nut 3/8 42C 3430616 2 Pin
REV
A
ITEM PART NUMBER QTY DESCRIPTION
42D 3470003 2 Hairpin 42E 4711600 2 Washer 3/8 43 1001238254 1 Harness, Platform Console Box (See Separate Breakdown in ELECTRICAL SECTION)
