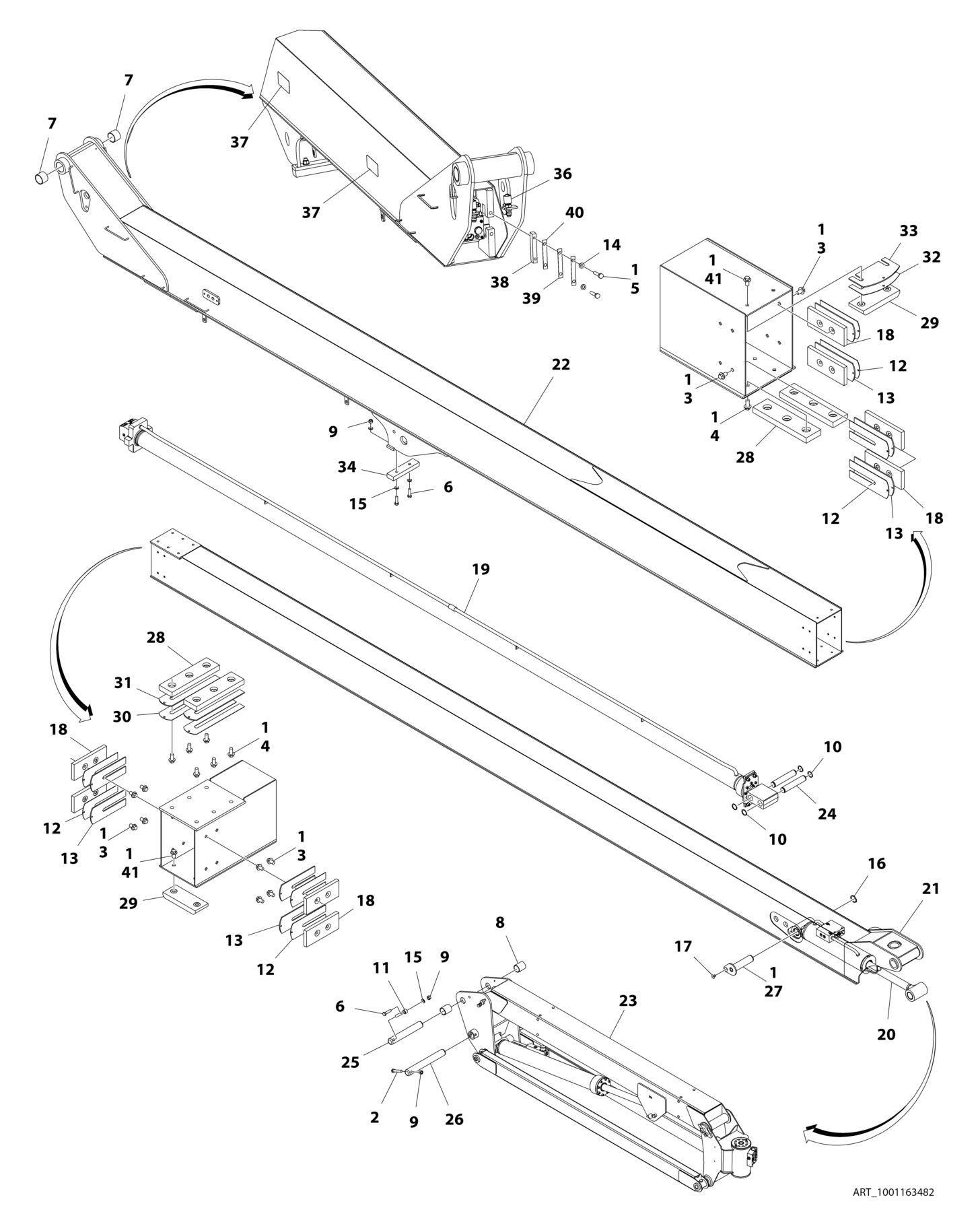

FIGURE 4-5. MAIN BOOM ASSEMBLY - 460SJ (USA BUILT MACHINES
ITEM PART NUMBER QTY DESCRIPTION
1001163482 Ref MAIN BOOM ASSEMBLY 1 0100011 AR Compound, Locking 2 0701222 1 Bolt, M12 x 70 3 5251008 16 Bolt, M10 x 16 4 5251011 12 Bolt, M10 x 22 5 0761019 4 Bolt, M10 x 55 6 0761217 3 Bolt, M12 x 45 7 0961950 2 Bearing 8 0962348 2 Bearing 9 3291205 4 Nut, Lock M12 x 1.75 10 3760133 4 Ring, Retaining 11 3841203 1 Keeper, Pin 12 4070897 AR Shim, 18Ga 13 4070898 AR Shim, 11Ga 14 4812000 4 Washer, M10 15 4812100 5 Washer, M12 16 1001099560 1 Ring, Retaining 17 1001137032 1 Screw M10 x 16 18 1001169380 8 Pad 19 1001251075 1 Telescope Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 20 1001163386 1 Level (Platform Slave) Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 21 1001163483 1 Fly, Boom 22 1001163492 1 Base, Boom 23 1001247048 1 Jib Boom Assembly (See Separate Breakdown in this Section) 24 1001168842 2 Pin 25 3422793 1 Pin 26 1001168847 1 Pin 27 1001168849 1 Pin 28 1001169284 4 Pad 29 1001169285 2 Pad 30 1001169286 AR Shim 31 1001169287 AR Shim 32 1001169288 AR Shim 33 1001169289 AR Shim 34 1001171067 1 Pad 36 1001171112 2 Hose 37 1001171324 2 Cover 38 1001171667 2 Bar 39 1001171966 AR Shim, 20Ga 40 1001171967 AR Shim, 16Ga 41 5251009 4 Bolt, M10 x 18
REV
J
