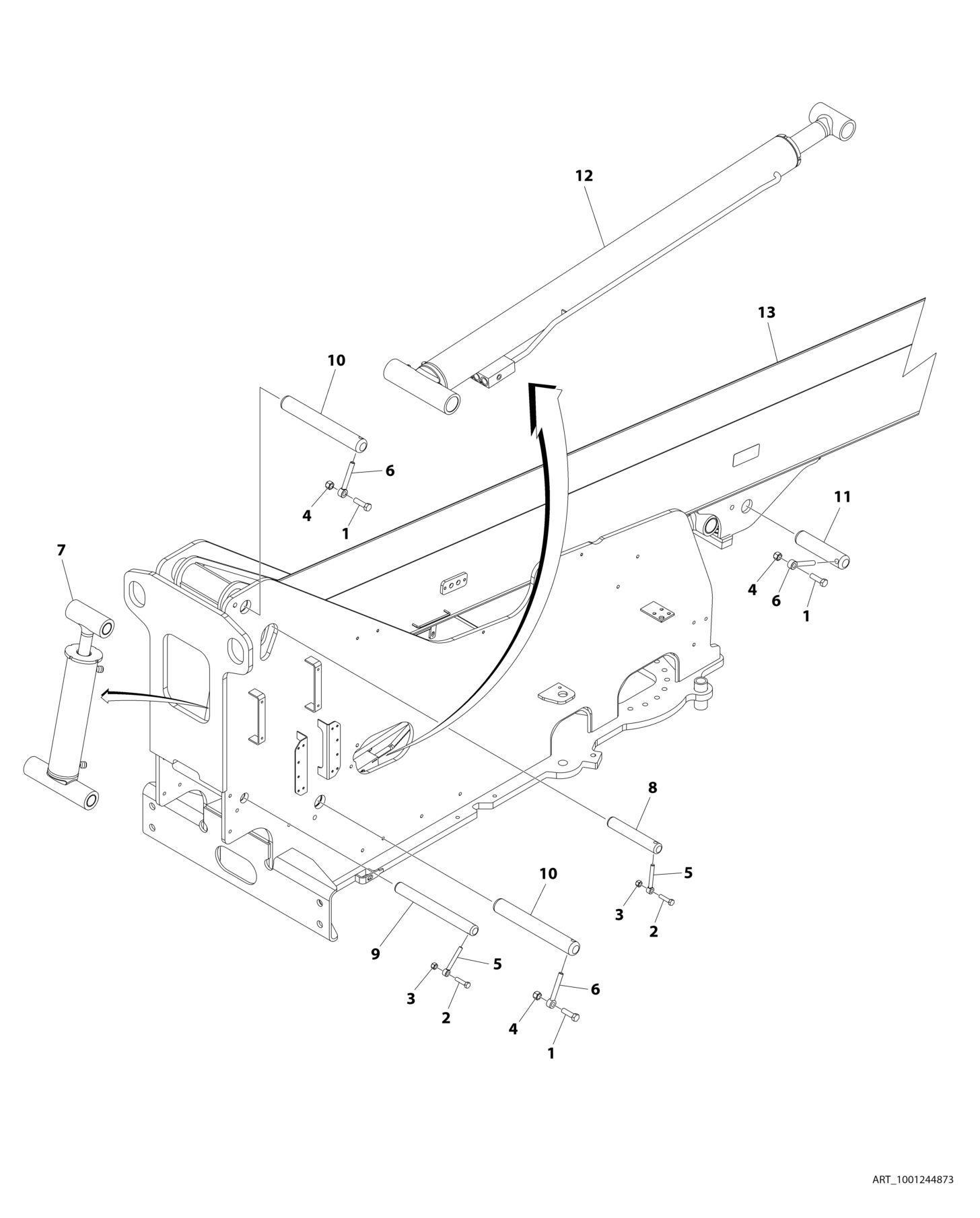

FIGURE 4-1. BOOM AND CYLINDERS INSTALLATION - 400S
ITEM PART NUMBER QTY
DESCRIPTION
1001244873 Ref BOOM AND CYLINDERS INSTALLATION – 400S 1 0701619 3 Bolt, M16 x 55 2 0761218 2 Bolt, M12 x 50 3 3291205 2 Nut, Lock M12 x 1.75 4 3291605 3 Nut, Lock M16 x 2 5 3841203 2 Keeper, Pin 6 3841258 3 Keeper, Pin 7 1001163385 1 Master Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 8 1001168843 1 Pin 9 1001168844 1 Pin 10 1001168845 2 Pin 11 1001168854 1 Pin 12 1001228092 1 Lift Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 13 1001244874 1 Main Boom Assembly - 400S (See Separate Breakdown in this Section)
