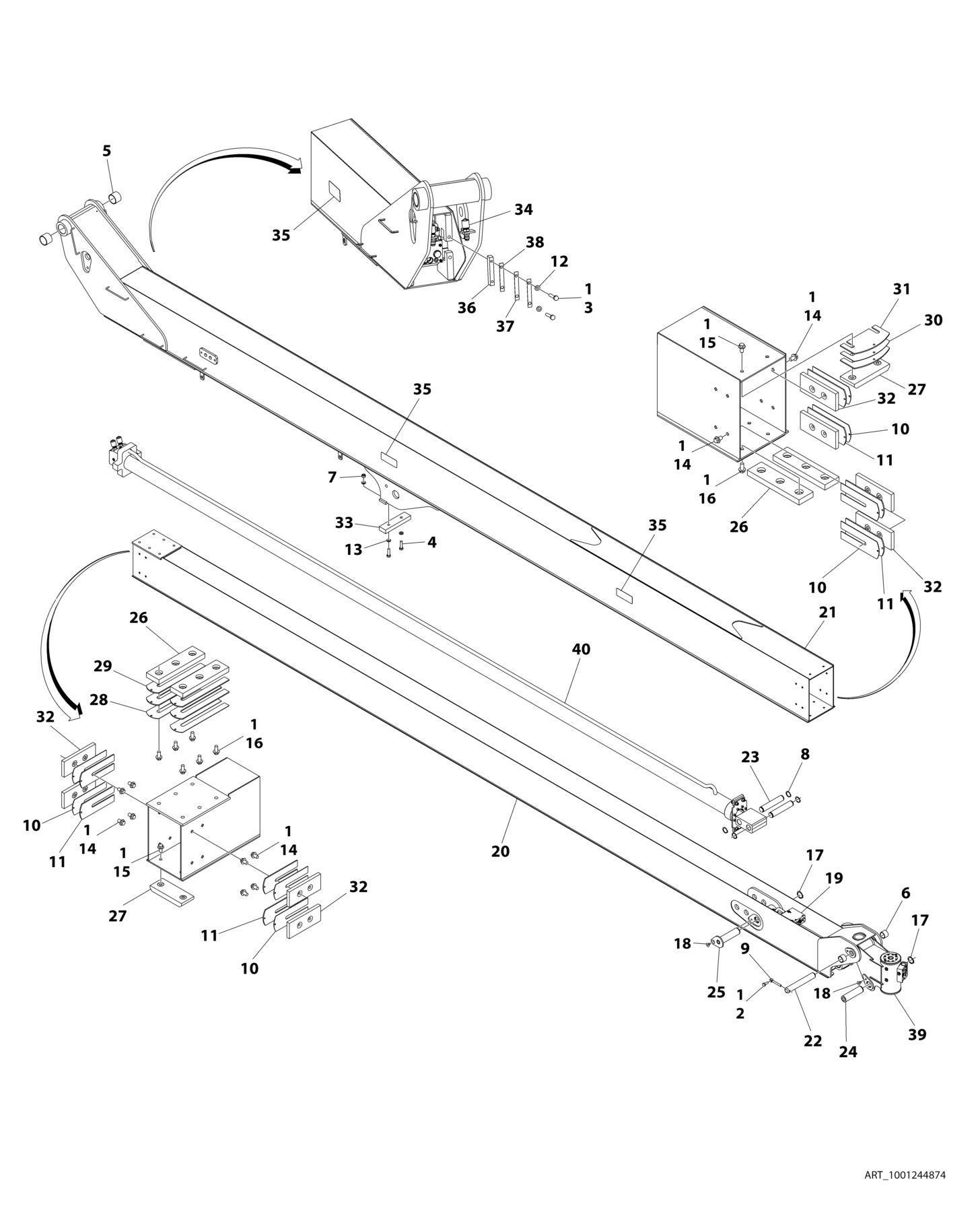

FIGURE 4-4. MAIN BOOM ASSEMBLY - 400S
FIGURE 4-4. MAIN BOOM ASSEMBLY - 400S
FIGURE 4-4. MAIN BOOM ASSEMBLY - 400S
ITEM PART NUMBER QTY DESCRIPTION
1001244874 Ref MAIN BOOM ASSEMBLY 1 0100011 AR Compound, Locking 2 0761012 1 Bolt, M10 x 25 3 0761019 4 Bolt M10 x 55 4 0761217 2 Bolt M12 x 45 5 0961950 2 Bearing 6 0961951 2 Bushing 7 3291205 2 Nut M12 8 3760133 4 Ring 9 3841143 1 Keeper, Pin 10 4070897 AR Shim 18 Ga 11 4070898 AR Shim 11 Ga 12 4812000 4 Washer M10 13 4812100 4 Washer M12 14 5251008 16 Bolt M10 x 16 15 5251009 4 Bolt M10 x 18 16 5251011 12 Bolt, M10 x 22 17 1001099560 2 Ring, Retaining 18 1001137032 2 Screw M10 x 16 19 1001163386 1 Level (Platform Slave) Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 20 1001163459 1 Fly, Boom 21 1001163470 1 Base, Boom 22 1001168841 1 Pin 23 1001168842 2 Pin 24 1001168848 1 Pin 25 1001168849 1 Pin 26 1001169284 4 Pad 27 1001169285 2 Pad 28 1001169286 AR Shim 29 1001169287 AR Shim 30 1001169288 AR Shim 31 1001169289 AR Shim 32 1001169380 8 Pad 33 1001171067 1 Pad 34 1001171112 2 Hose 35 1001171324 4 Cover 36 1001171667 2 Bar 37 1001171966 AR Shim 20Ga 38 1001171967 AR Shim 16Ga 39 1001221927 1 Platform Rotator Assembly (See Separate Breakdown in this Section) 40 1001251075 1 Telescope Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION)
REV
A
