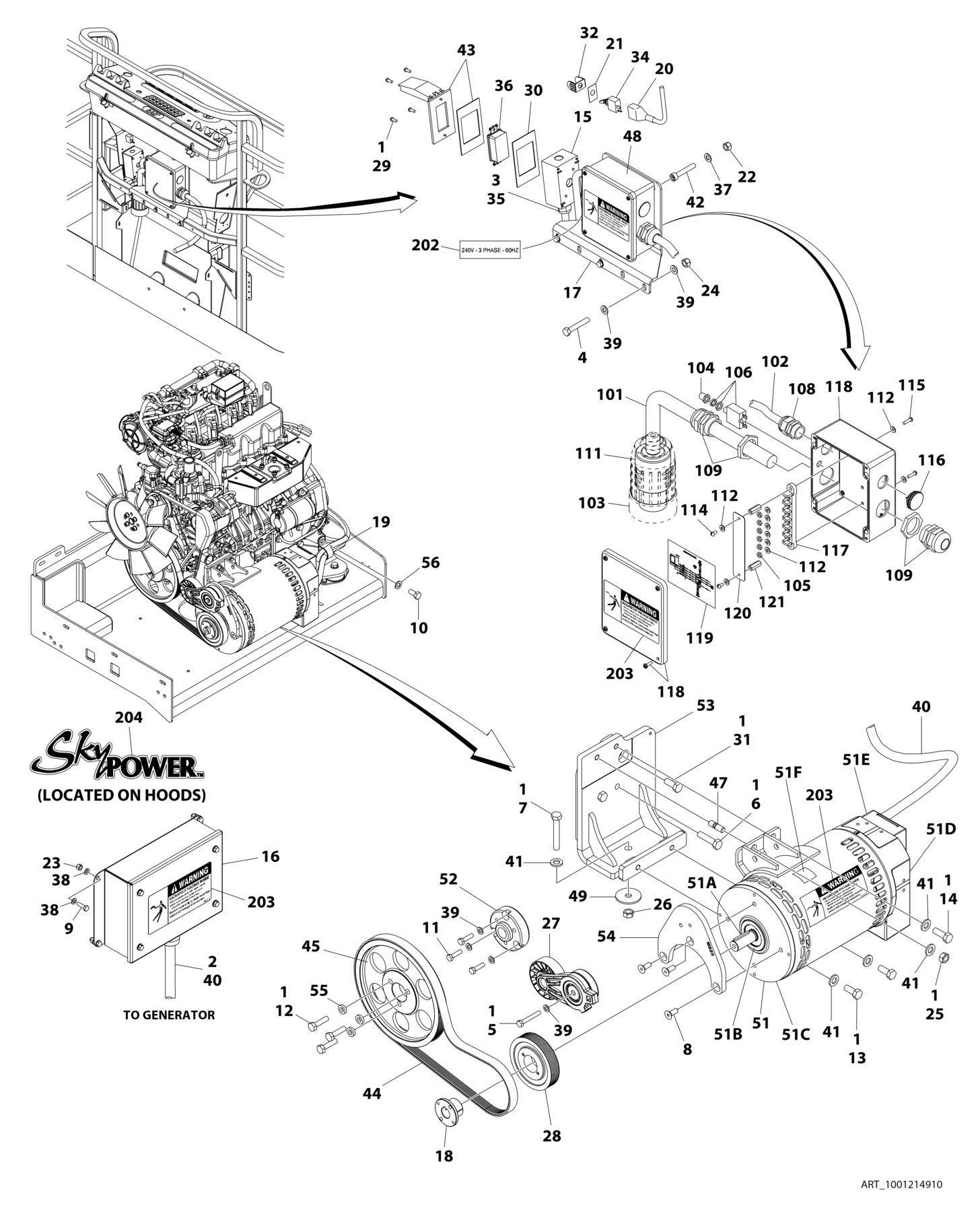

FIGURE 3-53. GENERATOR INSTALLATION - 7500W/60HZ (KUBOTA ENGINE
ITEM PART NUMBER QTY DESCRIPTION REV
1001214910 Ref GENERATOR INSTALLATION - 7500W/60HZ (KUBOTA ENGINE) C 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0100079 AR Sealant 4 0700818 3 Bolt M8 x 50 5 0700819 1 Bolt M8 x 55 6 1001217344 2 Bolt M12 x 50 7 0711224 AR Bolt M12 x 80 Grade 10.9 7 0701224 AR Bolt M12 x 80 8 0741608 3 Screw 3/8 x 1 9 0760610 4 Bolt M6 x 20 10 1001217345 1 Bolt M14 x 30 11 0760814 3 Bolt M8 x 30 12 0701016 3 Bolt M10 x 40 13 0761214 2 Bolt M12 x 30 14 0761215 1 Bolt M12 x 35 15 0860038 1 Box, Switch 16 0861538 1 Control Box Assembly 16 7024488 1 Card, Circuit - Generator Power 16 See Note NSS Fuse (Note: Not Available - Purchase Locally) 16 7024489 1 Card, Circuit - Control 16 70000619 1 Harness, Control Box (Internal) 17 0902888 1 Bracket 18 0962520 1 Bushing 19 84521062 1 Clamp 20 2820031 AR Heat Shrink 21 3252764 1 Nameplate 22 3290505 4 Nut M5 23 3290605 4 Nut M6 24 3290805 3 Nut M8 25 3291201 AR Nut M12 26 3331211 AR Nut M12 27 3580317 1 Pulley 28 3580318 1 Pulley 29 3910606 4 Screw #6 x 3/8 30 3960422 1 Gasket 31 1001217342 1 Bolt M12 x 30 32 4060802 1 Guard, Switch 33 4240099 AR Tie-Strap (Not Shown) 34 4360336 1 Switch, Toggle 35 4460071 1 Connector, Strain Relief 36 4460346 1 Receptacle 37 4811600 4 Washer M5 38 4811700 8 Washer M6 39 4811900 10 Washer M8 40 4922925 1 Harness, Generator 40 4460225 1 Plug, Male - 6 Position (Plugs into Generator) 40 See Note NSS Socket, Female (Use with 4460225) 40 See Note NSS Seal, Plug (Use with 4460225) 40 See Note NSS Seal, Interface (Use with 4460225)
ITEM PART NUMBER QTY DESCRIPTION
41 5241200 5 Washer M12 Hardened 42 1001104029 4 Screw M5 x 30 43 1001110873 1 Shield, Cover 44 0480129 1 Belt 45 1001147233 1 Pulley 47 1001155041 1 Stud 48 1001157592 1 Junction Box Assembly (See Items 101-121 for Breakdown) 49 1001168018 1 Washer, Snubbing 50 1001174675 1 Wiring Diagram (Not Shown) 50 4922641 1 Harness, On/Off Switch (Not Shown - Located at Platform) 51 1001212223 1 Generator Assembly 51 70001100 1 Rotor (Includes p/n 70001384 & 70000863) (Not Shown) 51 70001384 1 Bearing, Ball Radial (Not Shown) 51 70000863 1 Fan (Not Shown) 51 70006093 1 Stator (Not Shown) 51 70002297 1 Stud 51 70003631 1 Brushholder Assembly (Not Shown) 51A 70004099 1 Key 51B 70001966 1 Bearing, Ball Radial (Located in Belt Tensioner Endbell) 51B 70003708 1 Ring, Internal Retaining (Located in Belt Tensioner Endbell) 51B 70003709 1 Ring, External Retaining (Located in Belt Tensioner Endbell) 51C 70004092 1 Endbell, Belt Tensioner 51D 70004094 1 Endbell, Brush Block 51E 70006094 1 Shroud 51E 70002291 1 Insulator, Endbell 51E 7027799 1 Block, Connector 6 Position (Not Shown) 51E 70002460 1 Nut, Brass (Attaches p/n 7027799 to Cover) (Not Shown) 51E 70006095 1 Breaker, Circuit 30Amp (Not Shown) 51E 70006096 1 Guard, Breaker (Not Shown) 51E 7026626 1 Connector, 6 Position (Includes Seal) (Not Shown - Plugs into Item 36) 51E 70004098 1 Clamp, Cable (Not Shown) 51E 70006097 1 Plate, End Panel 51E 70001974 1 Decal - Terminal Connections 51F 70001973 1 Decal - Warning Moving Parts 52 1001213029 1 Adapter, Pulley 53 1001214546 1 Support 54 1001215523 1 Support 55 1001216805 3 Spacer 56 4812200 1 Washer M14 1001157592 Ref JUNCTION BOX ASSEMBLY 101 1060343 1.5 ft/ 0.5m 102 1001179154 2.5 ft/ 0.8m Cable, Electrical 10/4
Cable, Electrical 12/3
103 1671092 1 Cover 104 3300396 1 Cover, Fuse 105 3311001 6 Nut #10 106 4360070 1 Circuit Breaker - 15Amp 108 4460425 1 Connector, Strain Relief 109 4460426 2 Connector, Strain Relief 111 4460963 1 Connector
REV
C
ITEM PART NUMBER QTY DESCRIPTION
112 4711000 10 Washer #10 114 10702077 2 Screw #10 x 3/8 115 10702082 2 Screw #10 x 3/4 116 1001152525 1 Plug 117 1001157520 1 Block, Terminal 118 1001157521 1 Box, Junction 119 1001157528 1 Decal - Wiring Schematic 120 1001158007 1 Cover, PVC 121 1001158008 2 Stand-Off 0272435 Ref DECAL INSTALLATION 202 1705375 1 Decal - 240V-3 Phase-60Hz 203 1705387 3 Decal - Hazardous Voltage 204 1705460 2 Decal - SkyPower
REV
B
