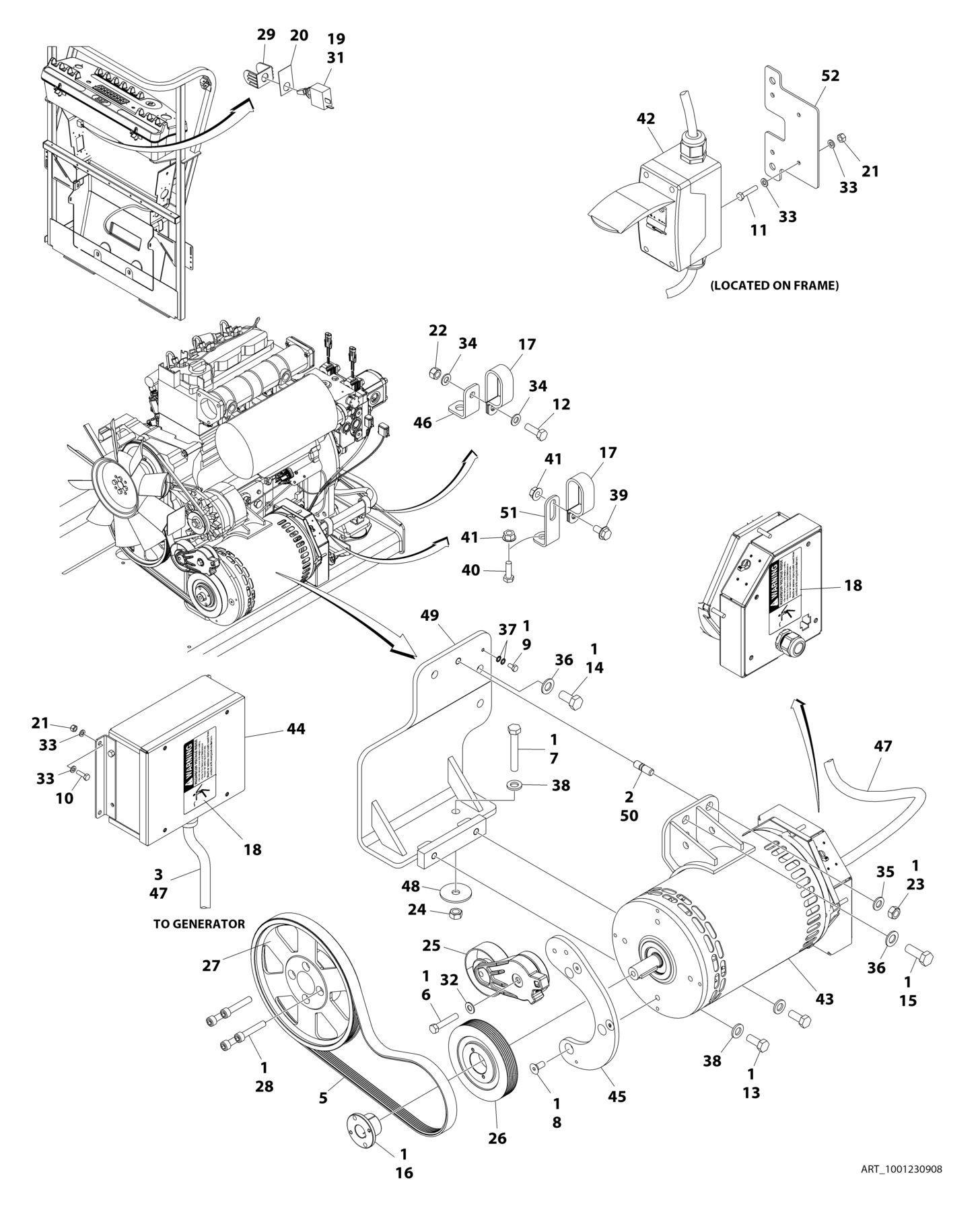

FIGURE 3-45. GENERATOR INSTALLATION - 4000W/50HZ (DEUTZ D2011 ENGINES
ITEM PART NUMBER QTY
DESCRIPTION
1001230908 Ref 4000W/50Hz GENERATOR INSTALLATION - DEUTZ D2011 ENGINES 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0100048 AR Grease, Dielectric 4 0100079 AR Sealant (Not Shown) 5 0480126 1 Belt 6 0641616 1 Bolt 3/8 x 2 7 0711224 1 Bolt M12 x 80 Grade 10.9 8 0741607 3 Screw 3/8 x 7/8 9 0760606 1 Bolt M6 x 12 10 0760610 4 Bolt M6 x 20 11 0760614 2 Bolt M6 x 30 12 0760812 1 Bolt M8 x 25 13 0761214 2 Bolt M12 x 30 14 0771414 2 Bolt M14 x 30 Grade 10.9 15 0771416 1 Bolt M14 x 40 16 0962520 1 Bushing 17 1321716 2 Clamp 18 1705489 2 Decal - Hazardous Voltage 19 2820031 0.3 ft/ 0.1m Heat Shrink 20 3251102 1 Nameplate, Generator 21 3290605 6 Nut M6 22 3290805 1 Nut M8 23 3291201 1 Nut M12 24 3331211 1 Nut M12 25 3580317 1 Pulley 26 3580319 1 Pulley 27 3580320 1 Pulley 28 4032015 4 Bolt M10 x 55 29 4060802 1 Guard, Switch 30 4240099 AR Tie-Strap (Not Shown) 31 4360336 1 Switch, Toggle 32 4711600 1 Washer 3/8 33 4811700 12 Washer M6 34 4811900 2 Washer M8 35 4812100 1 Washer M12 36 4812200 3 Washer M14 37 4871700 2 Washer M6 38 5241200 3 Washer M12 Hardened 39 5250808 1 Bolt M8 x 16 40 5250810 1 Bolt M8 x 20 41 5260800 2 Flange Nut M8 42 1001096070 1 Breaker Box Kit (50Hz) (See Separate Breakdown in ELECTRICAL SECTION) 43 1001138565 1 Generator Assembly 43 70003709 1 Ring, Retaining (External) 43 70003708 1 Ring, Retaining (Internal) 43 70001966 1 Bearing
REV
A
ITEM PART NUMBER QTY DESCRIPTION
43 70004092 1 Endbell (Shaft End) 43 70004171 1 Key 43 70004676 1 Rotor 43 70004677 1 Stator 43 70004678 1 Endbell (Rear) 43 70004679 1 Cover, Endbell (Rear) 43 70004680 1 Enclosure, Wiring 43 70004681 1 Cover, Enclosure 43 70004682 1 Switch, Reset (Located on Enclosure Cover) 43 70004683 1 Connector, Strain Relief (Located on Enclosure Cover) 44 1001138566 1 Box, Control 45 1001139357 1 Mount, Tensioner 46 1001148641 1 Bracket 47 1001152532 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 48 1001168018 1 Washer, Snubbing 49 1001173925 1 Mount 50 1001196382 1 Stud 51 1001223122 1 Support, P-Clamp 52 1001230784 1 Bracket Ref ELECTRICAL DIAGRAM COMPONENTS 101 4922641 1 Generator Switch Harness (Not Shown)
