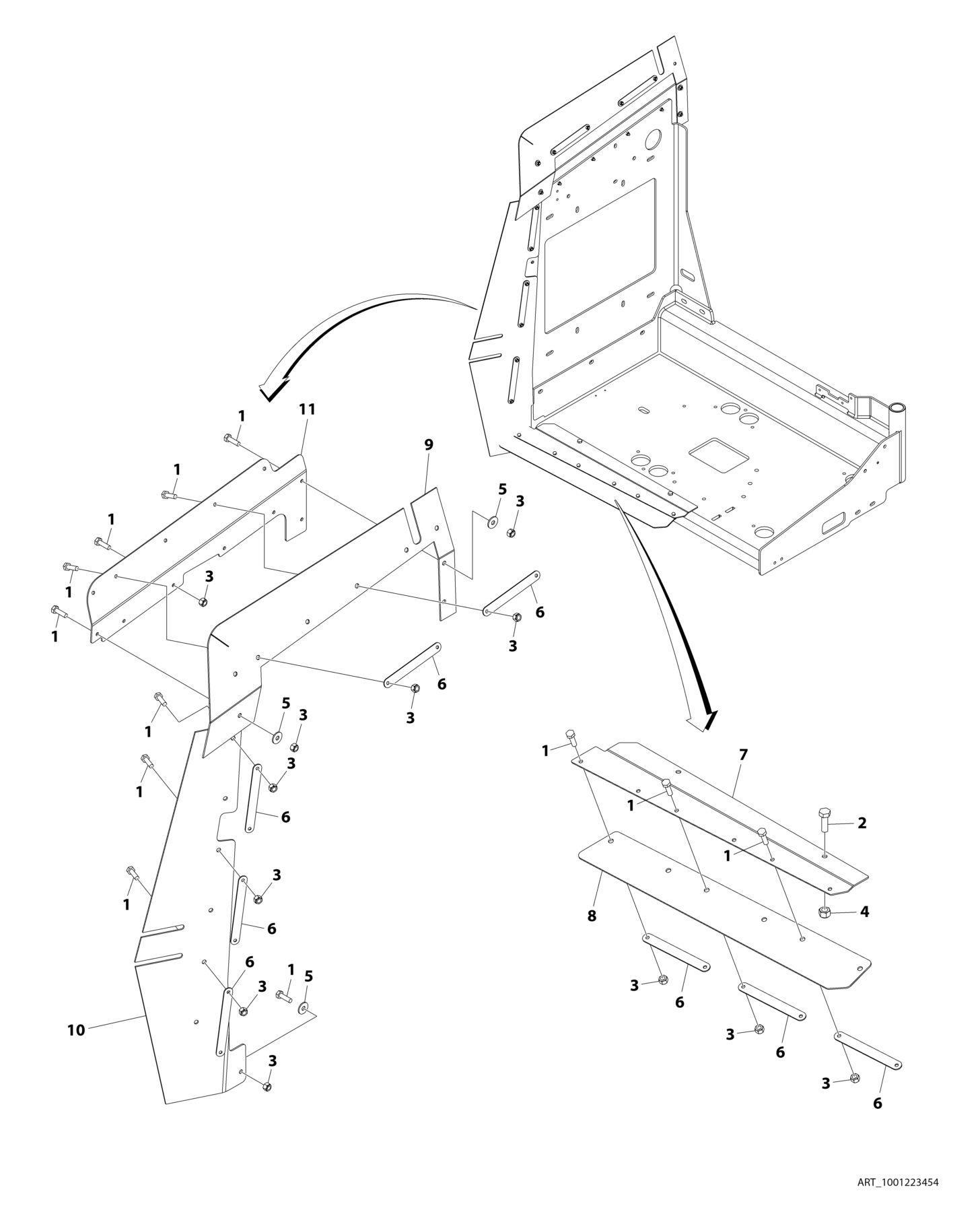

FIGURE 3-39. ENGINE BAFFLE INSTALLATION - STEEL HOODS

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

by www.heydownloads.com

FIGURE 5-27. SOFT TOUCH INSTALLATION - 6FT (1.83M) FALL ARREST PLATFORM (OPTIONAL

FIGURE 3-39. ENGINE BAFFLE INSTALLATION - STEEL HOODS

ITEM PART NUMBER QTY

DESCRIPTION

1001223454 Ref STEEL HOOD ENGINE BAFFLE INSTALLATION 1 0760610 25 Bolt M6 x 20 2 0760812 2 Bolt M8 x 25 3 3290605 25 Nut M6 x 1 4 3290805 2 Nut M8 x 1.25 5 4811702 5 Washer M6 6 1001167164 8 Plate, Support 7 1001170663 1 Bracket 8 1001170664 1 Seal 9 1001223309 1 Seal 10 1001223310 1 Seal 11 1001223328 1 Bracket

FIGURE 3-39. ENGINE BAFFLE INSTALLATION - STEEL HOODS
