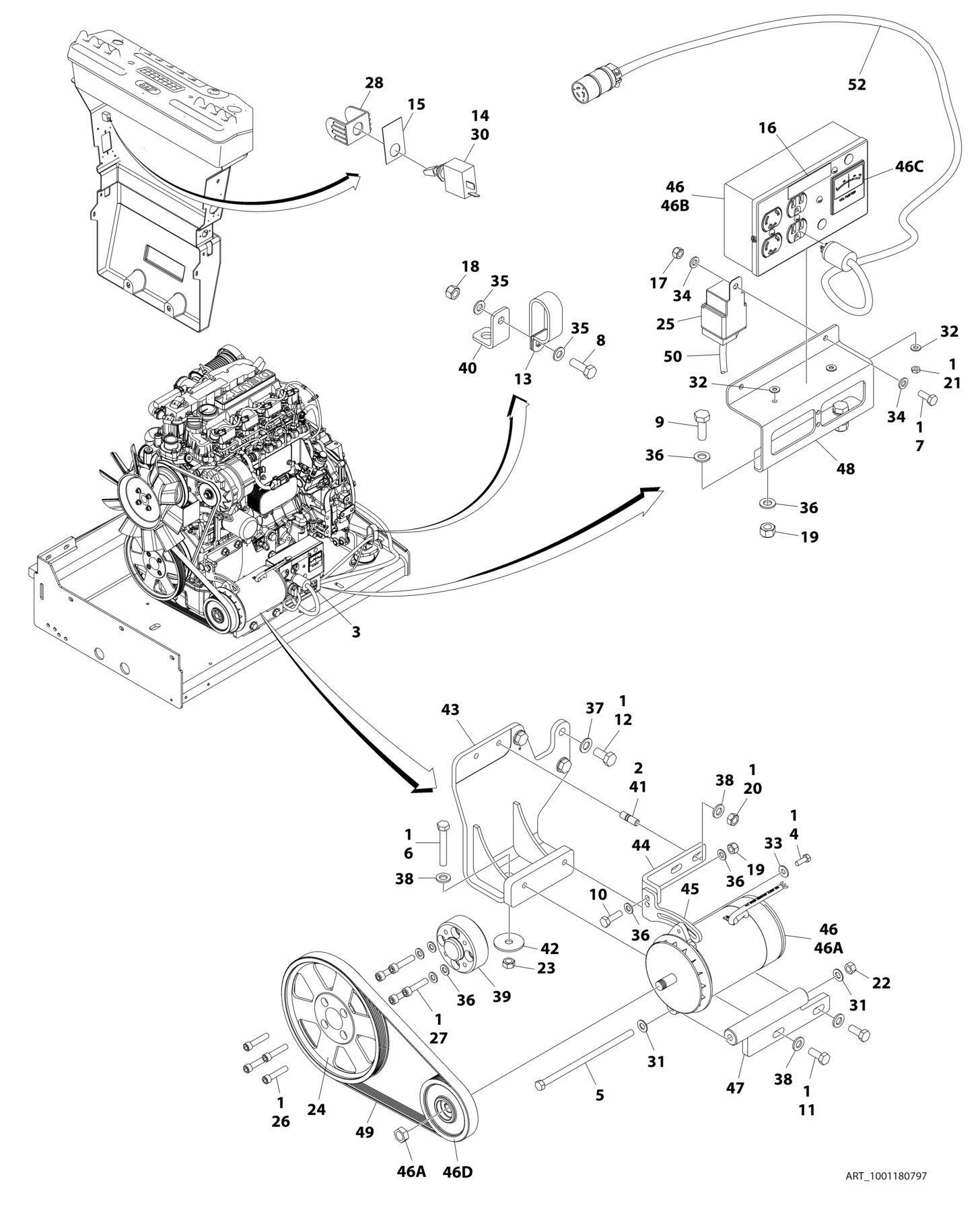

FIGURE 3-43. GENERATOR INSTALLATION - 2500W/60HZ (DEUTZ D2.9L4 ENGINE
ITEM PART NUMBER QTY
DESCRIPTION
1001180797 Ref GENERATOR INSTALLATION - 2500W/60HZ (DEUTZ D2.9L4 ENGINE) 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0100048 AR Grease, Dielectric 4 0641507 1 Bolt 5/16 x 7/8 5 0641772 1 Bolt 7/16 x 9 6 0711224 1 Bolt M12 x 80 Grade 10.9 7 0760608 1 Bolt M6 x 16 8 0760812 1 Bolt M8 x 25 9 0761014 2 Bolt M10 x 30 10 0761015 1 Bolt M10 x 35 11 0761214 2 Bolt M12 x 30 12 0771414 3 Bolt M14 x 30 Grade 10.9 13 1321716 1 Clamp 14 2820031 AR Heat Shrink 15 See Note 1 Nameplate (Note: Not Available for Purchase) 16 3251243 1 Nameplate 120V-60Hz 17 3290605 1 Nut M6 18 3290805 1 Nut M8 19 3291005 3 Nut M10 20 3291201 2 Nut M12 21 3311001 2 Nut #10 22 3311705 1 Nut 7/16 23 3331211 1 Nut M12 24 3580320 1 Pulley 25 3740080 1 Relay 26 3931628 4 Capscrew 3/8 x 1-3/4 27 4032014 4 Bolt M10 x 50 28 4060802 1 Guard, Switch 29 4240099 AR Tie-Strap (Not Shown) 30 4360336 1 Switch, Toggle 31 4711700 2 Washer 7/16 32 4751000 4 Washer #10 33 4751500 1 Washer 5/16 34 4811700 2 Washer M6 35 4811900 2 Washer M8 36 4812000 AR Washer M10 37 4812200 3 Washer M14 38 5241200 5 Washer M12 Hardened 39 1001135679 1 Adapter 40 1001148641 1 Bracket 41 1001155041 2 Stud 42 1001168018 1 Washer, Snubbing 43 1001168207 1 Support 44 1001179836 1 Mount, Upper Generator 45 1001179837 1 Arm Adjustment 46 1001180001 1 Generator 46A 7026199 1 Armature with Slip Rings 46A 7012513 3 Cap, Brush Holder
REV
E
ITEM PART NUMBER QTY DESCRIPTION
46A 7020108 4 Brush 46A 7020109 4 Holder, Brush 46A 7012514 1 Fan 46A 7020110 1 Bell, Front 46A 7020111 1 Bell, Rear 46A 7020190 1 Bearing 46B 7019680 1 Box, Control 46B 4460190 1 Receptacle, Standard 46B 4460027 1 Receptacle, Twistlock 46B 4360542 1 Breaker, Circuit 46B 3520028 1 Plug, Hole 46B 4460961 1 Connector - 4 Position 46B 4460705 4 Pin, Male 46B 4460321 1 Connector - 4 Position (Note: Mate to p/n 4460961 Purchase Separately) 46B 4460268 3 Socket, Female (Note: Mate to p/n 4460705 Purchase Separately) 46C 2420203 1 Voltmeter 46D 1001179893 1 Pulley 46D 7027887 1 Key, Woodruff 47 1001181243 1 Mount, Lower Generator 48 1001183477 1 Support 49 1001148138 1 Belt 50 1001187522 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 51 1001188731 1 Wiring Diagram (Not Shown) 51 4922641 1 Harness, On/Off Switch (Not Shown - Located at Platform) 52 1001182296 1 Harness, Inverter 52 1060494 10 ft/3.5m Cable, Electrical - 12/3 52 4460134 1 Receptacle, Female 52 4460138 1 Plug, Male
