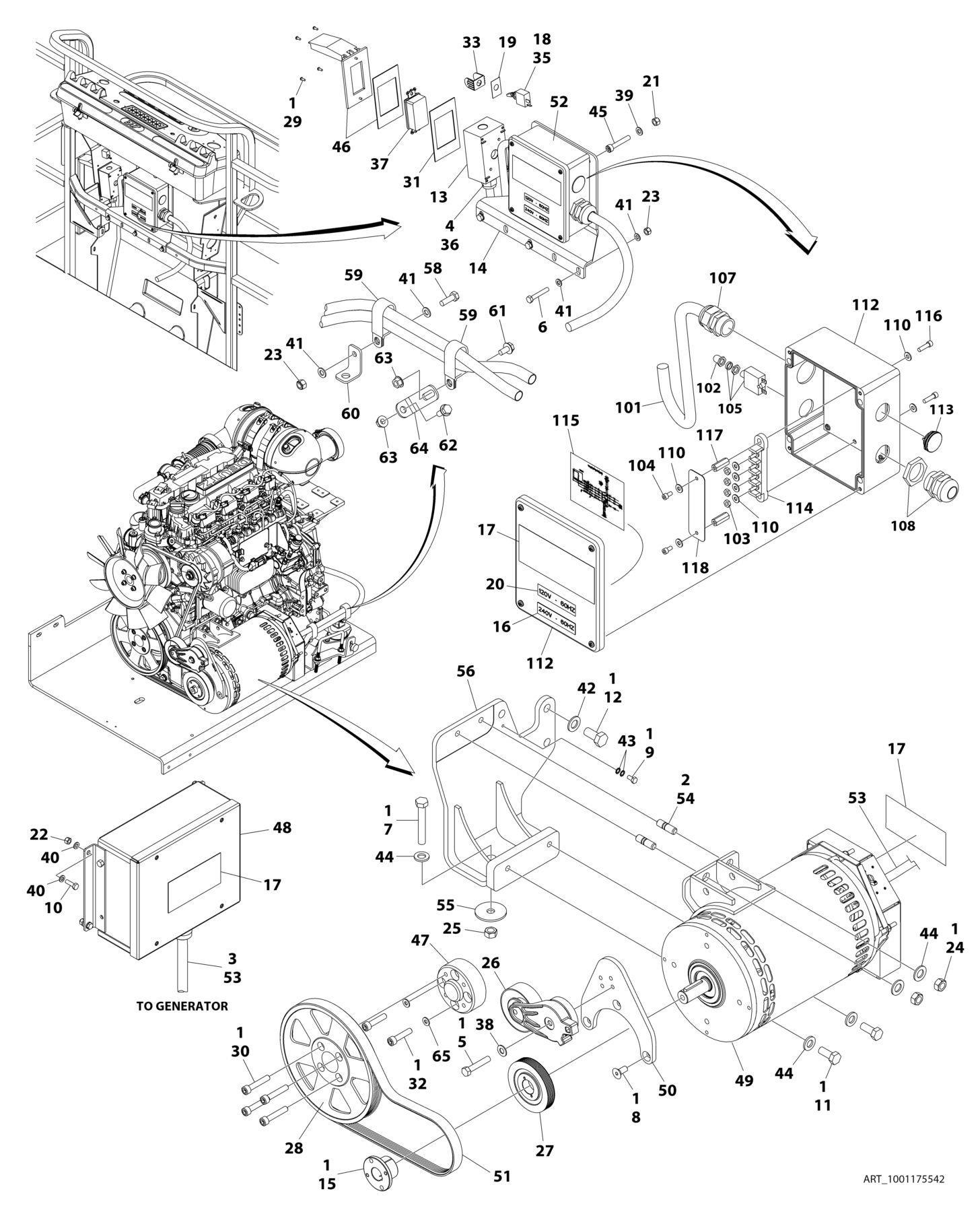

FIGURE 3-47. GENERATOR INSTALLATION - 4000W/60HZ (DEUTZ D2.9L4 ENGINE
ITEM PART NUMBER QTY
DESCRIPTION
1001175542 Ref GENERATOR INSTALLATION - 4000W/60HZ (DEUTZ D2.9L4 ENGINE) 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0100048 AR Grease, Dielectric 4 0100079 AR Sealant 5 0641616 1 Bolt 3/8 x 2 6 0700818 3 Bolt M8 x 50 7 0711224 1 Bolt M12 x 80 Grade 10.9 8 0741607 3 Screw 3/8 x 7/8 9 0760606 1 Bolt M6 x 12 10 0760610 4 Bolt M6 x 20 11 0761212 2 Bolt M12 x 25 12 0771414 3 Bolt M14 x 30 Grade 10.9 13 0860038 1 Box, Switch 14 0902888 1 Bracket 15 0962520 1 Bushing 16 1705374 1 Decal - 240V-60Hz 17 1705387 3 Decal - Hazardous Voltage 18 2820031 AR Heat Shrink 19 See Note 1 Nameplate (Note: Not Available for Purchase) 20 3251243 1 Nameplate 120V-60Hz 21 3290505 4 Nut M5 22 3290605 4 Nut M6 23 3290805 4 Nut M8 24 3291201 2 Nut M12 25 3331211 1 Nut M12 26 3580317 1 Pulley 27 3580318 1 Pulley 28 3580320 1 Pulley 29 3910606 4 Screw #6 x 3/8 30 3931628 4 Capscrew 3/8 x 1-3/4 31 3960422 1 Gasket 32 4032014 4 Capscrew M10 x 50 33 4060802 1 Guard, Switch 34 4240099 AR Tie-Strap (Not Shown) 35 4360336 1 Switch, Toggle 36 4460071 1 Connector, Strain Relief 37 4460346 1 Receptacle 38 4711600 1 Washer 3/8 39 4811600 4 Washer M5 40 4811700 8 Washer M6 41 4811900 8 Washer M8 42 4812200 3 Washer M14 43 4871700 2 Washer M6 44 5241200 5 Washer M12 Hardened 45 1001104029 4 Screw M5 x 30 46 1001110873 1 Shield, Cover 47 1001135679 1 Adapter 48 1001138566 1 Box, Control
REV
I
ITEM PART NUMBER QTY DESCRIPTION
49 1001140346 1 Generator Assembly 49 70003709 1 Ring, Retaining (External) 49 70003708 1 Ring, Retaining (Internal) 49 70001966 1 Bearing 49 70004092 1 Endbell (Shaft End) 49 70004099 1 Key 49 70004676 1 Rotor 49 70004687 1 Stator 49 70004678 1 Endbell (Rear) 49 70004679 1 Cover, Endbell (Rear) 49 70004680 1 Enclosure, Wiring 49 70004685 1 Cover, Enclosure 49 70004682 1 Switch, Reset (Located on Enclosure Cover) 49 70004098 1 Connector, Strain Relief (Located on Enclosure Cover) 50 1001142643 1 Support 51 1001142646 1 Belt 52 1001152457 1 Generator Junction Box Assembly (See Items 101-118 for Breakdown) 53 1001152532 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 54 1001196382 2 Stud 55 1001168018 1 Washer, Snubbing 56 1001168207 1 Support 57 1001175631 1 Wiring Diagram (Not Shown) 57 4922641 1 Harness, On/Off Switch (Not Shown - Located at Platform) 58 0760812 1 Bolt M8 x 25 59 1321716 2 Clamp 60 1001148641 1 Bracket 61 5250808 1 Bolt M8 x 16 62 5250810 1 Bolt M8 x 20 63 5260800 2 Nut M8 64 1001223122 1 Support 65 4812000 4 Washer M10 1001152457 Ref GENERATOR JUNCTION BOX COMPONENTS 101 1001179154 2.5 ft/ 0.8m Cable, Electrical - 12/3 102 3300396 1 Cover, Breaker 103 3311001 4 Nut #10 104 3900300 2 Screw 105 4360070 1 Breaker, Circuit - 15Amp 107 4460425 1 Connector, Strain Relief (LH Side) 108 4460426 1 Connector, Strain Relief (RH Side) 110 4711000 8 Washer #10 112 1001152456 1 Box, Junction 113 1001152525 1 Plug 114 1001152530 1 Terminal, Block 115 1001153260 1 Decal - Wiring Diagram 116 3900267 2 Screw 117 1001158008 2 Stand-Off 118 1001158363 1 Cover, Terminal Block
