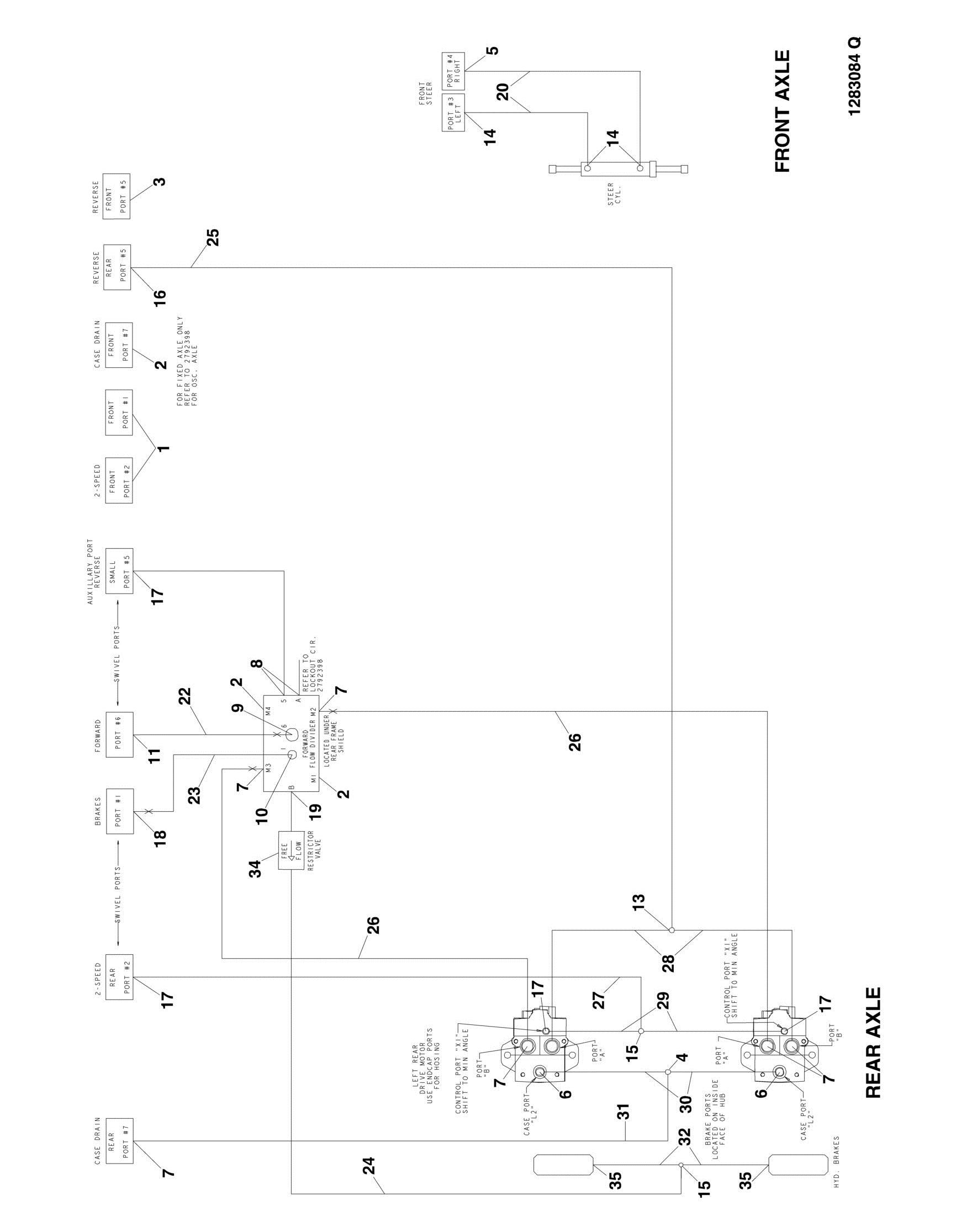

FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM - 2WD

FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM - 2WD

FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM - 2WD

ITEM PART NUMBER QTY

DESCRIPTION

2792385 Ref DRIVE HYDRAULIC DIAGRAM - 2WD 1283084 Ref DRIVE HYDRAULIC DIAGRAM - 2WD 1 2220237 2 Fitting, Plug 2 2220240 3 Fitting, Plug 3 2220242 1 Fitting, Plug 4 2220362 1 Fitting, Tee 5 2220371 1 Fitting, Straight 6 2220373 2 Fitting, Straight (Fittings moved to Pump Assembly) 7 2220375 AR Fitting, Straight 7 Ref Pump Assy without Fittings 7 Ref Pump Assy with Fittings 8 2220415 2 Fitting, Straight 9 2220435 1 Fitting, Straight 10 2220596 2 Fitting, Elbow 11 2220465 1 Fitting, Elbow 13 2220481 1 Fitting, Tee 14 2220501 3 Fitting, Elbow 15 2220504 2 Fitting, Tee 16 2220568 1 Fitting, Elbow 17 2220582 AR Fitting, Straight 17 Ref Pump Assy without Fittings 17 Ref Pump Assy with Fittings 18 2220600 1 Fitting, Straight 19 2221030 1 Fitting, Straight Only (Prior to SN 0300074316) 20 2752466 2 Hose 22 2753346 1 Hose 23 2752495 1 Hose 24 2752442 1 Hose 25 2753347 1 Hose 26 2753343 2 Hose 27 2752977 1 Hose 28 2753344 2 Hose 29 Ref Hose Options: 29 2753341 2 Hose (Prior to SN 0300088029) 29 2752908 2 Hose (SN 0300088029 through 0300096000) 30 Ref Hose Options: 30 2752492 2 Hose (Prior to SN 0300088029) 30 2752496 2 Hose (SN 0300088029 through 0300096000) 31 2752506 1 Hose 32 Ref Hose Options: 32 2753340 2 Hose (Prior to SN 0300088029) 32 2754229 2 Hose (SN 0300088029 through 0300096000) 34 Ref Valve, Restrictor Options: 34 4641076 1 Valve, Restrictor (.021) (Prior to SN 0300074316) 34 4641282 1 Valve, Restrictor (.020) (SN 0300074316 through 0300096000) 35 2220466 2 Fitting, Elbow
